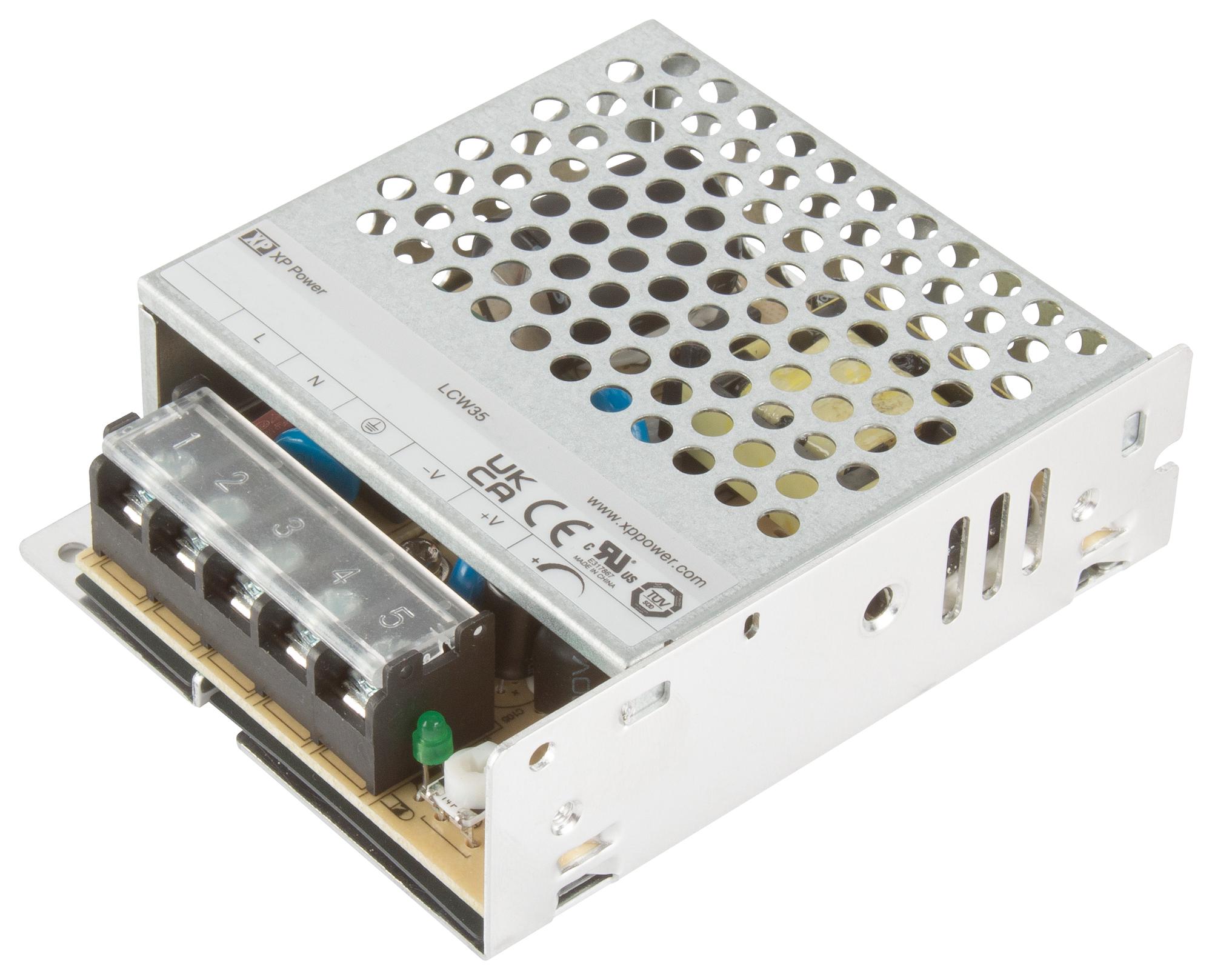

XP POWER LCW35US24 Power Supply Module
The LCW35 series regulated convection-cooled AC to DC power supplies deliver a reliable, efficient, and cost-effective solution for industrial electronics, household, and automation systems. With a wide input voltage of 85-305VAC, output voltage adjustment of ±10%, and an efficiency of up to 87%, these 35W power supplies feature comprehensive protections including short circuit, overcurrent, overvoltage, and overload. Built with an aluminum chassis and galvanized steel cover, they operate from -30°C to +70°C, making them suitable for diverse environments. Ideal for security, lighting control, and smart home applications, they comply with UL, CE, and UKCA standards, ensuring robust safety and electromagnetic compliance.
XP POWER LCW35US24 Power Supply Module Specifications:
- Input Voltage Range: 85-305VAC
- Output Power: 35W
- Output Voltage: 5.0V to 24VDC with ±10% adjustment
- Efficiency: up to 87%
- Operating Temperature: -30°C to +70°C
- Dimensions: 99mm x 82mm x 30mm
- Switching Frequency: 65kHz
- Protections: Short circuit, overvoltage, overload, overcurrent
- Isolation: Input to Output 4000V, Input to Ground 2000V, Output to Ground 1250V
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
- Housing: Aluminum chassis, galvanized steel cover
- Additional Features: Connector cover, optional conformal coating, 3-year warranty
Buy the Buy Reliable Power Supplies Part Number LCW35US24 Online
Upgrade your system with the SeriesLCW35 24VDC power supply, designed for durability and efficiency. Featuring adjustable output, high protection standards, and broad temperature range, it’s perfect for industrial, household, and automation applications. With certifications including UL, CE, and UKCA, this 35W power supply guarantees compliance and safety. Its robust construction and advanced features ensure reliable power delivery in challenging environments. Purchase online now for quick delivery, competitive pricing, and peace of mind with a 3-year warranty. Invest in quality today!
Order your reliable SeriesLCW35 24VDC power supply today and ensure your industrial and household projects operate with dependable efficiency.
Frequently Asked Questions
Where can I buy XP POWER LCW35US24?
You can click on the BUY or RFQ button to purchase LCW35US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW35US24?
You can download the LCW35US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW35US24?
XP POWER
