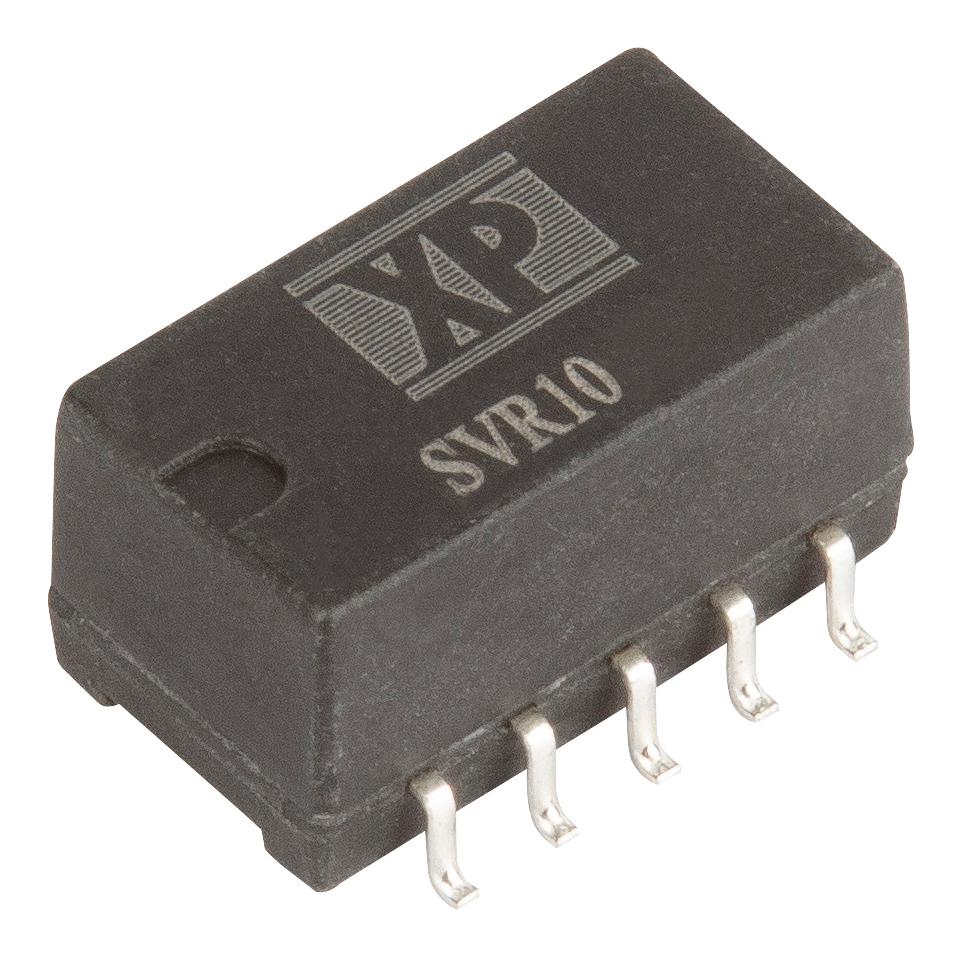

XP POWER SVR10S05 Switching Regulator
The SVR10 series is a high-efficiency, compact switching regulator designed for versatile power management applications. With an input voltage range of 4.75 to 36V and adjustable output voltages between 1.5V and 12V, it offers up to 92% efficiency and features like remote on/off control, short circuit protection, and low standby current. Its small size (0.6 x 0.335 x 0.315 inches) meets industrial standards for embedded computing, instrumentation, and process control, ensuring reliable performance with a MTBF exceeding 2 million hours.
XP POWER SVR10S05 Switching Regulator Specifications:
- Input Voltage Range: 4.75-36V
- Output Voltage Adjustment: 1.5V to 12V
- Output Current: 810mA at 12V
- Efficiency: Up to 92%
- Size: 0.6 x 0.335 x 0.315 inches (15.24 x 8.5 x 8.25mm)
- Temperature Range: -40°C to +85°C
- Short Circuit Protection: Yes
- Remote On/Off Control: Yes
- Case Material: Non-conductive black plastic UL94V-0
- Operating Frequency: 520 kHz
- MTBF: >2 million hours
- Weight: approximately 1.7 grams
- Certifications: Meets applicable safety and emission standards
- Input Ripple: 20 mA pk-pk
- Surge Voltage: Up to 5.5V for 100ms
Buy the XP Power Series SVR10 High-Efficiency Switching Regulator: SVR10S05
Experience reliable power regulation with the XP Power Series SVR10S05 switching regulator. Featuring adjustable output from 1.5V to 12V, this compact module offers high efficiency up to 92%, wide input voltage range, remote on/off control, and robust short circuit protection. Its small size ensures easy integration into embedded computing, instrumentation, and process control systems. Built to meet strict safety standards, the SVR10 series ensures continuous, stable performance for demanding industrial and electronic applications. Order online today for fast delivery and peace of mind.
Get XP Power SVR10S05 today—designed for reliable power regulation in compact industrial systems.
Frequently Asked Questions
Where can I buy XP POWER SVR10S05?
You can click on the BUY or RFQ button to purchase SVR10S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SVR10S05?
You can download the SVR10S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SVR10S05?
XP POWER
