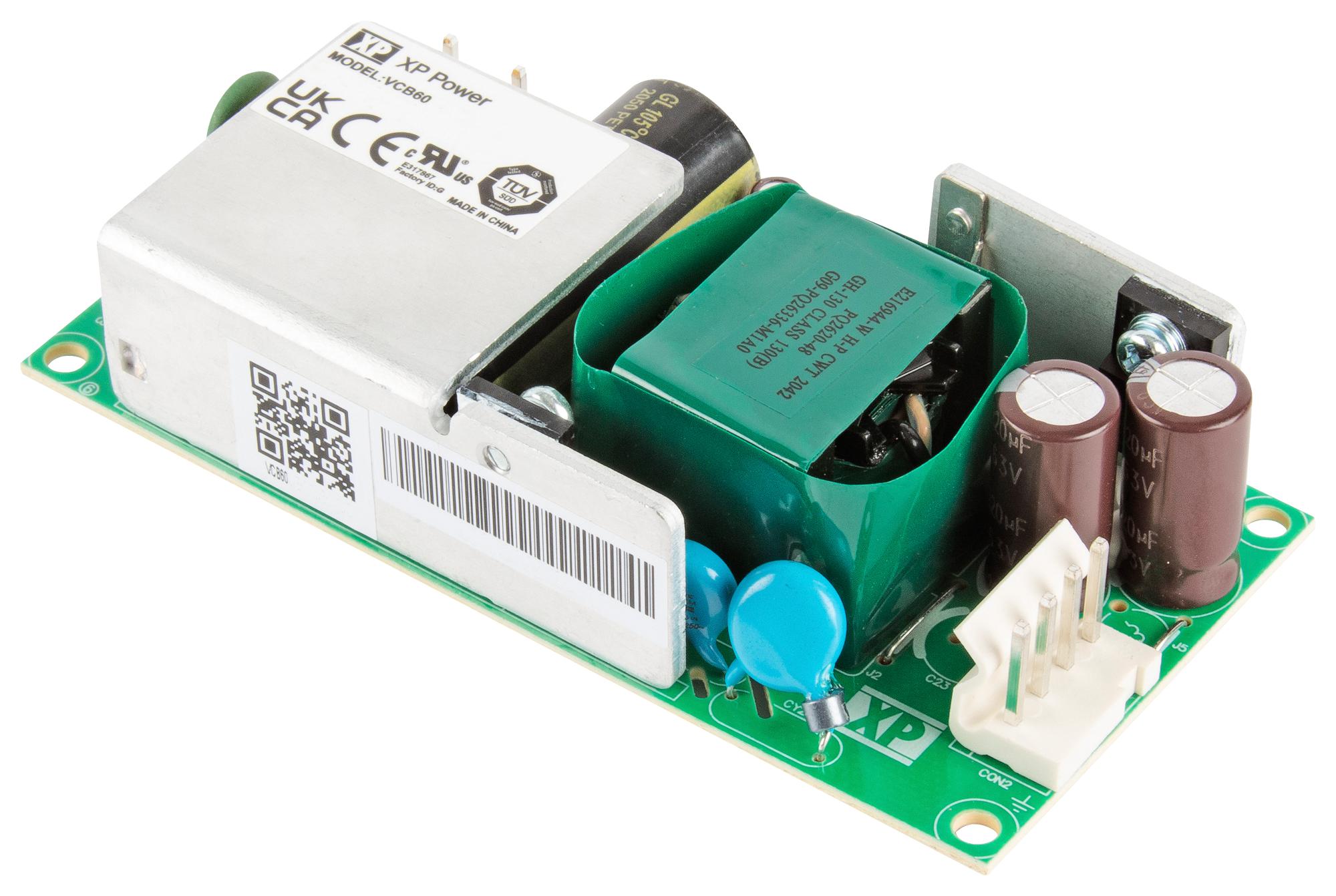

XP POWER VCB60US48 Power Supply
The VCB60 series consists of 60W open-frame AC-DC power supplies designed for low-cost applications across information technology equipment, industrial electronics, domestic use, IoT, and robotics. These units feature a compact 4x2 inch footprint with just 1.01 inches height, suitable for space-constrained environments. They operate efficiently at up to 90% and full load up to 50°C, with a temperature range of -10°C to +60°C. Supports wide input voltage 90-305VAC, and includes protections against short circuits, overvoltage, and overload conditions, meeting key safety and EMC standards for industrial and domestic applications.
XP POWER VCB60US48 Power Supply Specifications:
- Power: 60W
- Input Voltage Range: 90-305VAC
- Input Frequency: 47-63Hz
- Output Voltage: 5VDC to 54VDC
- Output Current: up to 11A
- Efficiency: up to 90%
- Output Power Tolerance: 100%
- Dimensions: 4.00" x 2.00" x 1.01" (101.6 x 50.8 x 25.6mm)
- Operating Temperature: -10°C to +60°C, full load to +50°C
- Cooling Method: Convection cooled
- Isolation: Input to Output 3000 VAC
- Protection: Short circuit, overvoltage, overload
- Switching Frequency: 5kHz to 75kHz
- Standards: IEC60950-1, IEC62368-1, IEC60355, EN55035, EN55024, EN61000-4
- Certifications: UL, IEC, CB, CE, UKCA
- Weight: 0.29 lbs (130g)
Buy the Buy XP Power VCB60 Part Number VCB60US48 Online
Enhance your projects with the XP Power VCB60 series 60W open-frame power supply, offering a compact footprint, high efficiency up to 90%, and comprehensive safety standards. Its wide input voltage range of 90-305VAC makes it versatile and easy to install in various environments. Suitable for industrial, IoT, and home applications, it features protections against short circuits, overvoltage, and overload. Designed for reliable operation from -10°C to +60°C, this convection-cooled power supply ensures stable performance in space-constrained, cost-sensitive projects—order online today for quick delivery.
Order your XP Power VCB60US48 high-efficiency power supply today and ensure reliable performance for your industrial or domestic applications.
