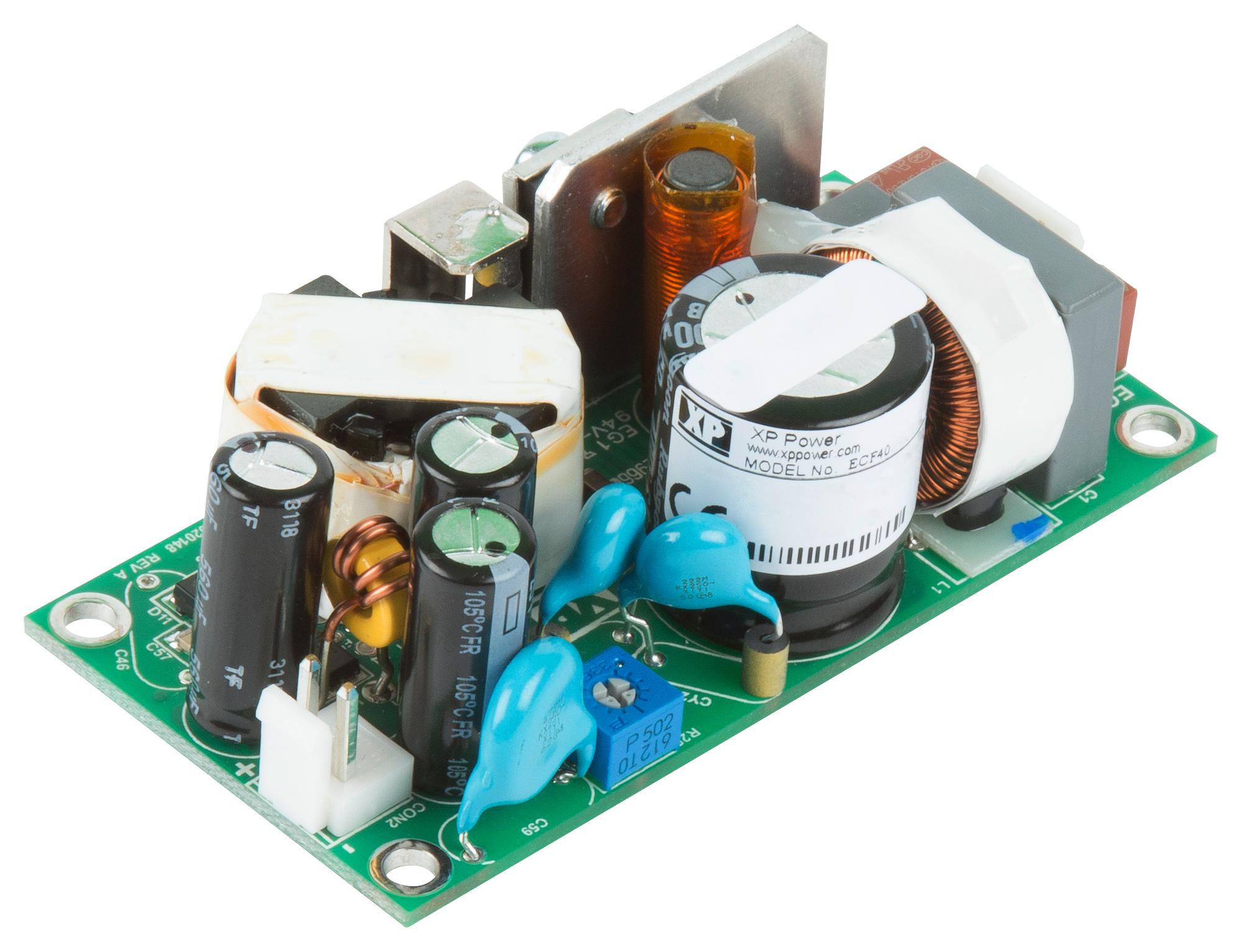

XP POWER ECF40US36 Power Supply
The ECF40 series is a compact 40W open-frame AC-DC power supply designed for a wide range of applications. It features a low-profile, 1.1-inch height and a footprint of just 1.5 by 3 inches, making it suitable for space-constrained equipment. The power supply is convection cooled and operates efficiently from 90V to 264VAC, with minimal de-rating down to 80VAC. It provides high efficiency, low no-load power consumption below 0.15W, and includes two AC line fuses for safety. Certified for medical and industrial (ITE) applications, it complies with safety standards such as IEC60950, UL60950-1, CSA 22.2 No.60950-1-11, EN60950-1, IEC60601-1, and related standards. This power supply is ideal for power management systems requiring reliability, safety, and space-saving design.
XP POWER ECF40US36 Power Supply Specifications:
- Power Output: 40W
- Input Voltage Range: 90-264VAC
- Operating Voltage: 80-264VAC with minimal de-rating
- Efficiency: Up to 90%
- No Load Power Consumption: Less than 0.15W
- Profile: 1.1 inches high
- Footprint: 1.5 x 3 inches
- Isolation: Input to Output 4000 VAC, Input to Ground 1500 VAC, Output to Ground 500 VAC
- Safety Standards: IEC60950-1, UL60950-1, CSA 22.2 No.60950-1-11, EN60950-1, IEC60601-1
- Certifications: Medical, ITE approvals
- Fuses: Two AC line fuses included
- Efficiency Measurement: At full load and 230 VAC
- Temperature Range: -25°C to +70°C with derating
- Protection: Overvoltage, Overload, Short circuit
- Operating Altitude: Up to 5000 m
- Dimensions: 1.5” x 3” x 1.1”
Buy the XP Power Series ECF40 40W AC-DC Power Supply: ECF40US36
Order the XP Power ECF40US36 today for reliable 40W power conversion in space-constrained medical and industrial equipment. Featuring high efficiency, low no-load power consumption, and comprehensive safety certifications, this power supply ensures dependable operation. Its compact footprint and low profile are ideal for tight installations, while safety approvals like IEC60601-1 and IEC60950-1 guarantee adherence to international standards. Designed for durability and performance, it is perfect for manufacturers seeking proven, space-efficient power solutions with excellent load regulation and protection features.
Get XP Power ECF40US36 today—built for precision, safety, and space-saving power delivery in medical and industrial applications.
Frequently Asked Questions
Where can I buy XP POWER ECF40US36?
You can click on the BUY or RFQ button to purchase ECF40US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECF40US36?
You can download the ECF40US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECF40US36?
XP POWER
