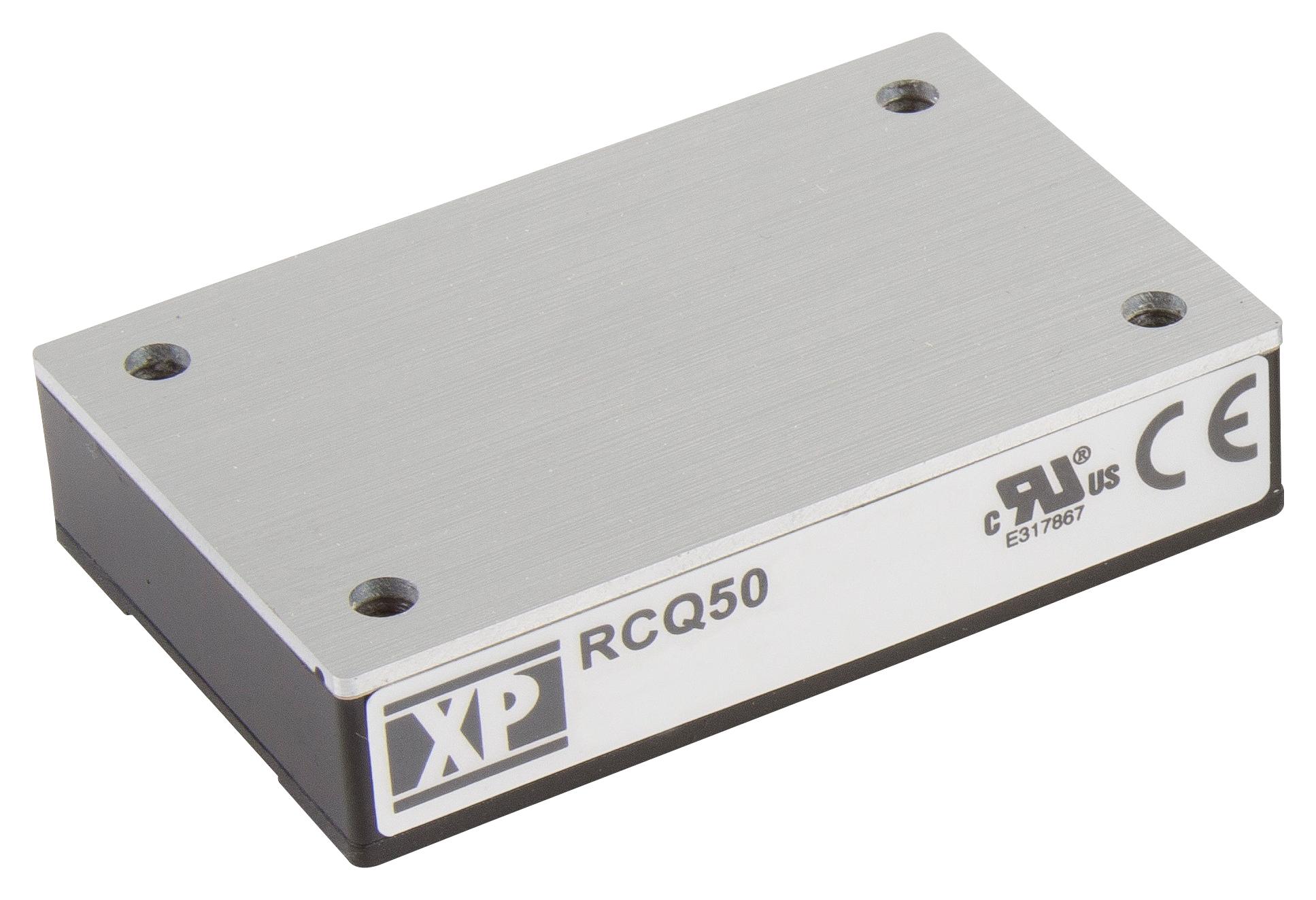

XP POWER RCQ50110S15 railway power converter
The RCQ50 and RCQ75 series converters are engineered for railway and industrial applications, complying with standards such as EN50121-3-2 and IEC60571. The RCQ50 offers up to 50 Watts of output power, while the RCQ75 provides up to 75 Watts. Both include two wide input voltage ranges: 43V to 101V DC for 72VDC nominal models, and 66V to 160V DC for 110VDC nominal models. They feature eight output configurations in total, with voltages of 5V, 12V, 15V, and 24V DC, with a ±10% voltage trim adjustment, remote On/Off, and remote sense functionalities. The units provide basic isolation of 3000VAC input-to-output and 1500V DC output-to-case, with safety approvals including IEC60571, EN50155, IEC, and UL 60950-1. Conducted emissions meet Class A limits per EN55022 with external filtering. These converters are ideal for railway power management and industrial applications, offering reliable, regulated single output power with baseplate cooling, wide operating temperature range (-40°C to 105°C), and compliance with critical EMC and safety standards. They complement existing product ranges from 8W to 150W for comprehensive railway power solutions.
XP POWER RCQ50110S15 railway power converter Specifications:
- Output Power: Up to 50W (RCQ50), 75W (RCQ75)
- Input Range: 43-101V DC for 72V models; 66-160V DC for 110V models
- Output Voltages: 5V, 12V, 15V, 24V DC with ±10% trim
- Isolation: Input to Output 3000VAC, Output to Case 1500V DC
- Operating Temperature: -40°C to +105°C
- Efficiency: Up to 92%
- Dimensions: 2.28 x 1.45 x 0.50 inches (57.9 x 36.8 x 12.7 mm)
- Remote On/Off and Sense functions
- Compliance: EN50155, IEC60571, IEC, UL 60950-1
- Isolation Resistance: 10^9 Ω at 500V DC
- Cooling: Baseplate-cooled options available
- EMC: Meets EN55022 Class A
Buy the XP Power RCQ50110S15 – Reliable Railway Power Converter for Industrial Applications
Get the XP Power RCQ50110S15 railway power converter online today and enjoy a reliable, high-efficiency solution for industrial and transportation applications. Featuring wide input voltage ranges, multiple output voltages, remote control options, and robust safety standards, this converter guarantees optimal performance in harsh environments. With a compact size and baseplate cooling, it provides exceptional thermal management and durability. Ensure your projects remain compliant and secure with trusted power conversion technology—order now to experience fast, hassle-free online purchasing and fast delivery.
Order your XP Power RCQ50110S15 converter today and ensure dependable, regulated power supply for railway and industrial projects.
