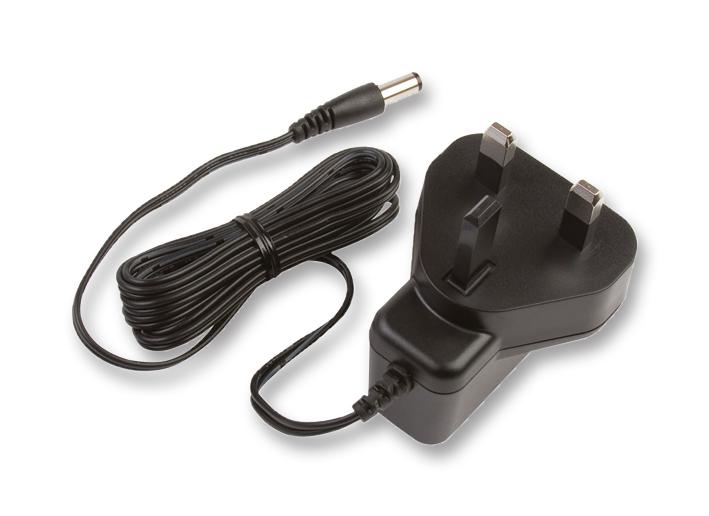

XP POWER VEL05US060UKJA Low Power Power Supply
The VELOS Series AC-DC power supplies offer a compact 5-watt design with energy efficiency Level VI compliance, ideal for low-power applications. Available with fixed mains connectors and multiple output options, including USB A, Mini USB B, Micro USB B, and standard DC jack connectors, these units feature universal input voltages from 90 VAC to 264 VAC, ensuring broad compatibility. Their high efficiency, low idle power consumption, and robust design make them suitable for cost-sensitive electronic devices, with safety certifications and excellent regulation, ripple, and noise performance for reliable operation in various environments.
XP POWER VEL05US060UKJA Low Power Power Supply Specifications:
- Input Voltage: 90 VAC to 264 VAC, 50/60 Hz
- Output Voltages: 5.0V, 6.0V, 9.0V, 12.0V
- Output Current: Up to 1000 mA depending on model
- Efficiency: Up to 78%
- No Load Power Consumption: <0.4 W
- Total Regulation: 5%
- Ripple & Noise: 200 mV pk-pk at 20 MHz bandwidth
- Start Up Delay: 350 ms
- Hold Up Time: 8 ms
- Operating Temperature: 0°C to 50°C, derates above 50°C
- Isolation: Input to Output, 1500 Vrms
- Protection: Continuous short circuit, auto recovery
- Certifications: UL, cUL, TUV, Energy Level VI compliant
- Dimensions: Approx. 1.69 x 0.67 x 1.435 inches (43 x 17 x 36.5 mm)
Buy the XP Power Series VELOS Power Supply: VEL05US060UKJA
Purchase the XP Power VELOS series power supply online today for your low-power electronic projects. These compact, energy-efficient units feature universal input, multiple output options, and industry-leading safety certifications. Perfect for cost-sensitive applications, they offer reliable regulation, ripple, and noise performance, ensuring stable operation in diverse environments. With easy ordering and quick delivery, enhance your device’s performance and efficiency by choosing these dependable power supplies designed for durability and performance.
Get XP Power VELOS series power supply today—built for reliable low-power applications with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy XP POWER VEL05US060UKJA?
You can click on the BUY or RFQ button to purchase VEL05US060UKJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL05US060UKJA?
You can download the VEL05US060UKJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL05US060UKJA?
XP POWER
