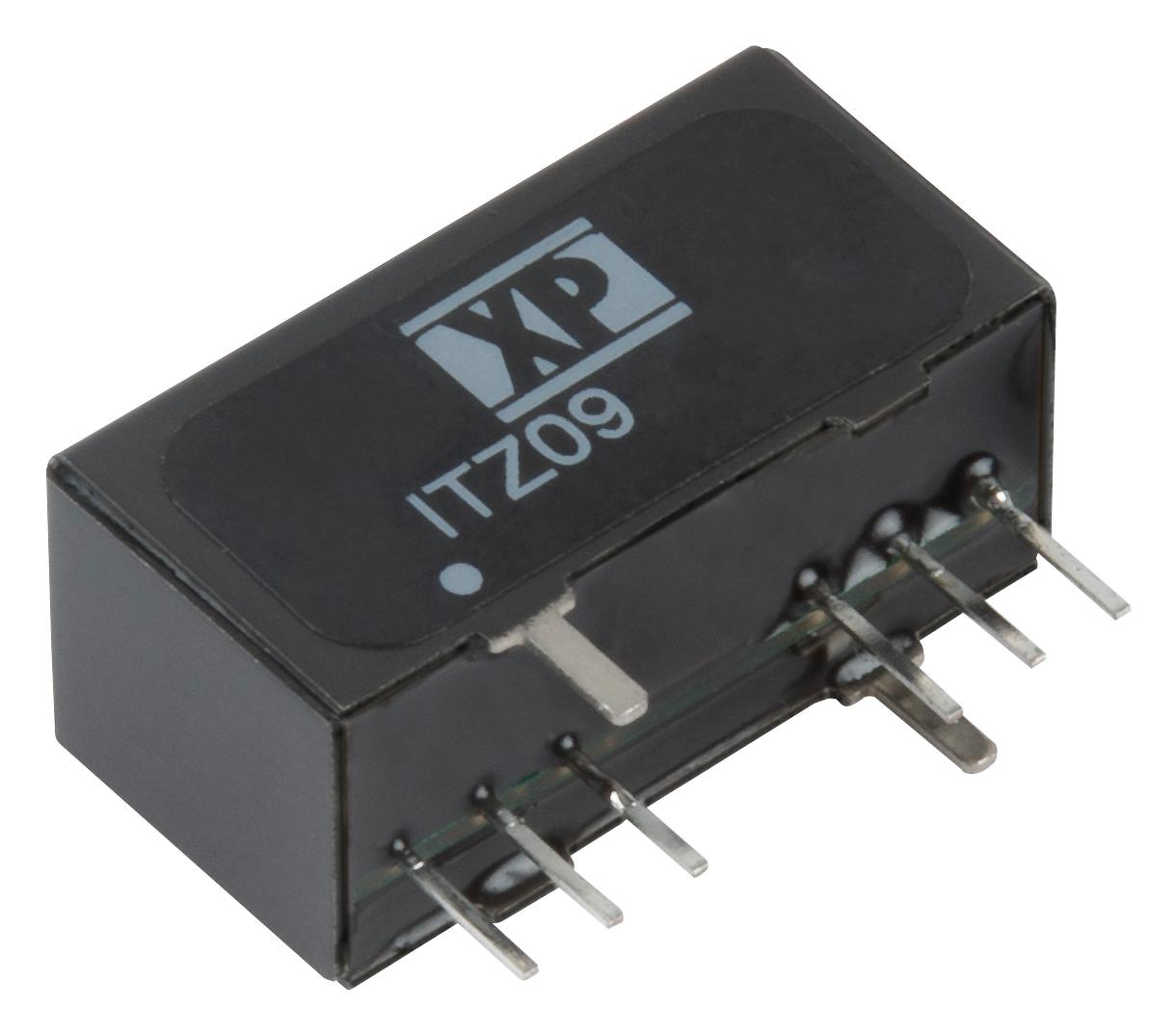

XP POWER ITZ0924S15 DC-DC Converter
The ITZ series features an ultra-wide 4:1 input voltage range suitable for 12V, 24V, and 48VDC systems. It offers six single output models from 3.3V to 24VDC and three dual output models with ±5V, ±12V, or ±15VDC, totaling 18 options. These fully regulated converters maintain output stability within ±0.2% for line variations and ±0.5% for load changes from 0 to 100% (dual outputs ±1%), regardless of minimum load. They provide 1500VDC isolation, include remote on/off control, and ensure protection against input surges, overloads, and shorts. Designed for convection cooling, they operate reliably without heat sinks across -40°C to 85°C, with derating at higher temperatures. In a compact SIP8 package, they are the smallest 9W converters, ideal for power management and DC applications.
XP POWER ITZ0924S15 DC-DC Converter Specifications:
- Input Voltage Range: 18-75VDC (4:1 range), 24V nominal; Surge: 700VDC for 100ms (48V models); Input Ripple: 20-40mA pk-pk; Filtering with 12pH inductor and 47pF capacitor
- Output Voltage Accuracy: ±0.2% line regulation, ±0.5% load regulation; Output Power: 9W; Voltage Options: 3.3V, 5V, 12V, 15V, 24V; Dual options with ±5V, ±12V, or ±15V
- Isolation Voltage: 1500VDC; Efficiency: 88%; Operating Temperature: -40°C to 85°C; Derating at higher temperatures; Storage Temp: -55°C to +125°C
- Control: Remote On/Off pin, ON if open, OFF with 2.4mA current; Transient Response: within 2% in 2ms; Ripple & Noise: 75mV pk-pk; Max Case Temp: 100°C
- Certifications: Class A conducted emissions; Mechanical: SIP8 package, dimensions approximately 0.86 x 0.42 x 0.44
Buy the XP Power ITZ Series – Reliable DC-DC Converter for Industrial Applications
Enhance your power systems with the XP Power ITZ series DC-DC converters, offering ultra-wide input ranges, 9W capacity, and fully regulated outputs. Designed in a compact SIP8 package, these converters feature 1500VDC isolation, remote on/off control, and high efficiency of 88%. Suitable for industrial and automation applications, they operate reliably from -40°C to 85°C without external heatsinks. With protections against surges, shorts, and overloads, these converters ensure stable power delivery, making them ideal for demanding environments. Buy online today for dependable, space-saving power solutions.
Order your XP Power ITZ series DC-DC converter today and ensure efficient, compact power management for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ITZ0924S15?
You can click on the BUY or RFQ button to purchase ITZ0924S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITZ0924S15?
You can download the ITZ0924S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITZ0924S15?
XP POWER
