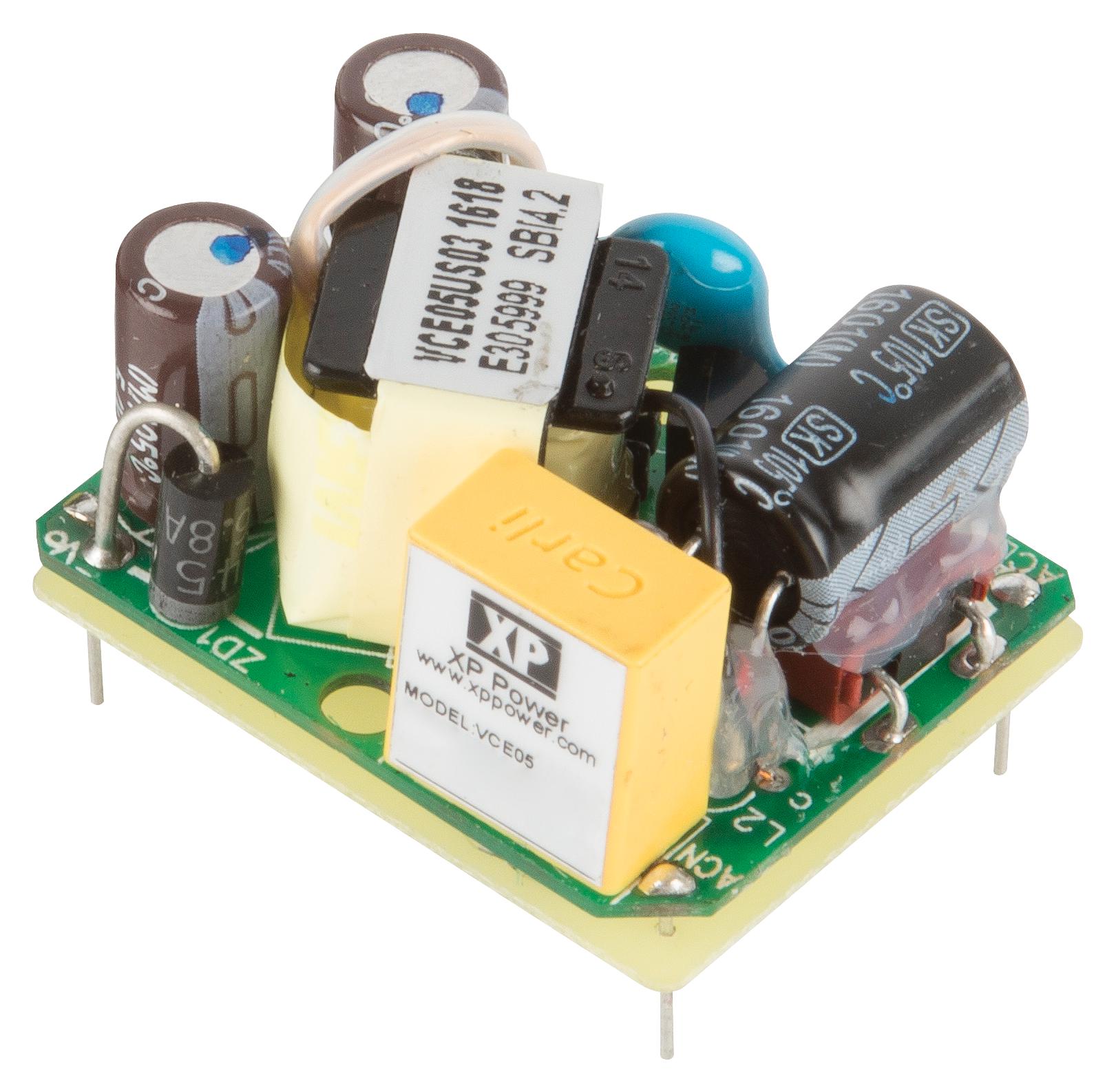

XP POWER VCE05US09P Industrial Power Supply
The VCE05 series consists of open frame and encapsulated AC-DC power supplies with a single output, designed for industrial and information technology applications. These compact power supplies feature options for open frame or PCB-mounted encapsulation, with safety approvals adhering to worldwide standards and compliance with class B conducted and radiated emission limits. They offer a peak load capability of 130% for 30 seconds, and have a low no-load input power consumption of less than 0.3W. Operating within a temperature range from -25°C to 70°C, these power supplies are suitable for various industrial power management applications, providing outputs from 3.3V up to 48V in a small form factor measuring approximately 33mm x 28mm x 19mm.
XP POWER VCE05US09P Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 VAC
- Efficiency: 78%
- Output Power: 5W
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Dimensions: approximately 33mm x 28mm x 19mm
- Operating Temperature: -25°C to +70°C
- Input No Load Power: <0.3W
- Peak Load Capability: 130% for 30 seconds
- Safety Compliance: EN60950, UL60950, IEC60950
- EMC Compliance: EN55022 Level B, EN61000-3-2, EN61000-3-3
- Isolation Voltage: 3000 V
- Operating Altitude: 3048 meters
- Cooling Method: Convection-cooled
- Vibration and Shock Resistance: Meets IEC standards
Buy the XP Power Series AC-DC Power Supplies: VCE05US09P
Order the XP Power VCE05US09P online today to ensure reliable power delivery for your industrial and IT systems. These compact, highly efficient power supplies feature a single output with options for open frame or encapsulated mounting, meeting international safety standards. With a peak load capacity of 130%, low no-load power consumption under 0.3W, and operation from -25°C to 70°C, they are ideal for demanding environments. Seamlessly integrate these space-saving modules into your existing design for dependable, long-term power management.
Get XP Power VCE05US09P today—built for precision and long-lasting durability in industrial power applications.
