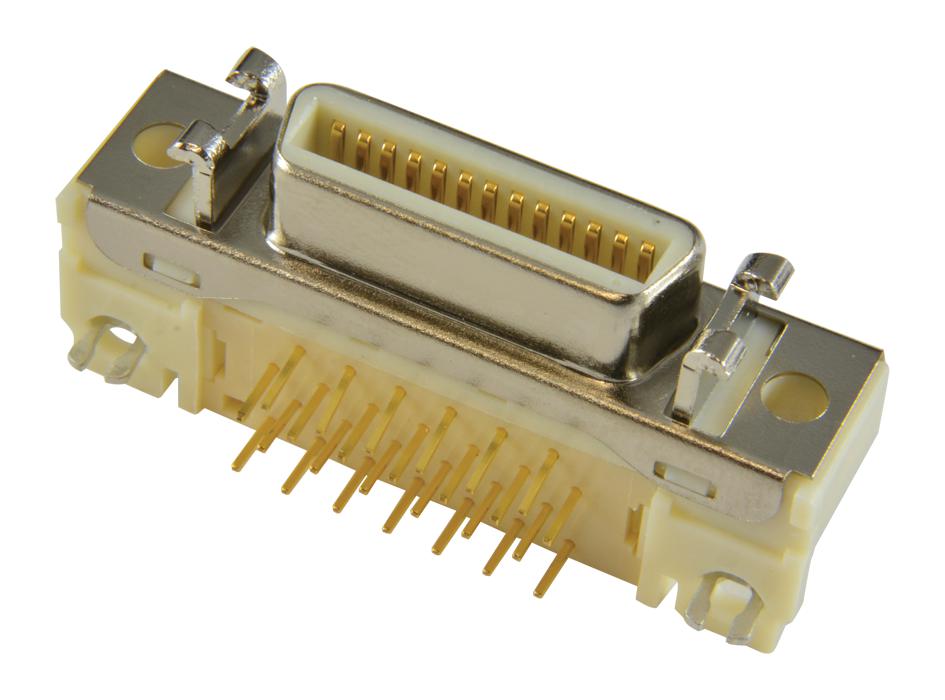

3M 1022655G3PC Shielded Receptacle Connector
A board-mounted, through-hole receptacle connector with a right-angle orientation, shielded for noise reduction, featuring durable molded construction and reliable electrical connectivity, suitable for applications requiring secure connections with multiple contact options ranging from 14 to 68 positions, compliant with UL 94V-0 flammability standards, and rated for temperatures from -55°C to +105°C. The connector includes gold-plated contacts over nickel, ground lock retention, interface latch design for stability, and compatibility with surface-mount insulators. Ideal for electronic systems demanding high reliability and robust performance.
3M 1022655G3PC Shielded Receptacle Connector Specifications:
- Insulation Material: Glass Reinforced Polyester (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Gold Flash over Nickel
- Ground Lock Material: Steel with Nickel Plating
- Temperature Rating: -55°C to +105°C
- Current Rating: 1A
- Insulation Resistance: >5 x 108Ω at 500 V
- Withstanding Voltage: 500 Vpms for 1 Minute
- Process Rating: 260°C (per J-STD-020C)
- Connector Size: Right angle through-hole, shielded design
- Compatible contact sizes: 14, 20, 26, 36, 40, 50, 68
- Panel Mount Thread Sizes: M2.5 or #4-40 depending on position
- Panel Thickness: Max .079 inches (2.00 mm)
- Certification: UL Listed (File No. E68080)
Buy the Buy 3M Shielded Receptacle Part Number 1022655G3PC Online
Discover the high-quality 3M shielded receptacle connector, designed for durability and secure connections in various electronic applications. This right-angle board-mounted connector features multiple contact options from 14 to 68 positions, compliant with UL standards, and rated for temperatures from -55°C to +105°C. Its molded construction ensures durability while the gold-over-nickel plating guarantees excellent conductivity. Ideal for engineers seeking reliable, high-performance interconnect solutions that simplify assembly and ensure long-term stability. Order online today for fast delivery.
Buy 3M 1022655G3PC shielded receptacle now and experience robust performance and reliable electrical connections in your electronic systems.
Frequently Asked Questions
Where can I buy 3M 1022655G3PC?
You can click on the BUY or RFQ button to purchase 1022655G3PC from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 1022655G3PC?
You can download the 1022655G3PC datasheet or visit the 3M website for support.
Who is the manufacturer of 1022655G3PC?
3M
