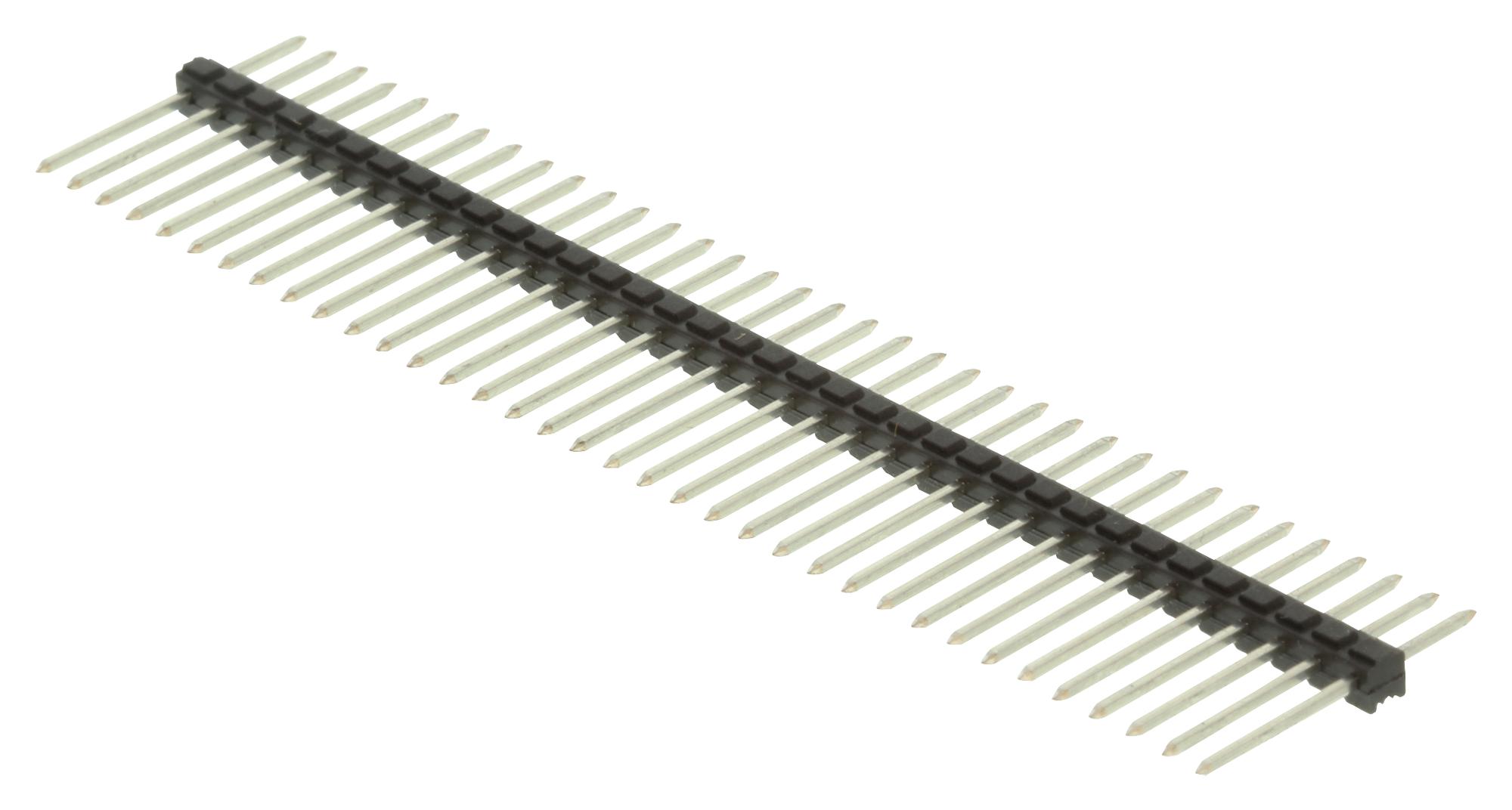

3M 9298340336RK Pin Strip Header
The 3M™ Pin Strip Header Single and Dual Row 929 Series offers reliable electronic interconnections with options for gold, matte tin, or tin-lead plating. Designed for high temperature packaging, it features solder tails, a board pin retention option, and insulation made of UL 94V-0 rated PBT or high temperature PCT plastics. The headers support wave or IR soldering processes with solder stand-offs and precise physical, electrical, and environmental specifications suitable for demanding industrial applications. Available in straight or right angle configurations, they ensure secure fitment and optimal electrical performance for complex electronic assemblies.
3M 9298340336RK Pin Strip Header Specifications:
- Insulation: Material: Glass Filled Polyester PBT or High Temperature PCT, Flammability: UL 94V-0, Color: Black
- Contact Material: Copper Alloy, Plating: Gold, Matte Tin, or Tin-Lead; Underplating: Nickel
- Electrical: Current Rating: 2.5A, Insulation Resistance: >5x 10^9Ω at 500V, Withstanding Voltage: 1500V AC at Sea Level
- Environmental: Temperature Rating: -40°C to +105°C, Process Rating: 260°C for PCT parts, Moisture Sensitivity Level: Level 1
- Physical: Mating Length: .100”, .235”/.318”, Tail Lengths vary per configuration, Support for both Straight and Right Angle mounting, Board pin retention available, Compatible with wave and IR soldering processes
Buy the Buy 3M Pin Strip Header 929 Series High-Temperature Interconnect Part Number 9298340336RK
Purchase the 3M™ Pin Strip Header 929 Series online today to ensure reliable and robust connections for your electronic projects. These headers support high temperature soldering like wave or IR processes, with optional pin retention and multiple plating choices for superior performance. Available in both straight and right angle configurations, they are designed for demanding industrial applications, ensuring secure connections and longevity. Experience quick online ordering and improve your manufacturing efficiency with trusted, high-quality interconnect components.
Order your 3M 929 Series pin strip headers today and enhance your electronic assemblies with dependable high-temperature interconnect solutions.
Frequently Asked Questions
Where can I buy 3M 9298340336RK?
You can click on the BUY or RFQ button to purchase 9298340336RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298340336RK?
You can download the 9298340336RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9298340336RK?
3M
