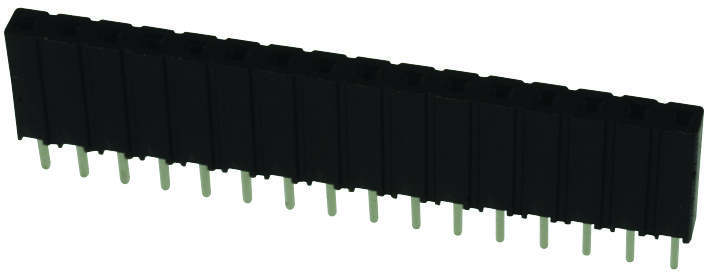

3M 9298500105RA Electronic Socket
The 3M Boardmount Socket from the 929 Series features .100" and .100" x .100" straight solder tails designed for reliable electrical connections. Constructed with a glass-filled polyester insulator that is UL 94V-0 rated and black in color, this socket offers a current rating of 2 amps per line and insulation resistance exceeding 5 x 10^10 ohms at 500V. Suitable for temperatures from -40°C to +105°C, it includes optional board retention features and is compatible with wave soldering processes, ensuring durable and secure mounting in electronic assemblies.
3M 9298500105RA Electronic Socket Specifications:
- Material: Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin (see ordering info)
- Underplating: Nickel (100 μ" or 2.54 μm)
- Electrical: Current Rating 2 amps per line, Insulation Resistance >5 x 10^10 ohms at 500 V, Withstanding Voltage 1,500 V at sea level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C), Max molded insulator temp 191°C
- Dimensions: 0.20[5.08], 0.30[7.62], 0.40[10.16], 0.50[12.70], 0.60[15.24], 0.70[17.78], 0.80[20.32], 0.90[22.86], 1.00[25.40], 1.10[27.94], 1.20[30.48], 1.30[33.02], 1.40[35.56], 1.50[38.10], 1.60[40.64], 1.70[43.18], 1.80[45.72], 1.90[48.26], 2.00[50.80], 2.10[53.34], 2.20[55.88], 2.30[58.42], 2.40[60.96], 2.50[63.50], 2.60[66.04], 2.70[68.58], 2.80[71.12], 2.90[73.66], 3.00[76.20], 3.10[78.74], 3.20[81.28], 3.30[83.82], 3.40[86.36], 3.50[88.90], 3.60[91.44], 4.00[101.60]
- Mounting Options: Recommended hole patterns with tolerances; optional board retention feature available
Buy the 3M Series 929 Boardmount Socket: 9298500105RA
Enhance your electronic projects with the precision and reliability of the 3M Series 929 Boardmount Socket featuring solder tails, high insulation resistance, and optional board retention. Designed for easy wave soldering and durable performance, these connectors support applications requiring temperatures from -40°C to +105°C and a maximum current of 2 amps per line. With robust construction, high corrosion resistance, and a variety of options to suit different mounting needs, they ensure secure and long-lasting electrical connections in your assemblies.
Order your 3M Series 929 Boardmount Socket today and ensure your electronic connections are secure and reliable with high-quality solder tail connectors.
Frequently Asked Questions
Where can I buy 3M 9298500105RA?
You can click on the BUY or RFQ button to purchase 9298500105RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298500105RA?
You can download the 9298500105RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298500105RA?
3M
