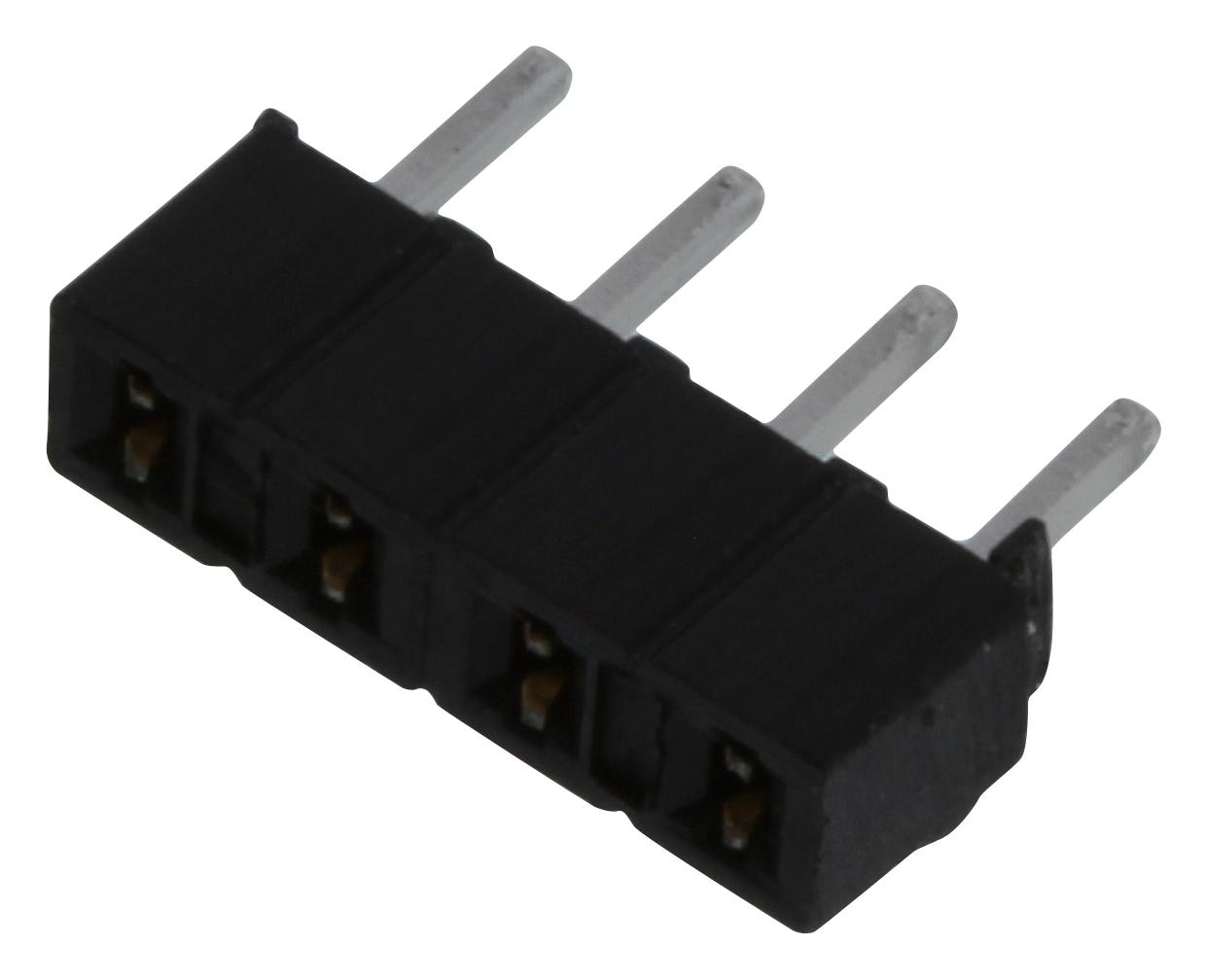

3M 9298700104RA PCB Socket
The 3M Boardmount Socket from the 929 Series offers a reliable and durable connection solution for electronic assemblies. Made from UL 94V-0 glass-filled polyester and copper alloy contacts with tin-plated finishes, it features solder tails for easy wave soldering and optional board retention. Designed for high performance in industrial applications, it supports current ratings up to 2 amps per line, with insulation resistance greater than 5 x 10^10 ohms at 500 V. It operates from -40°C to +105°C, ensuring stability across various environments. Compact and versatile, this socket is ideal for high-density PCB connections with reliable electrical performance.
3M 9298700104RA PCB Socket Specifications:
- Material: Glass Filled Polyester, Copper Alloy
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating: Tin Lead or Matte Tin (See ordering info)
- Current Rating: 2 amps maximum per line
- Insulation Resistance: >5 x 10^10 ohms at 500 V
- Withstanding Voltage: 1,500 V at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C), Max molded insulator temperature 191°C
- Physical Dimensions: 0.100" and 0.100" x 0.100" straight, solder tails, various contact quantities
- Certifications: UL Listed (File No.: E68080)
Buy the 3M 9298700104RA – Reliable PCB Socket for Industrial Applications
Purchase the reliable 3M PCB Socket from the 929 Series online today. Designed for high-density PCB connections, it features solder tails for wave soldering, optional board retention, and supports up to 2 amps per line. Made from UL 94V-0 glass-filled polyester and copper alloy contacts with tin or matte tin plating, it provides excellent electrical performance and temperature resistance from -40°C to +105°C. Perfect for industrial and electronic applications, this socket guarantees durability, safety, and easy installation in your manufacturing processes.
Order your 3M Series 929 Boardmount Socket today and ensure dependable, high-quality connections in your electronic projects.
Frequently Asked Questions
Where can I buy 3M 9298700104RA?
You can click on the BUY or RFQ button to purchase 9298700104RA from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9298700104RA?
You can download the 9298700104RA datasheet or visit the 3M website for support.
Who is the manufacturer of 9298700104RA?
3M
