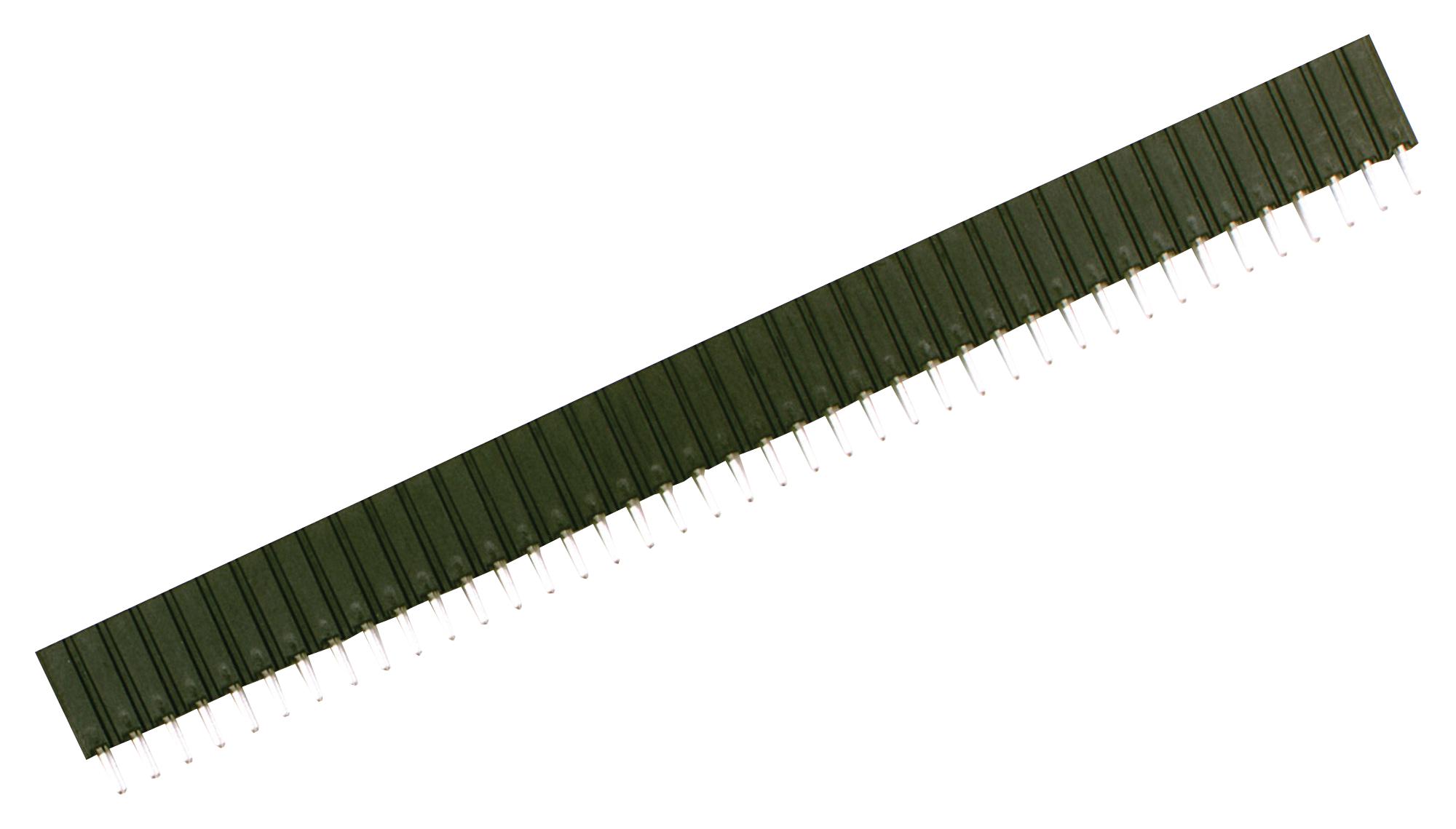

3M 9299740108RK Pin Strip Header
The 3M 929 Series Pin Strip Header is designed for reliable signal transmission in a variety of electronic applications. These headers feature a glass-filled polyester (PBT) or high-temperature (PCT) plastic insulation, providing excellent durability and heat resistance. The copper alloy contacts with nickel underplating and various plating options (gold, matte tin, or tin-lead) ensure excellent conductivity and corrosion resistance. Available in single and dual row configurations, straight and right-angle designs, and multiple tail lengths to accommodate diverse board layouts. Suitable for wave or IR soldering processes, these headers offer a robust and versatile interconnect solution for industrial and commercial applications.
3M 9299740108RK Pin Strip Header Specifications:
- Material: Glass Filled Polyester (PBT) or High Temperature (PCT)
- Flammability: UL 94V-0
- Contact Material: Copper Alloy
- Plating: Nickel (50 µ” [1.27 µm])
- Current Rating: 2.5 A
- Insulation Resistance: > 5 × 10[9 ] Ω at 500 VDC
- Withstanding Voltage: 1500 VRMS at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C (per J-STD-020C) for PCT parts only
- Moisture Sensitivity Level: Level 1 (per J-STD-020C) for PCT parts
- UL File No.: E68080
- Mating Length: .100”, .235”/.318”
