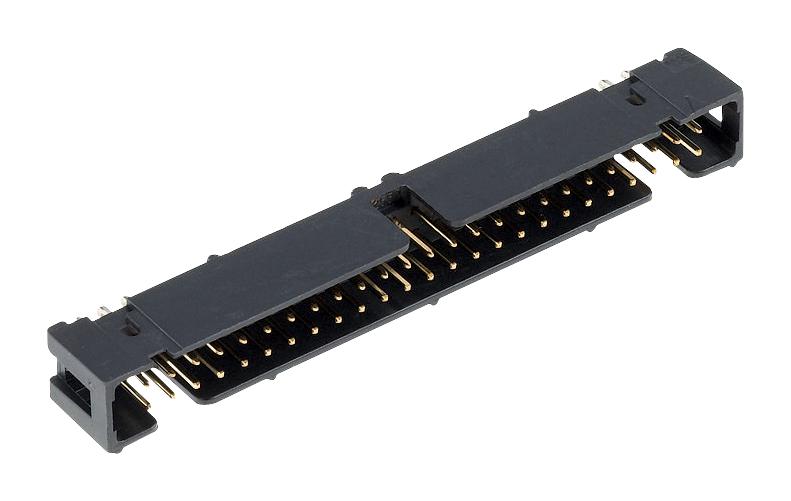

3M N25145002RBWD Four-Wall Connector
The 3M Four-Wall Header is a low-profile, space-saving connector designed for high reliability in electronic assemblies. It features through-hole and surface-mount versions with polarization and optional locking retainers for vibration resistance. Made from glass-filled polyester insulators, with gold over nickel plating for contact durability. Rated for temperatures from -55°C to +105°C, it supports currents up to 5A. The connector includes optional high-temperature insulators suitable for lead-free reflow soldering, ensuring versatile assembly configurations for demanding applications.
3M N25145002RBWD Four-Wall Connector Specifications:
- Insulator Material: Glass Filled Polyester (PBT) or High Temperature Glass Filled Polyester (PCT)
- Flammability: UL 94V-0
- Color: Gray (PBT) or Black (PCT)
- Contact Material: Copper Alloy
- Plating: Gold (See Ordering Info), Nickel underplating
- Solder Tails: 200” Tin Lead or Matte Tin (see ordering)
- Current Rating: 5.00A (1 contact powered), 3.00A (6 contacts powered), 1.75A (all contacts powered)
- Insulation Resistance: >1 x 10^9 Ω at 500V
- Withstanding Voltage: 1000V AC at sea level
- Temperature Rating: -55°C to +105°C
- Process Rating: PCT high-temp insulator for 260°C reflow, PBT for solder wave
- Moisture Sensitivity Level: 1
- UL File No.: E68080
