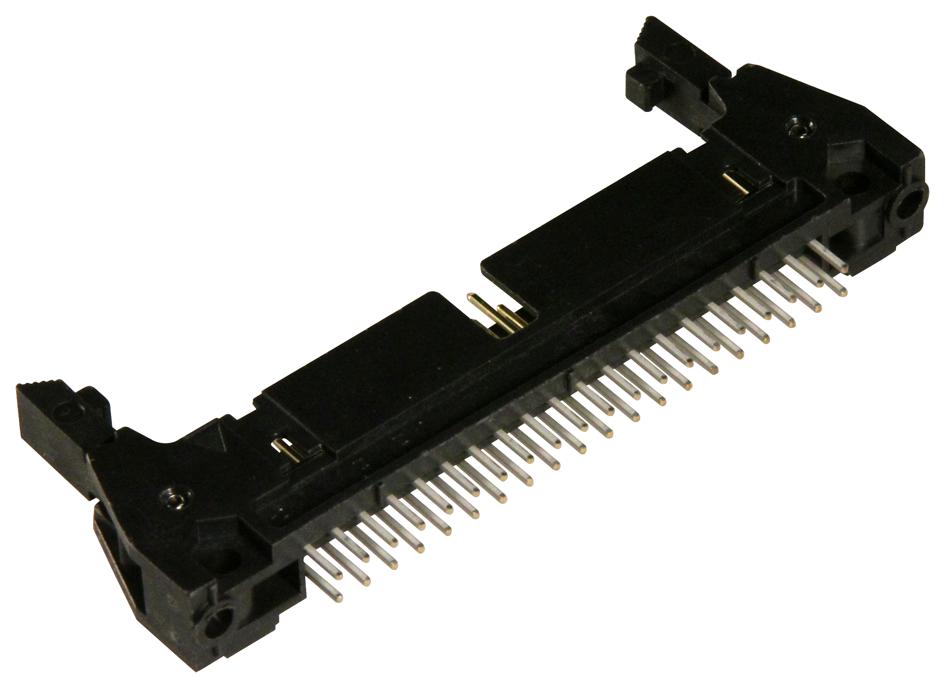

3M N34326302RB Four-Wall Header

The 3M™ Four-Wall Header is a versatile high-temperature interconnection component designed for reliable electronic connections in demanding environments. Made from glass-filled polyamide insulators, available in gray or black, it features optional polarizing posts, ejector latches, and solder tail options. Rated for currents up to 5A and withstands voltages over 1000V, this header supports RoHS compliance, high-temp soldering, and reflow processes. Its robust construction ensures durability, secure mounting, and compatibility with a variety of PCB configurations for industrial, automation, and electronic device applications.

3M N34326302RB Four-Wall Header Specifications:

  • Material: Glass Filled Polyester (PBT) or High Temp Polycarbonate (PCT)
  • Flammability: UL 94V-0
  • Color: Gray (PBT), Black (PCT)
  • Contact Material: Copper Alloy
  • Plating: 100 microns Nickel, 30 nanometers Gold
  • Electrical Rating: 5A, 1000V at sea level
  • Insulation Resistance: >1 x 10^9 Ohms at 500V
  • Temperature Rating: -55°C to +105°C, high temp options up to 260°C
  • Process Ratings: Solder wave, reflow soldering compatible
  • Moisture Sensitivity Level: 1 (per J-STD-020C)

Buy the Buy 3M Electronic Components Part Number N34326302RB Online

Get your 3M four-wall header online today to ensure secure, durable electrical connections in demanding environments. Featuring high-temperature insulators, optional polarizing posts, ejector latches, and solder tails, this header supports high current ratings and withstands voltages exceeding 1000V. Crafted from UL 94V-0-rated materials, it offers excellent safety and performance. Available in gray or black, with RoHS compliance, supports both leaded and lead-free soldering techniques, and is suitable for PCB mounting in industrial, automation, and electronic systems. Buy now for fast, reliable delivery.

Order your 3M Series3000 N34326302RB four-wall header today and enhance your electronic assembly with reliable, high-temperature interconnect solutions.

Frequently Asked Questions

Where can I buy 3M N34326302RB?

You can click on the BUY or RFQ button to purchase N34326302RB from an authorized 3M distributor.

How do I troubleshoot issues or seek technical support for part N34326302RB?

You can download the N34326302RB datasheet or visit the 3M website for support.

Who is the manufacturer of N34326302RB?

3M
