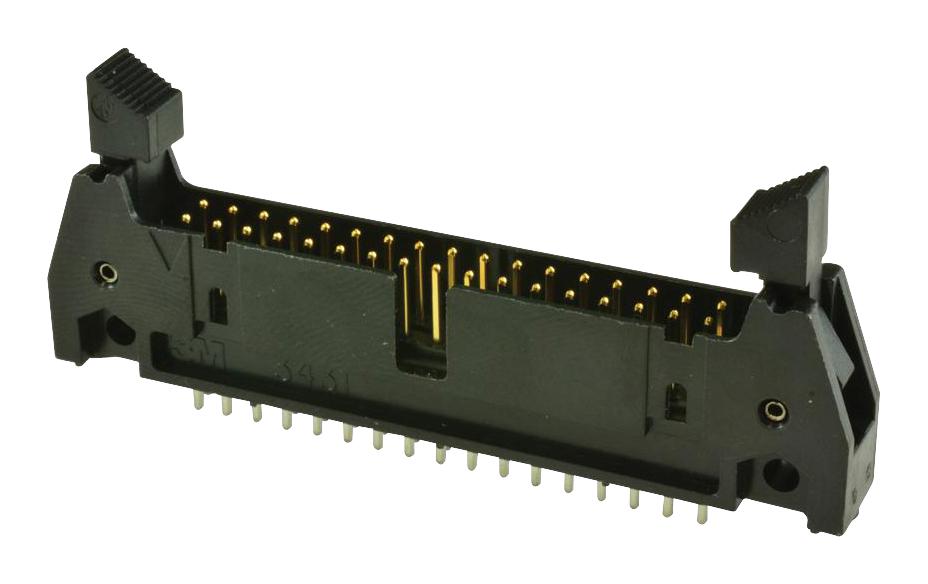

3M N34326303RB Four-Wall Header
The 3M™ Four-Wall Header Series 3000 offers reliable, high-performance PCB connections for industrial electronic applications. Designed with flexible options including latch and ejector configurations, polarizing features, and high-temperature insulators suitable for reflow soldering, these headers ensure secure and durable connections. Constructed from glass-filled polyester with UL 94V-0 flammability rating, they support current ratings up to 5A per contact, withstand voltages over 500V, and operate efficiently at temperatures from -55°C to +105°C. Ideal for complex, high-density electronic assemblies requiring dependable, long-lasting interconnects.
3M N34326303RB Four-Wall Header Specifications:
- Material: Glass Filled Polyester (PBT) or High Temp PCT
- Flammability: UL 94V-0
- Color: Gray (PBT), Black (PCT)
- Contact Material: Copper Alloy
- Plating: 100 µ
- Nickel, Gold
- Solder Tails: Available with options for short or long, snap-in or roll pin latch
- Current Rating: 5A per contact with rated conditions
- Insulation Resistance: >1x10^10 Ω at 500V
- Withstanding Voltage: 1,000 V at sea level
- Temperature Range: -55°C to +105°C
- Process Rating: PBT 191°C, PCT 260°C
- Certifications: UL File No. E68080
- Mounting Holes: Compatible with #4-24 screws, .100” dia holes
- Dimensions: Length varies per part number, e.g., 1.065”–2.765” as per model
- Environmental: Meets RoHS requirements, suitable for no lead and reflow soldering
- Outer Configuration: Straight and right-angle versions available
Buy the 3M N34326303RB – Reliable Four-Wall Header for Industrial Applications
Enhance your electronic assemblies with the reliable 3M four-wall header series 3000. Designed for high performance in industrial environments, these headers feature robust construction, flexible mounting options, and high-temperature insulators suitable for reflow soldering. With polarizing keys, latch/ejector options, and certifications meeting RoHS directives, they provide secure, durable, and compliant interconnect solutions for complex PCB designs. Order online today to ensure your projects benefit from these dependable headers, perfect for high-density and demanding applications.
Order your 3M series 3000 four-wall headers today and ensure secure, high-quality PCB connections for your industrial projects.
Frequently Asked Questions
Where can I buy 3M N34326303RB?
You can click on the BUY or RFQ button to purchase N34326303RB from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part N34326303RB?
You can download the N34326303RB datasheet or visit the 3M website for support.
Who is the manufacturer of N34326303RB?
3M
