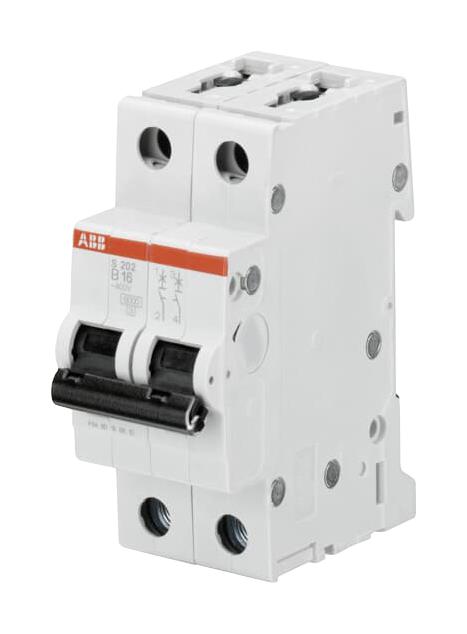

ABB S202B16 Miniature Circuit Breaker
The miniature circuit breaker series S 200 and S 200 M provide high performance, advanced safety features, and broad compatibility with industrial and marine applications. They feature clear contact position indication in red/green, a patented twin terminal with captive screws for easy cable connection up to 35 mm², and a busbar slot for improved visibility during installation. Certified to IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2, these circuit breakers support various pole configurations (1P+N, 2P, 3P+N, 4P) and tripping characteristics (B, C, D, K, Z). Rated for current from 0.5 to 63 A, they operate at 50/60 Hz, with a rated voltage up to 440 V AC, providing reliable overload and short circuit protection for demanding industrial and marine environments. Designed for DIN rail mounting, with optional accessories like auxiliary contact, shunt trip, undervoltage release, and motor operating device, ensuring versatile applications in automation and electrical distribution systems. The robust construction and compliant safety standards make them an essential component for modern electrical installation and safety management.
ABB S202B16 Miniature Circuit Breaker Specifications:
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2
- Poles: 1P+N, 2P, 3P+N, 4P
- Rated Current: 0.5 to 63 A
- Rated Insulation Voltage: 250 V AC (phase to ground), 500 V AC (phase to phase)
- Rated Voltage: 230/400 V AC, 253 V AC for certain models
- Rated Frequency: 50/60 Hz
- Overvoltage Category: Ul
- Protection Degree: IP40/IP20, according to model
- Tripping Characteristics: B, C, D, K, Z
- Rated Short-Circuit Capacity: 10 kA / 15 kA
- Electrical Endurance: 20,000 ops. (AC), 1,000 ops. (DC)
- Mounting: DIN rail (35 mm width), any position
- Terminal Cross-section: 18-8 AWG / 0.75-4 mm², 36 mm² cable capacity
- Dimensions (H x D x W): 85 x 69 x 17.5 mm
- Weight: approximately 125 g
- Additional Features: Auxiliary contact, shunt trip, undervoltage relay, motor operating device, protected by IP ratings
- Operating Temperature Range: -40°C to +70°C
Buy the ABB S202B16 – Reliable Miniature Circuit Breaker for Industrial Applications
Purchase the ABB S202B16 miniature circuit breaker online today for dependable overload and short circuit protection across industrial, marine, and automation systems. Engineered for durability, this high-performance breaker supports various pole configurations up to 4P+N and currents up to 63A. With advanced safety features, easy DIN rail mounting, and certifications compliant with IEC, UL, and CSA standards, it ensures reliable operation in harsh environments. Secure your electrical systems with ABB's trusted protection solutions, designed for safety, longevity, and ease of installation.
Get ABB S202B16 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ABB S202B16?
You can click on the BUY or RFQ button to purchase S202B16 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202B16?
You can download the S202B16 datasheet or visit the ABB website for support.
Who is the manufacturer of S202B16?
ABB
