ABRACON ASPIAIGF40201R0MT High Current Power Inductor
The high current shielded SMD power inductor series features packages supporting up to 36A current with a low DCR of 1.75mΩ. Suitable for DC/DC converters in distributed power systems, FPGA power, server VRMs, and high-current POL converters, these inductors offer excellent thermal performance and EMI reduction. They are RoHS compliant, automotive-grade, and TS16949 and AEC-Q200 qualified, making them ideal for automotive, electric vehicle, and industrial applications. Its low profile and soft saturation ensure reliable operation in compact power modules and motor control.
ABRACON ASPIAIGF40201R0MT High Current Power Inductor Specifications:
- Package support: packages support up to 36A current with low DCR of 1.75mΩ
- RoHS/RoHS II compliant and automotive grade
- Operating Temperature: -40°C to 125°C
- Storage Conditions: -10°C to +40°C and R.H. 60% max
- MSL Rating: 1
- Dimensions vary depending on model, typical sizes include 40.2mm x 20mm x 14mm
- Material: magnetic core with shielded construction for EMI reduction
- Inductance values range from 0.15μH to 8.2μH
- Applications include high current power supplies, FPGA power modules, VRMs, and motor control
- Peak current handling: supports continuous high current operation in compact low-profile design

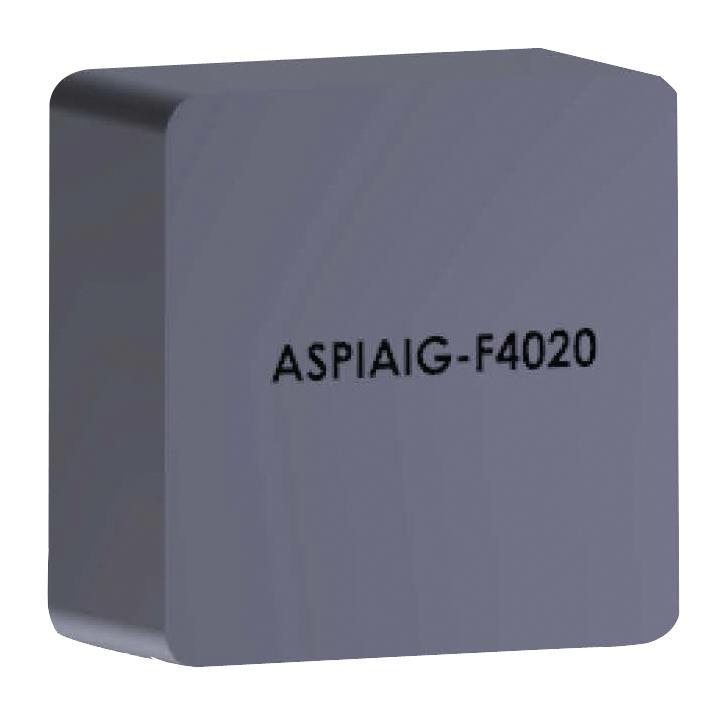

Buy the Abracon Series ASPAIG Power Inductor: ASPIAIGF40201R0
Order Abracon high current shielded power inductors today and enhance your power supply efficiency. These inductors support up to 36A, feature low DCR, RoHS compliance, and are perfect for FPGA, server VRM, and automotive power modules. With a low profile design, they fit easily into compact configurations. Ideal for high-current DC/DC converters, motor control, and solar inverters, these inductors provide excellent thermal and EMI performance, ensuring long-term durability and reliable operation in demanding applications.
Buy Abracon high current shielded power inductors now and ensure reliable, efficient power management in your high-performance electronic systems.
Frequently Asked Questions
Where can I buy ABRACON ASPIAIGF40201R0MT?
You can click on the BUY or RFQ button to purchase ASPIAIGF40201R0MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASPIAIGF40201R0MT?
You can download the ASPIAIGF40201R0MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASPIAIGF40201R0MT?
ABRACON
