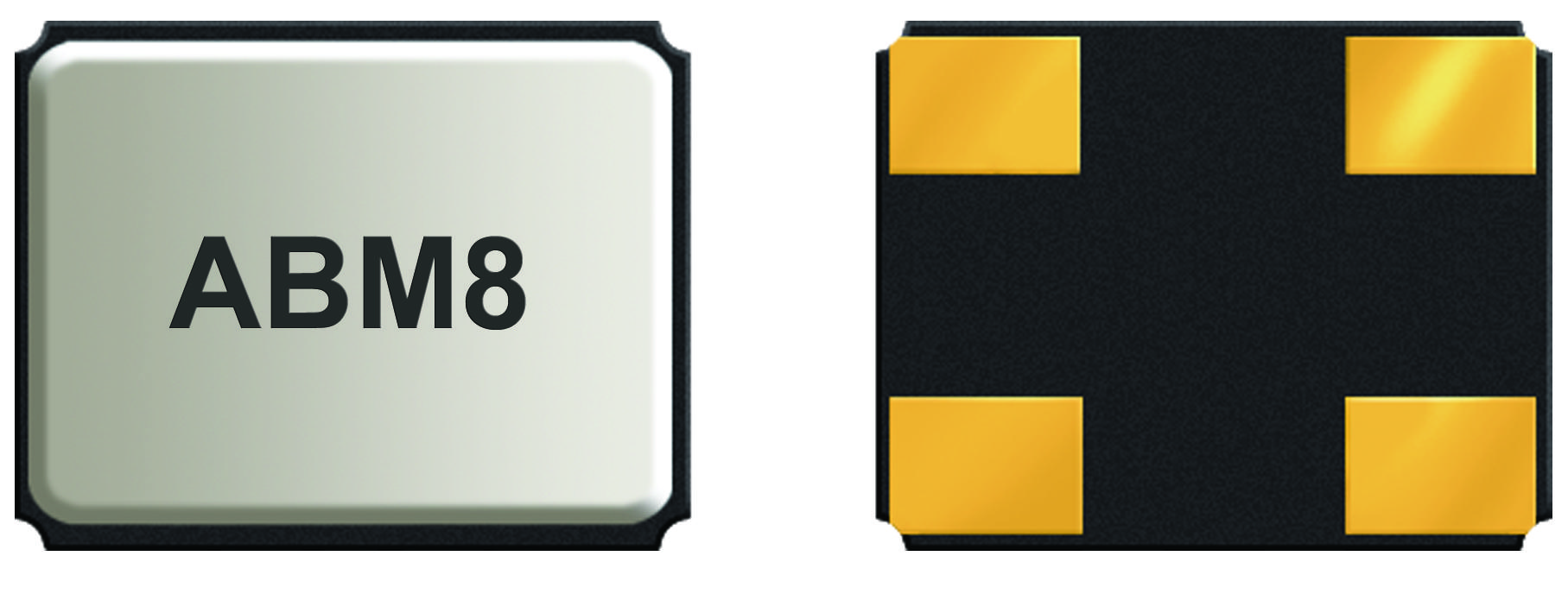

ABRACON ABM824000MHZ10B1UT Miniature SMD Crystal
This ultra miniature ceramic SMD crystal is designed for high-reliability clock and timing applications, offering temperature stability, moisture sensitivity, and RoHS compliance. With dimensions of 3.2x2.5x0.8mm, it features a hermetically sealed package suitable for thin, high-density equipment and RoHS reflow processes. The crystal operates over a frequency range of 10.000 to 125.000 MHz, including fundamental and third overtone modes. It provides tight frequency tolerance, stability, and low equivalent series resistance, making it ideal for modems, wireless, communication, and test equipment requiring precise, stable timing signals.
ABRACON ABM824000MHZ10B1UT Miniature SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm (0.126x0.098x0.031 inches)
- Frequency Range: 10.000 to 125.000 MHz (fundamental and third overtone modes)
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Operation Mode: Standard, fundamental, and third overtone
- Temperature Range: -10°C to +60°C (standard), options up to -55°C to +125°C
- Equivalent Series Resistance: varies with frequency, typical values between 30.000 and 125.000 ohms
- Shunt Capacitance (CO): 7.0 pF
- Load Capacitance (CL): 18.0 pF
- Insulation Resistance: 500 MΩ at 100Vdc + 15V
- Aging: 3 ppm per year
- Moisture Sensitivity Level: Sensitive
Buy the Abrexon Series Ultra Miniature Crystal: ABM824000MHZ10B1UT
Purchase the Abracon Series ABM824000MHZ10B1UT ultra miniature SMD crystal today for high-precision clock applications. This hermetically sealed component measures 3.2x2.5x0.8mm, operates between 10 and 125 MHz, and offers excellent frequency stability, tight tolerances, and low resistance. Its RoHS compliance and moisture sensitivity level make it suitable for demanding environments. Ideal for wireless, communication, modems, and test equipment, this crystal guarantees long-term reliability and stability in compact, high-density electronic assemblies.
Order your Abracon Series ABM824000MHZ10B1UT today and ensure precise, reliable timing for your high-density electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM824000MHZ10B1UT?
You can click on the BUY or RFQ button to purchase ABM824000MHZ10B1UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM824000MHZ10B1UT?
You can download the ABM824000MHZ10B1UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM824000MHZ10B1UT?
ABRACON
