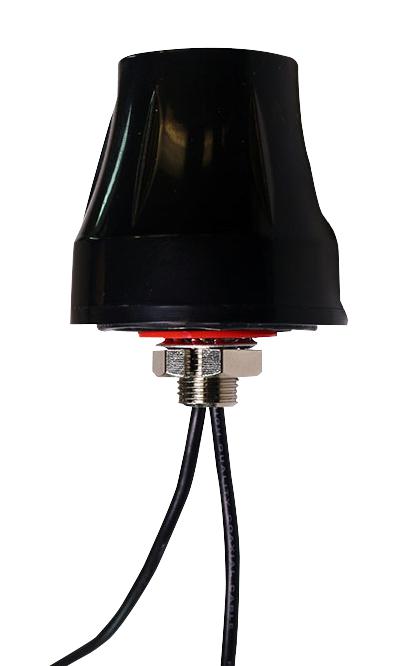

ABRACON AEACBK050048MW2 Dualband WiFi Antennas
This dualband WiFi external MIMO antenna set features two linear polarization antennas with a gain of 2.0 dBi, operating over 2.4 GHz and 5 GHz frequency ranges. Designed for robust outdoor use, it is IP67 rated, ensuring protection against dust and water ingress, making it ideal for WiFi, IoT, smart meters, gateways, and M2M applications. It features screw mounting, SMA male connectors, and durable ABS radomes. Suitable for harsh environments with operating temperatures from -40°C to +85°C and humidity up to 95%, it delivers high performance in industrial wireless solutions.
ABRACON AEACBK050048MW2 Dualband WiFi Antennas Specifications:
- Frequency Range: 2400 ~ 2483.5 MHz (2.4 GHz), 4900 ~ 5825 MHz (5 GHz)
- Gain: 2.0 dBi
- VSWR: < 2.0
- Polarization: Linear
- Connectors: 2 x SMA Male
- Cable Type: 2 x RG174/3M
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67 (excluding cable outlet)
- Relative Humidity: Up to 95%
- Dimensions: 50.0 x 48.0 mm
- Radome Material: ABS
- Mounting: Screw
- Environmental Durability: Vibration 10-55 Hz, 1.5 mm amplitude, 2 hours
Buy the Abracon AEACBK050048-MW2 – Reliable Dualband WiFi MIMO Antennas for Industrial Applications
Enhance your wireless connectivity with Abracon dualband WiFi MIMO antennas designed for outdoor industrial use. These IP67-rated antennas feature linear polarization and a gain of 2.0 dBi, suitable for WiFi, M2M, smart meters, gateways, and public safety systems. With SMA connectors and durable ABS radomes, they withstand harsh environmental conditions, operating effectively from -40°C to +85°C and humidity up to 95%. Easy to install with screw mounting, they ensure reliable, long-lasting wireless performance in demanding applications.
Get Abracon AEACBK050048-MW2 today—built for precision, outdoor durability, and high-performance wireless connectivity in industrial environments.
Frequently Asked Questions
Where can I buy ABRACON AEACBK050048MW2?
You can click on the BUY or RFQ button to purchase AEACBK050048MW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AEACBK050048MW2?
You can download the AEACBK050048MW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AEACBK050048MW2?
ABRACON
