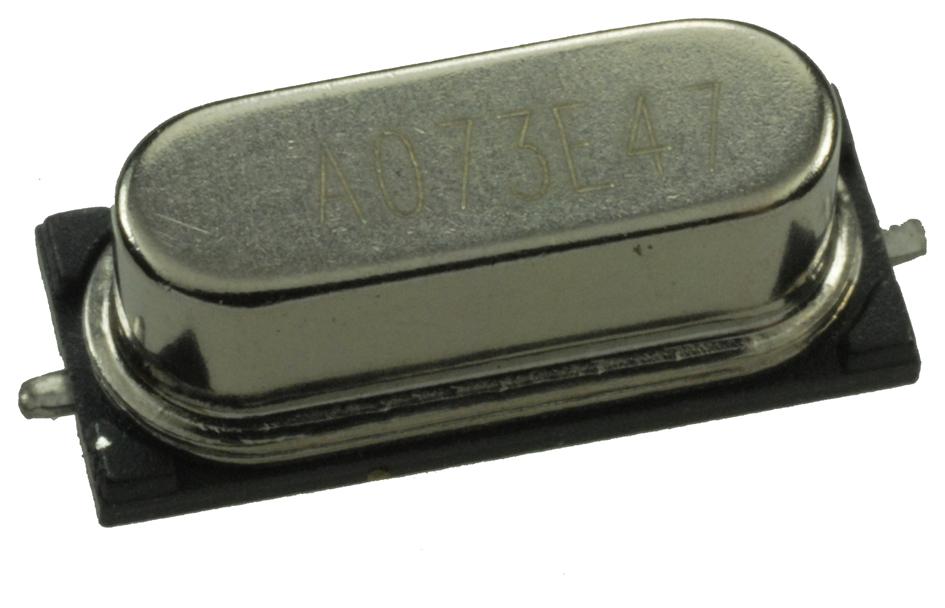

ABRACON ABLS6000MHZ20B3HT Low Profile Crystal
This ultra-compact low profile crystal is ideal for clock and timing applications in electronic systems, supporting a wide frequency range from 3.579545 MHz to 75 MHz. It features high stability, RoHS compliance, and is suitable for reflow soldering in tight spaces. Designed for stability over extended temperature ranges, with options for fundamental and overtone modes, it ensures precise timing signals in wireless, computing, and microprocessor applications. Its hermetically sealed construction ensures durability and performance in varied environments, making it perfect for modern electronic device timing needs.
ABRACON ABLS6000MHZ20B3HT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: AT (Fundamental or 3rd Overtone) or BT cut
- Frequency Tolerance: +50 ppm at +25°C
- Temperature Range: -10°C to +70°C (standard), -55°C to +125°C (extended)
- Drive Level: 1 mW max.
- Shunt Capacitance: 18 pF max.
- Equivalent Series Resistance: Consult Table 1
- Insulation Resistance: 500 MΩ at 100VDC
- Aging: +5 ppm max. first year
- Material: Hermetically sealed, RoHS compliant
- Dimensions: 15 x 4.7 x 2.0 mm
- Reflow Profile: 60-120 seconds at +260°C, +5°C
Buy the Buy Abracon Low Profile Crystal Part Number ABLS6000MHZ20B3HT Online
Enhance your electronic systems with this high-precision low profile crystal designed for timing and clock applications. Supported by a wide frequency range from 3.579545 MHz to 75 MHz, it offers excellent stability, RoHS compliance, and durability through hermetically sealed construction. Its compact size makes it perfect for tight spaces in wireless, microprocessor, and computing devices. Easily integrated via reflow soldering, this crystal ensures reliable, accurate pulse signals critical for modern electronics, providing long-term performance and stability across various operating conditions.
Get Abracon low profile crystal ABLS6000MHZ20B3HT today—designed for precise timing and long-lasting stability in electronic devices.
Frequently Asked Questions
Where can I buy ABRACON ABLS6000MHZ20B3HT?
You can click on the BUY or RFQ button to purchase ABLS6000MHZ20B3HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS6000MHZ20B3HT?
You can download the ABLS6000MHZ20B3HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS6000MHZ20B3HT?
ABRACON
