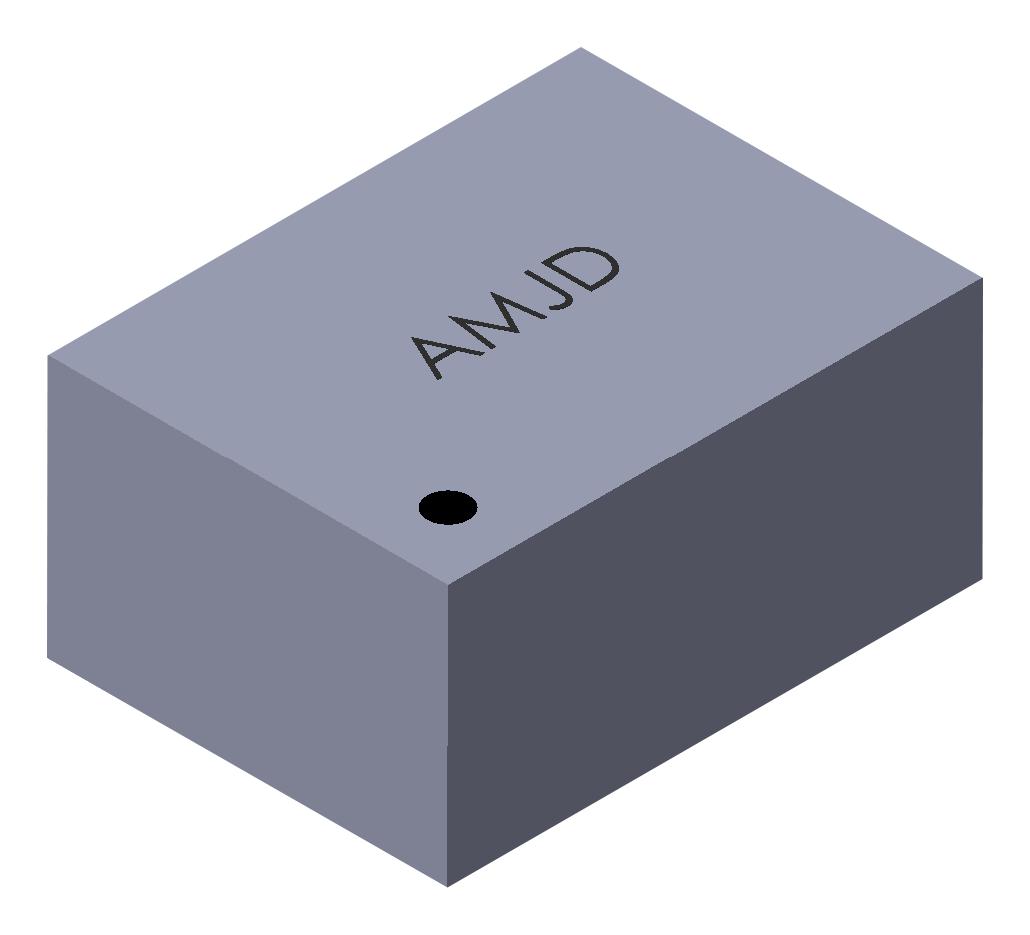

ABRACON AMJDGFHA11 Frequency Oscillator
The product is a frequency-selectable MEMS oscillator offering compact sizes such as 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm with RoHS compliance and MSL=MSL1. It features low power consumption, wide operating temperature from -40°C to +85°C, and frequency range from 1MHz to 100MHz. Suitable for wearables, IoT devices, drones, robotics, and industrial applications, it provides reliable clock signals with adjustable frequency switching times and minimal jitter, ideal for modern electronic systems.
ABRACON AMJDGFHA11 Frequency Oscillator Specifications:
- Size: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- RoHS/RoHS II Compliant
- MSL=MSL1
- Frequency Range: 1.0000 to 100.0000 MHz
- Supply Voltage: 1.71 to 3.63 V
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ±25 ppm (standard), ±50 ppm over -40°C to +85°C
- Power Consumption: 3 mA typical at 1.8V
- Output Logic Levels: High drive and standard drive options available
- Rise/Fall Times: 0.5 to 2.0 ns depending on drive strength and load
- Storage Temperature: -55°C to +150°C
- Reflow Profile: Preheat at 150-200°C for 60-180 sec, peak at 255-260°C for 20-40 sec
- Mechanical Dimensions: Precise contours with terminal pitch of 1.55 mm, terminal width around 0.5 mm, height as specified
- Packaging: Bulk MOQ varies per size, options include tape, reel, and tube packaging
- ESD Protection: 4kV HBM, 400V MM, 2kV CDM
Buy the Abracon AMJDGFHA11 – Reliable Frequency-Selectable MEMS Oscillator for Industrial Applications
Purchase the Abracon AMJDGFHA11 frequency-selectable MEMS oscillator online to benefit from its compact size, low power consumption, wide temperature range, and high reliability. Perfect for industrial, IoT, wearables, drones, and robotics applications, this oscillator ensures precise clock signals with minimal jitter. With multiple sizes and frequencies, flexible packaging options, and fast lead times, it is the ideal choice for modern electronic systems needing accurate timing solutions. Order now and ensure your project’s success with dependable, high-performance oscillators.
Order your Abracon AMJDGFHA11 series low-power MEMS oscillator today and enhance the accuracy and reliability of your IoT and industrial projects.
Frequently Asked Questions
Where can I buy ABRACON AMJDGFHA11?
You can click on the BUY or RFQ button to purchase AMJDGFHA11 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMJDGFHA11?
You can download the AMJDGFHA11 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMJDGFHA11?
ABRACON
