ADAFRUIT 1304 LiPo Battery Charger

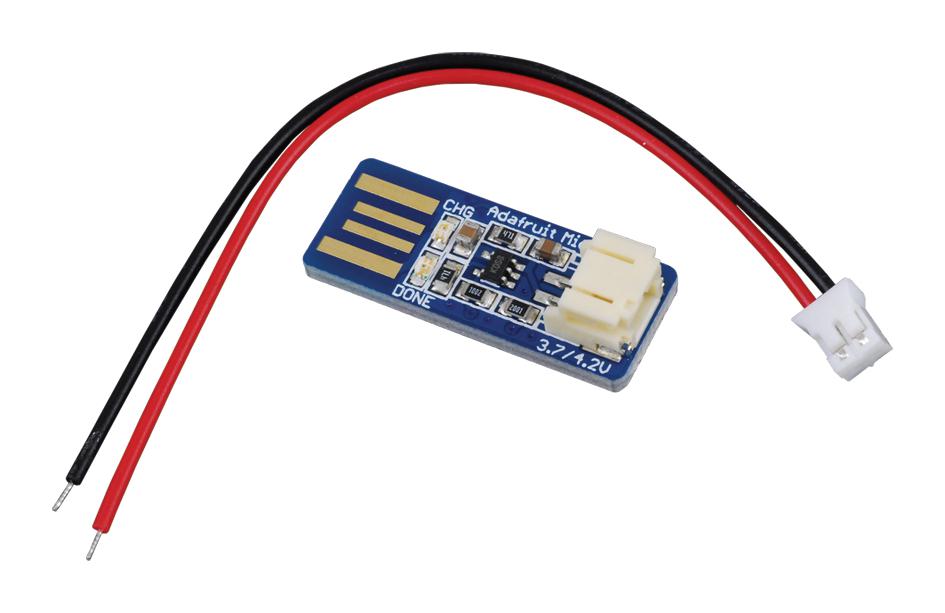

The Adafruit Micro LiPo USB Charger is a compact, easy-to-use charging solution for 3.7V to 4.2V lithium polymer and lithium-ion batteries. It features a 5V USB input, two LEDs indicating charging status, and a default 100mA charge current that can be increased to 500mA by soldering a jumper. Powered by the MCP73831 controller, it performs three-stage charging: preconditioning, fast charging, and trickle charge, ensuring safe and efficient battery management. The small board measures 30mm x 12.5mm x 8mm and includes a JST connector for seamless integration with compatible batteries, specifically designed for Adafruit's rechargeable lithium batteries.
ADAFRUIT 1304 LiPo Battery Charger Specifications:
- Dimensions: 30mm x 12.5mm x 8mm
- Input Voltage: 5V USB
- Charge Current: 100mA (default), upgradeable to 500mA
- Charge Management: MCP73831 controller
- Stages: Preconditioning, fast charge, trickle charge
- LED Indicators: Red (charging), Green (full)
- Compatibility: Lithium Polymer and Lithium-Ion 3.7V-4.2V batteries
- Connector: 2-pin JST for battery connection
- RoHS Compliant
Buy the Adafruit 1304 – Reliable USB LiPo Charger for Industrial Applications
Enhance your portable projects with the Adafruit Micro LiPo USB Charger. Its compact design and efficient three-stage charging ensure safe power management. Compatible exclusively with Adafruit lithium batteries, it features a 5V USB input, an adjustable charge current, and includes indicator LEDs to show charging status. Easily upgrade the charge current to 500mA by soldering a jumper. The included JST connector simplifies integration with your lithium-polymer or lithium-ion batteries, making it ideal for compact, reliable electronic designs.
Buy Adafruit 1304 now and experience reliable, compact charging for your lithium-polymer and lithium-ion batteries.
Frequently Asked Questions
Where can I buy ADAFRUIT 1304?
You can click on the BUY or RFQ button to purchase 1304 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 1304?
You can download the 1304 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 1304?
ADAFRUIT
