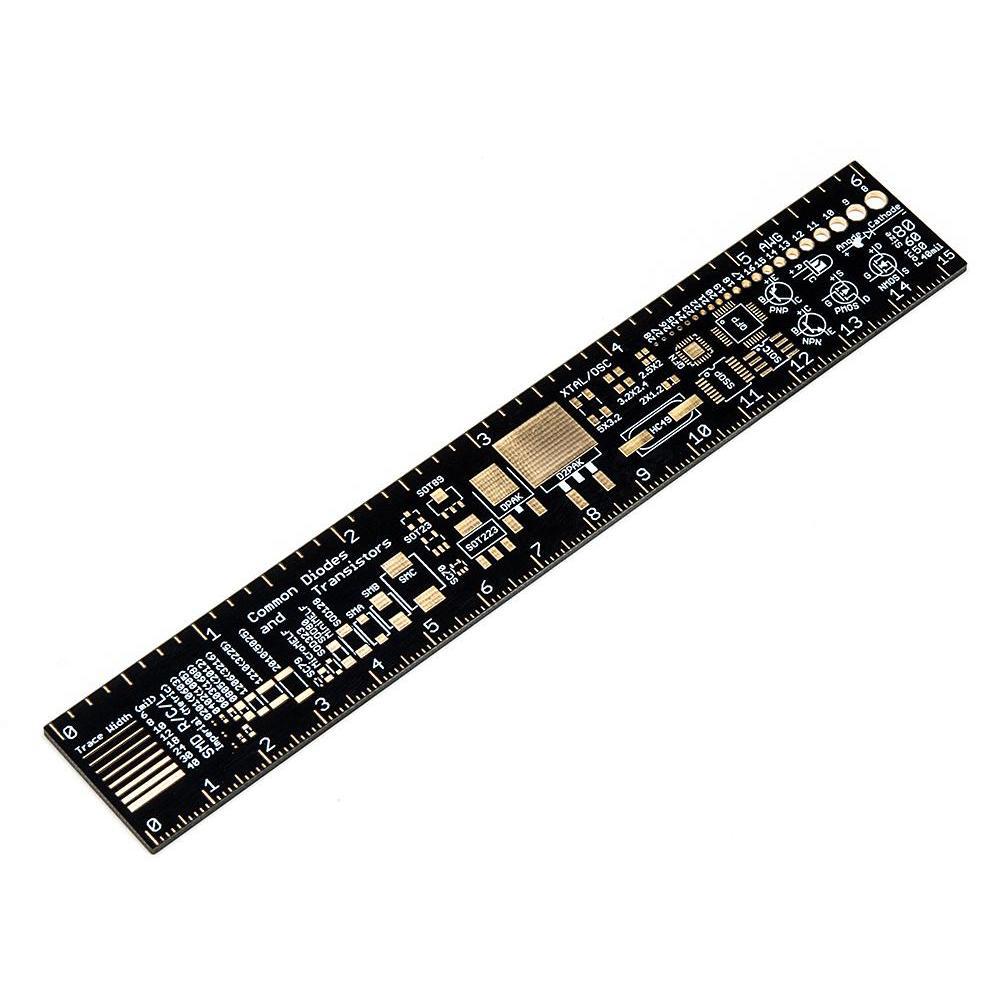

ADAFRUIT 1554 PCB Ruler
This PCB reference ruler provides a convenient and precise way to measure various surface mount components such as QFN, TDFN, SOIC, SOP, and J-Lead packages. Ideal for those soldering surface mount parts for the first time or working with different component sizes, it helps you easily identify and gauge component dimensions directly on your circuit board.
ADAFRUIT 1554 PCB Ruler Specifications:
- Dimensions: 25.6mm / 1" x 153.98mm / 6.06" x 1.64mm / 0.06"
- Material: FR4, gold plated
- Weight: 12.07g
- Measurement Units: inches marked with 1/10", centimeters with 0.1cm marks
- Features: trace-width diagram, font size guide, set of AWG-sized drills
- Package: Standard PCB reference ruler with common component package sizes
Buy the Adafruit Series PCB Ruler v2: 1554
Order the Adafruit PCB Ruler v2 online today and enjoy a reliable, easy-to-use reference tool designed specifically for measuring surface mount components like QFN, TDFN, SOIC, SOP, and J-Lead packages. With its dual measurement system in inches (marked with 1/10") and centimeters (0.1cm marks), this tool helps you quickly identify component sizes and trace widths, making your soldering projects faster and more accurate. Perfect for hobbyists and professionals working on complex PCB assemblies—order now for precise component measurement every time.
Get Adafruit PCB Ruler v2 today—built for precise measurements of surface mount components and hassle-free soldering.
Frequently Asked Questions
Where can I buy ADAFRUIT 1554?
You can click on the BUY or RFQ button to purchase 1554 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 1554?
You can download the 1554 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 1554?
ADAFRUIT
