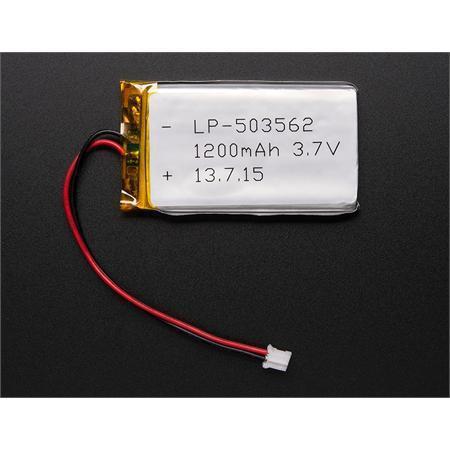

ADAFRUIT 258 Polymer Lithium-ion Battery
This polymer lithium-ion battery offers a compact and lightweight power solution with a capacity of 1200mAh and a nominal voltage of 3.75V. It measures approximately 35.5mm x 62.5mm x 5.2mm, weighs around 22 grams, and features a thin, flexible design suitable for portable electronic devices. The battery includes built-in protection circuitry to prevent overcharging, over-discharging, and short circuits, ensuring safe operation. It is compatible with low-rate chargers at 0.5C or less and comes with a 2-pin JST-PH connector for reliable power connection, making it ideal for small electronics and portable projects.
ADAFRUIT 258 Polymer Lithium-ion Battery Specifications:
- Capacity: 1200mAh
- Nominal Voltage: 3.75V
- Dimensions: 35.5mm x 62.5mm x 5.2mm
- Weight: Approx 22g
- Protection Circuit: Included, prevents overcharge, over-discharge, and short circuit
- Charge Current: 0.5C, suitable for micro USB or similar chargers
- Discharge Cut-off Voltage: 2.75V
- Maximum Charge Voltage: 4.2V
- Charge/Discharge Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 45°C
- Connector: 2-pin JST-PH
Buy the Buy Hunan Sounddon Polymer Lithium-ion Battery Part Number 258 Online
Discover the lightweight and compact polymer lithium-ion battery ideal for portable electronics, IoT devices, and custom projects. Featuring 1200mAh capacity, built-in protection circuitry, and a stable 3.75V voltage, this battery ensures safe and efficient power delivery. Its slim design measures about 35mm by 65mm with a thickness of 5.5mm, weighing only 22 grams. Suitable for micro USB charging at 0.5C or less, it guarantees long-term performance and safety. Perfect for compact, high-demand electronic applications needing dependable power sources, available for quick online purchase.
Get Hunan Sounddon Part number 258 today—built for safe, reliable portable power and long-lasting durability.
Frequently Asked Questions
Where can I buy ADAFRUIT 258?
You can click on the BUY or RFQ button to purchase 258 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 258?
You can download the 258 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 258?
ADAFRUIT
