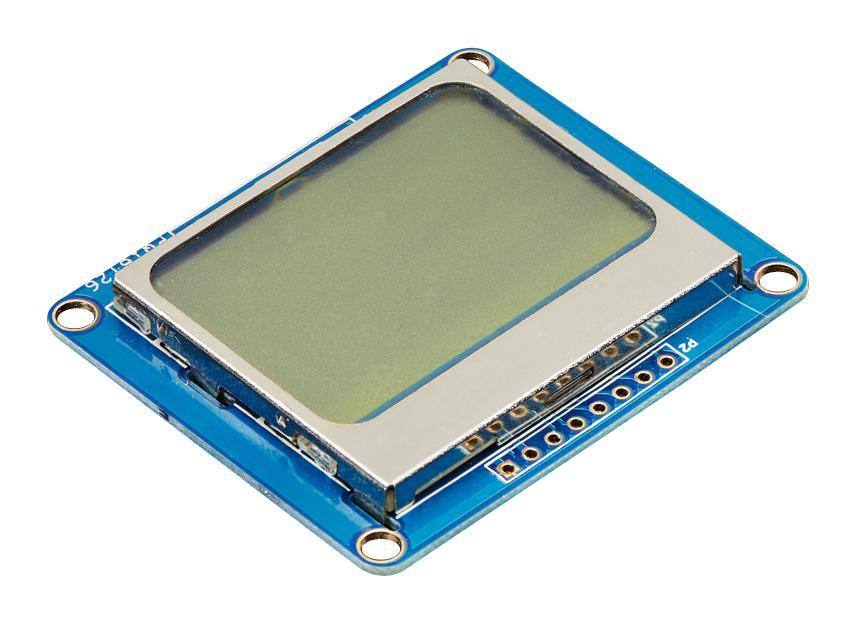

ADAFRUIT 338 Monochrome LCD Display
This monochrome LCD display features an 84x48 pixel resolution and was originally used in classic Nokia 5110 and 3310 phones. Its 1.5-inch diagonal screen provides clear graphics, text, and bitmaps, enhanced by a white backlight for visibility in different lighting conditions. Powered by the PCD8544 driver chip at 3.3V, it requires only 3 to 5 digital output pins for control and includes circuitry for 5V logic compatibility. The display is low power, easy to use, and equipped with a level shifter, making it ideal for microcontroller projects like Arduino.
ADAFRUIT 338 Monochrome LCD Display Specifications:
- Display Resolution: 84x48 pixels
- Screen Size: 1.5 inches diagonal
- Operating Voltage: 3.3V
- Power Consumption: Up to 10mA
- Control Pins: 3 to 5 digital I/O pins
- Backlight: White LED, controllable via transistor
- Interface: SPI with level shifting circuitry for 5V compatibility
- Display Driver: PCD8544
- Dimensions: 1.94x1.66x0.25 inches
- RoHS Compliant
Buy the Buy Nokia 5110/3310 Monochrome LCD Part Number 338 Online
Order the Nokia 5110/3310 Monochrome LCD Display online today. Perfect for microcontroller projects, it offers a clear 84x48 pixel resolution with a bright backlight, easy control, and low power consumption. Compatible with Arduino and other microcontrollers, its simple interface makes it ideal for displaying text and graphics. With level shifting circuitry included, it supports 5V logic levels, ensuring safe and straightforward connection. Enhance your electronics projects with this classic, reliable monochrome display.
Get Nokia 5110/3310 monochrome LCD today—designed for simple integration and long-lasting performance.
Frequently Asked Questions
Where can I buy ADAFRUIT 338?
You can click on the BUY or RFQ button to purchase 338 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 338?
You can download the 338 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 338?
ADAFRUIT
