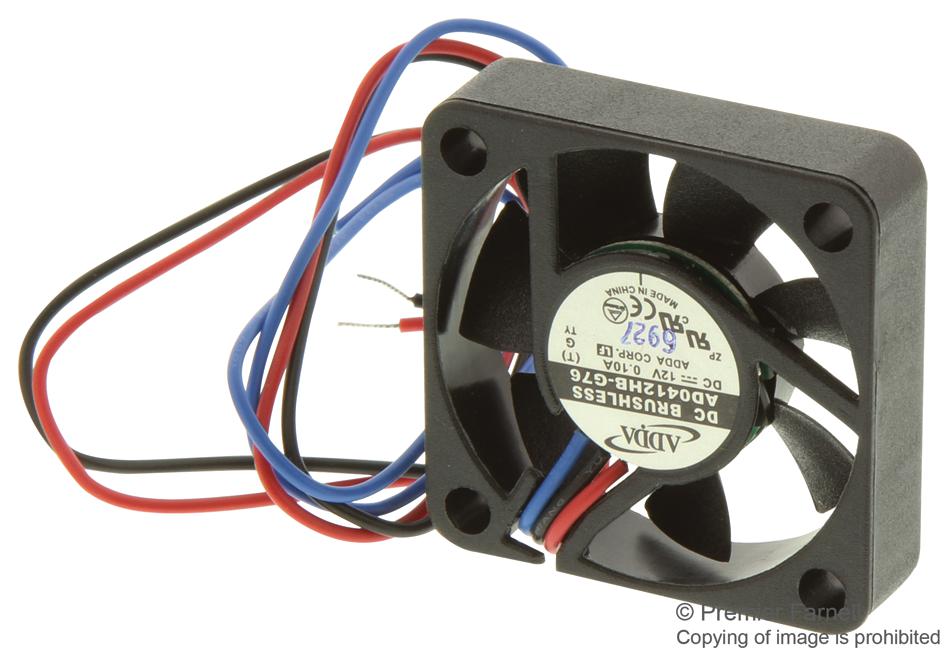

ADDA AD0412HBG76 Axial Cooling Fan
The AD0412HB-G76 is a high-performance 12V DC axial fan designed for reliable cooling applications. With a 10mm thick plastic frame and impeller, it features ball bearings for durability and operates clockwise from the front view. The fan offers a speed of 6000 RPM, consuming 1.08W of power, and delivers maximum airflow with a pressure of 0.1 Aque. Its UL94V-0 flammability rating and insulation resistance above 10 MΩ ensure safety and insulation integrity. Suitable for operating temperatures from -10°C to 70°C, it includes motor and polarity protection, making it ideal for electronics cooling and ventilation solutions.
ADDA AD0412HBG76 Axial Cooling Fan Specifications:
- Frame: Plastic (UL94V-0)
- Impeller: Plastic (UL94V-0)
- Lead wire: UL1007 AWG26
- Supply Voltage: 12V DC
- Speed: 6000 RPM
- Power Consumption: 1.08W
- Maximum airflow pressure: 0.1 Aque
- Rotation: Clockwise when viewed from front
- Bearing type: Ball bearing
- Operating temperature range: -10°C to 70°C
- Insulation resistance: ≥10 MΩ at 500V DC
- Dielectric strength: 500VAC, leakage current 1mA for 1 minute
- Flammability rating: UL94V-0
- Wire lead: UL1007 AWG26
- Maximum airflow: 620 CFM
- Maximum static pressure: 0.100 mmAq
Buy the Adda Series G76 12V DC Axial Fan: AD0412HBG76
Enhance your electronic cooling solutions with the Adda Series G76 12V DC axial fan. Featuring a durable plastic frame and ball bearings, this fan operates at 6000 RPM with 1.08W power consumption. Its UL94V-0 flammability rating, insulation resistance of over 10 MΩ, and operating temperature range from -10°C to 70°C make it ideal for a wide range of applications. Easy to install with UL1007 AWG26 lead wires, it provides efficient airflow and maximum static pressure, ensuring reliable cooling performance in your system.
Order your Adda Series G76 12V DC axial fan today and ensure efficient cooling for your electronic projects with reliable performance.
