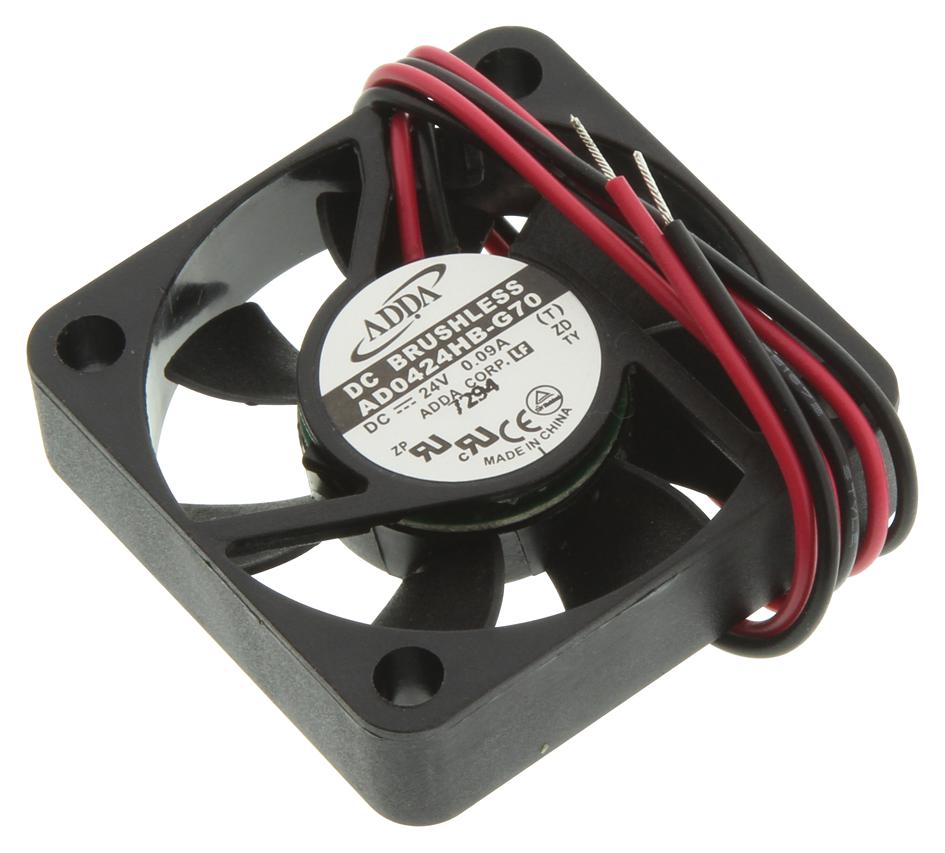

ADDA AD0424HBG70 Industrial Axial Fan
The AD0424HB-G70 is a reliable 24V DC axial fan designed for industrial cooling applications. It features a 10mm thick plastic frame and impeller, with high-speed operation at 6000 RPM. Equipped with ball bearings, it ensures durability and smooth performance. The fan has a clockwise rotation viewed from the front, a power rating of 1.44W, and maximum pressure of 0.1 inches of water. It complies with UL94V-0 flammability standards, includes motor and polarity protection, and can operate within -10°C to 70°C, making it suitable for demanding environments.
ADDA AD0424HBG70 Industrial Axial Fan Specifications:
- Frame Size: 40x40x10 mm
- Frame Material: Plastic UL94V-0
- Impeller Material: Plastic UL94V-0
- Lead Wire: UL1007 AWG26
- Bearing Type: Ball Bearings
- Voltage: 24V DC
- Speed: 6000 RPM
- Power Consumption: 1.44W
- Maximum Pressure: 0.1 inches of water
- Maximum Airflow: 620 CFM
- Noise Level: Measured at 1 meter from intake
- Operates within Temperature Range: -10°C to 70°C
- Dielectric Strength: 500VDC for 1 minute
- Insulation Resistance: 10 MΩ or more at 500VDC
- Rotation: Clockwise when viewed from the front
- Certification: UL94V-0 Flammability Standard
Buy the Buy ADDA AD0424HB-G70 Part Number AD0424HBG70 Online
Order the ADDA AD0424HB-G70 online today to experience high-quality industrial cooling with reliable 24V operation. This axial fan features a 40x40x10 mm plastic frame and impeller, ball bearings for durability, and high-speed rotation at 6000 RPM. Its UL94V-0 standard ensures safety and flame resistance. The fan is designed to operate efficiently within -10°C to 70°C, includes motor and polarity protection, and offers excellent airflow performance. Perfect for electronics cooling, machinery ventilation, and industrial applications requiring dependable airflow and long-lasting service life.
Get ADDA AD0424HB-G70 today—built for industrial cooling, durability, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy ADDA AD0424HBG70?
You can click on the BUY or RFQ button to purchase AD0424HBG70 from an authorized ADDA distributor.
How do I troubleshoot issues or seek technical support for part AD0424HBG70?
You can download the AD0424HBG70 datasheet or visit the ADDA website for support.
Who is the manufacturer of AD0424HBG70?
ADDA
