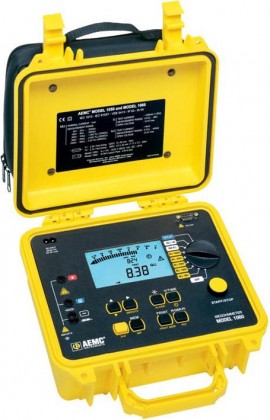

AEMC Instruments 1060 Insulation Resistance Tester
The AEMC 1060 is a professional Megohmmeter designed for accurate insulation resistance testing of cables, transformers, motors, and wiring installations. It features a large dual-display LCD with a bright blue electroluminescent backlight, allowing clear readings in dark environments. The device provides resistance measurements up to 4000 GΩ, along with direct readings of dielectric absorption ratio (DAR), polarization index (PI), and sample capacitance. It offers programmable test voltages (50V, 100V, 250V, 500V, and 1000V), test durations (1 second to 59 minutes), and PI times. Additional features include automatic discharge, safety interlocks, remote operation capabilities, and rugged, weatherproof construction suitable for field use. The instrument includes onboard memory, PC interface, and complies with EN 61010-1 standards.
AEMC Instruments 1060 Insulation Resistance Tester Specifications:
- Test Voltage: 50V, 100V, 250V, 500V, 1000V
- Resistance Measurement Range: up to 4000 GΩ
- Display: Large dual LCD with blue electroluminescent backlight
- Measurement of DAR, PI, and Capacitance
- Test Duration: 1 second to 59 minutes
- PI Test Time: Programmable
- Automatic discharge and safety interlocks
- Remote operation enabled
- Power Source: Rechargeable NiMH battery pack
- Memory: 128kB for storing measurement files
- Interface: RS-232 for PC data transfer
- Standards: EN 61010-1, 600V CAT III
Buy the AEMC 1060 – Reliable Insulation Tester for Industrial Applications
Purchase the AEMC 1060 insulation resistance tester online today for accurate, reliable measurements of cables, transformers, and motors. Featuring programmable test voltages, large dual LCD display, automatic discharge, and remote operation, it ensures quick and safe testing in any field environment. Its rugged, weatherproof design and onboard memory allow for efficient data logging and analysis. Equipped with PC interface and compliant with industry standards, the AEMC 1060 is your ideal solution for comprehensive insulation testing needs. Order now for fast delivery and superior performance.
Buy AEMC 1060 Megohmmeter now and experience unmatched reliability and performance in insulation resistance testing with advanced remote operation features.
Frequently Asked Questions
Where can I buy AEMC Instruments 1060?
You can click on the BUY or RFQ button to purchase 1060 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 1060?
You can download the 1060 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 1060?
AEMC Instruments
