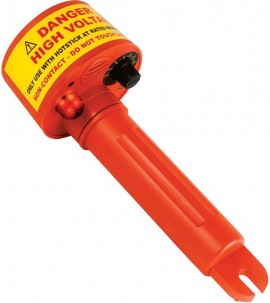

AEMC Instruments 275HVD High Voltage Detector
The AEMC 275HVD Non-Contact High Voltage Detector is a portable, reliable device designed for safe proximity detection of high voltage in industrial, electrical, and maintenance settings. It features an eight-position rotary switch offering detection ranges from 80V to 275kV. The sensor detects radiated electrical fields around energized conductors, alerting users via audible buzzer and bright LEDs. Powered by three alkaline C batteries, it extends usability for indoor and outdoor applications. Designed with a universal spline for hot stick attachment, it ensures safe operation at elevated or difficult-to-access points, making it ideal for voltage detection, fault finding, ground checks, wire tracing, and residual voltage testing.
AEMC Instruments 275HVD High Voltage Detector Specifications:
- Detection Range: 80V to 275kV
- Detection Frequency: 45 to 70Hz
- Power Source: Three 1.5V C cell batteries (included)
- Detection Distance: Approximately 10 inches (25cm) from voltage
- Environmental Operating Temperature: 5° to 130°F (-15° to 55°C)
- Storage Temperature: 4° to 150°F (-20° to 65°C)
- Humidity: 0 to 93% RH @ 104°F (40°C)
- Indicators: Bright LED and audible buzzer
- Self-Test: Ensures all system functions
- Design: Compatible with hot sticks via shotgun adapter
- Application: Voltage detection, fault finding, wiring troubleshooting
Buy the Perea Series 275HVD High Voltage Detector: 275kV Non-Contact Voltage Tester
Secure your electrical maintenance toolkit with the Perea Series 275HVD High Voltage Detector. This advanced non-contact device detects voltages from 80V up to 275kV, providing both visual and audible alerts for safe work environments. Lightweight and designed for compatibility with hot sticks via a shotgun adapter, it allows safe operation at high or hard-to-reach locations. Its self-test feature ensures functionality before each use, making it ideal for fault finding, grounding checks, wire tracing, and residual voltage detection in various industrial and utility applications.
Order your Perea Series 275HVD high voltage detector today and ensure safe, reliable detection of energized conductors in your electrical projects.
Frequently Asked Questions
Where can I buy AEMC Instruments 275HVD?
You can click on the BUY or RFQ button to purchase 275HVD from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 275HVD?
You can download the 275HVD datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 275HVD?
AEMC Instruments
