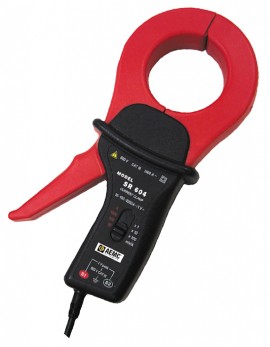

AEMC Instruments SR704 Current Probe
This general-purpose AC current probe is designed for precise measurements in industrial and utility environments. With a 1000:1 ratio and a large jaw opening, it easily clamps onto conductors up to two 500 kcmil cables. Suitable for power quality, waveform, and power load monitoring, it offers high accuracy, low phase shift, and broad frequency response. The ergonomic design, safety standards compliance including EN 61010 and UL approval, makes it ideal for use with DMMs, oscilloscopes, and data loggers. It includes a 5-foot lead with banana plugs for versatile measurement applications.
AEMC Instruments SR704 Current Probe Specifications:
- Measurement Range: 1mA to 1200A
- Transformation Ratio: 1000:1
- Output Signal: AmAac/Aac (1Aac @ 1000A)
- Accuracy (1000A Range): 1mA to 100mA 0.1 to 1A, 1 to 10A 1% of Reading + 5uV, 10 to 100A 2% of Reading + 3μV, 100 to 1200A <1% of Reading + 0.2mV
- Phase Shift: 1 to 10A 2°, 10 to 100A <0.7°, 100 to 1200A 0.5% of Reading
- Frequency Range: 30Hz to 50kHz, current derating above 1kHz
- Maximum Conductor Size: 2.05 inches (52mm)
- Jaw Opening: 2.25 inches (57mm)
- Dimensions: 4.37 x 8.50 x 1.77 inches (111 x 216 x 45mm)
- Weight: 1.21 lbs (550g)
- Operating Temperature: -14°F to 122°F (-10°C to 50°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Safety Standards: Conforms to EN 61010, 600V CAT III, UL approved for Canada and U.S.
- Material: Handles Polycarbonate + ABS, jaws Polycarbonate
- Input: 5 ft (1.5m) lead with banana plugs
- Load Impedance: 5Ω max
Buy the Buy Industrial Current Probe Part Number SR704 Online
Order the SR704 AC current probe online today to enhance your power measurement capabilities. Its large jaw opening, high accuracy, low phase shift, and broad frequency response make it ideal for power quality analysis and waveform diagnostics. Designed for safety and ease of use, it easily clamps onto conductors up to two 500 kcmil cables, suitable for industrial and utility applications. With a 5-foot lead, UL and CE approval, and ergonomic design, it ensures reliable performance in demanding environments. Purchase online now for fast delivery and professional-grade measurements.
Get SR704 current probe today—designed for precise power quality and waveform measurements with easy clamp access and reliable safety standards.
