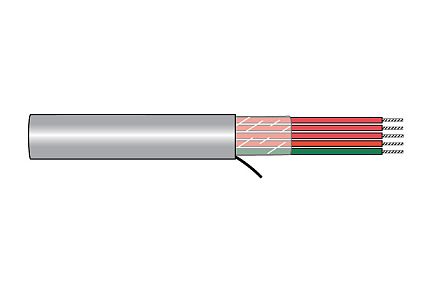

ALPHA WIRE 65204CYSL005 Flexible Control Cable
The ALPHA WIRE 65204CY SL005 is a highly flexible control cable engineered for demanding applications requiring both durability and signal integrity. Constructed with 12 AWG bare copper conductors, insulated with PVC and shielded with a tinned copper braid, this cable provides excellent protection against electromagnetic interference. Its oil-resistant PVC jacket ensures longevity in harsh environments, while its flexible design allows for dynamic movement. Compliant with RoHS and REACH regulations, the 65204CY SL005 is ideal for use in factory automation, robotics, and other industrial control systems where reliable performance is critical.
ALPHA WIRE 65204CYSL005 Flexible Control Cable Specifications:
- Component 1: 1 X 4 COND
- Conductor: 12 (65/30) AWG Bare Copper
- Insulation: 0.022" Wall, Nom. PVC
- Print: ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND INVERTED
- Color(s) (Cond): BLACK #1, BLACK #2, BLACK #3, YELLOW/GREEN
- Cabling: 4 COND Cabled
- Twists: 3.0 Twists/foot (min)
- Orientation: Components to be arranged from INSIDE LAYER to OUTSIDE LAYER
- Jacket: 0.055" Wall, Nom.,PVC, Oil Resistant
- Jacket Separator: Tissue Tape, 25% Overlap, Min.
- Shield: Tinned Copper BRAID Shield,85% Coverage, Min.
- Jacket (2nd): 0.066" Wall, Nom.,PVC, Oil Resistant
- Color(s) (Jacket): SLATE
- OA Shield DCR: 1.73 Ω/1000ft @20°C, Nominal
- Conductor DCR: 1.63 Ω/1000ft @20°C, Nominal
- Capacitance: 56 pF/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 101 pF/ft @1 kHz, Nominal
- Inductance: 0.16 µH/ft, Nominal
- Temperature Range: -40 to 90°C(static), -5 to 90°C (dynamic)
- Bend Radius: 5X Cable Diameter(static), 5X Cable Diameter(dynamic)
- Pull Tension: 218 Lbs, Maximum
- Voltage Rating: 600 VRMS
- UL Style: AWM/STYLE 2587
- CSA International: C(RU) AWM I/II A/B
- CE: EU Low Voltage Directive 2014/35/EU
- RoHS Compliant: Complies with EU Directive 2011/65/EU and amending Directive 2015/863/EU
- REACH Compliant: Does not contain SVHC in excess of 0.1% mass
Buy the 65204CY SL005 ALPHA WIRE Flexible Control Cable | myMectronic
Purchase the ALPHA WIRE 65204CY SL005 Flexible Control Cable securely and efficiently for your industrial needs.
