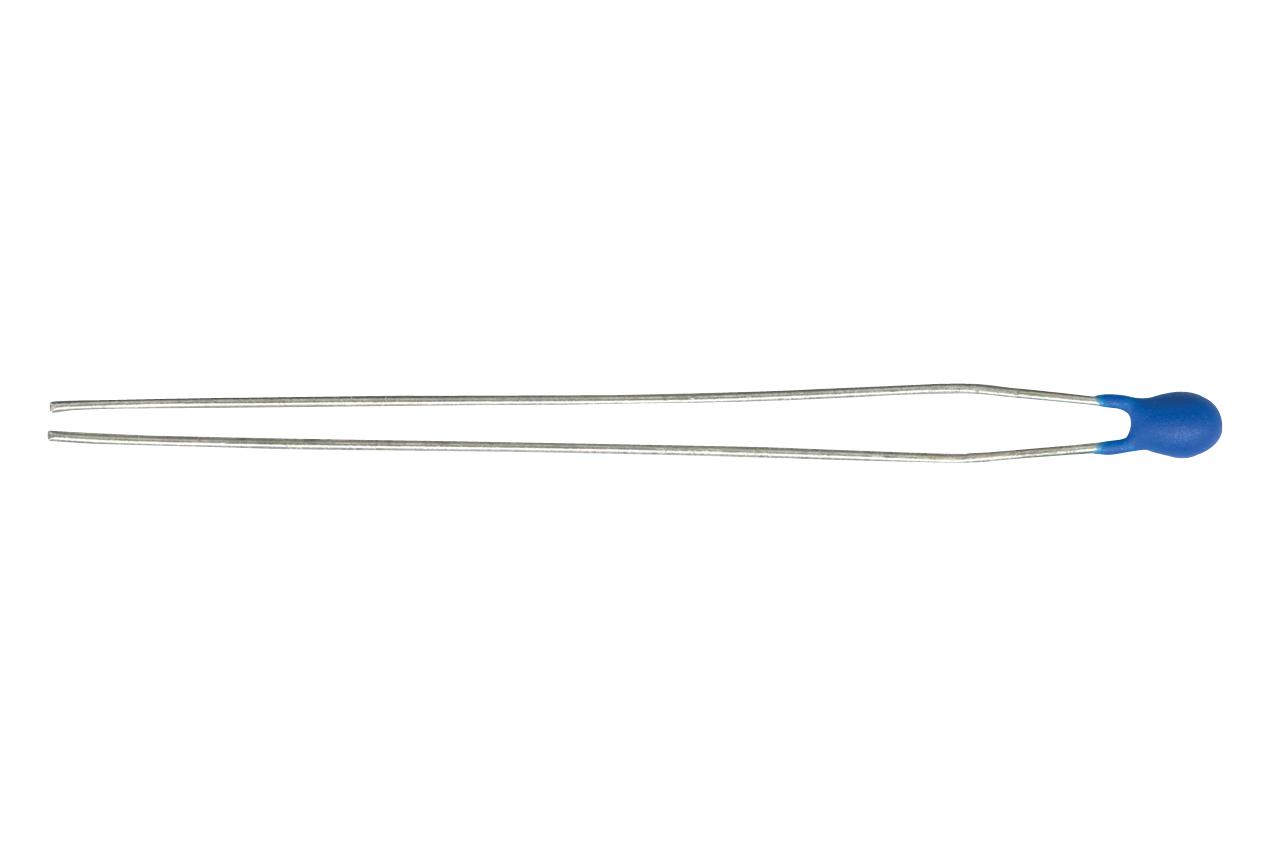

AMPHENOL ADVANCED SENSORS NK502C1R10 NTC Thermistor
This NTC thermistor is epoxy-coated with solder-coated wires, designed for precise temperature measurement, control, and compensation applications. It features tight resistance and B value tolerances, operates up to 311°F (155°C), and offers excellent stability. Its small body diameter ensures fast response times, making it ideal for automotive, HVAC, and white goods. Available in bandoliered or loose-packed options, it includes various resistance and temperature configurations to meet diverse industrial needs, all RoHS compliant for environmentally responsible manufacturing.
AMPHENOL ADVANCED SENSORS NK502C1R10 NTC Thermistor Specifications:
- Material: Epoxy-coated chip with solder-coated wires
- Maximum Operating Temperature: 155°C (311°F)
- Minimum Operating Temperature: -40°C (-40°F)
- Resistance Tolerance: ±1%
- B Value Tolerance: +1%
- Thermal Time Constant: 15 seconds (cooling), 2.45 seconds (ambient change)
- Dissipation Factor: 2.2 mW/K
- Mass: 0.18 g
- Dimensions: 0.27 in (7 mm) max, 0.0975 in (2.5 mm) nom, wire length 12 mm to 40 mm
- RoHS Compliant
- Packaged in loose or bandoliered options (5,000/box or 10,000/reeel)
Buy the Thermometrics Series NK NTC Thermistor: NK502C1R10
Purchase the Thermometrics NK502C1R10 thermistor online today and ensure high accuracy in temperature measurement with fast response times. This epoxy-coated chip thermistor, suitable for automotive, HVAC, and white goods applications, features tight resistance and B value tolerances. Its small size allows quick detection of temperature changes, making it ideal for demanding environments. Available in bandoliered or loose-packed options, this RoHS-compliant component offers excellent stability and durability, giving your projects reliable thermal sensing performance.
Buy Thermometrics NK502C1R10 now and experience unmatched reliability and precision temperature sensing for your industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NK502C1R10?
You can click on the BUY or RFQ button to purchase NK502C1R10 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NK502C1R10?
You can download the NK502C1R10 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NK502C1R10?
AMPHENOL ADVANCED SENSORS
