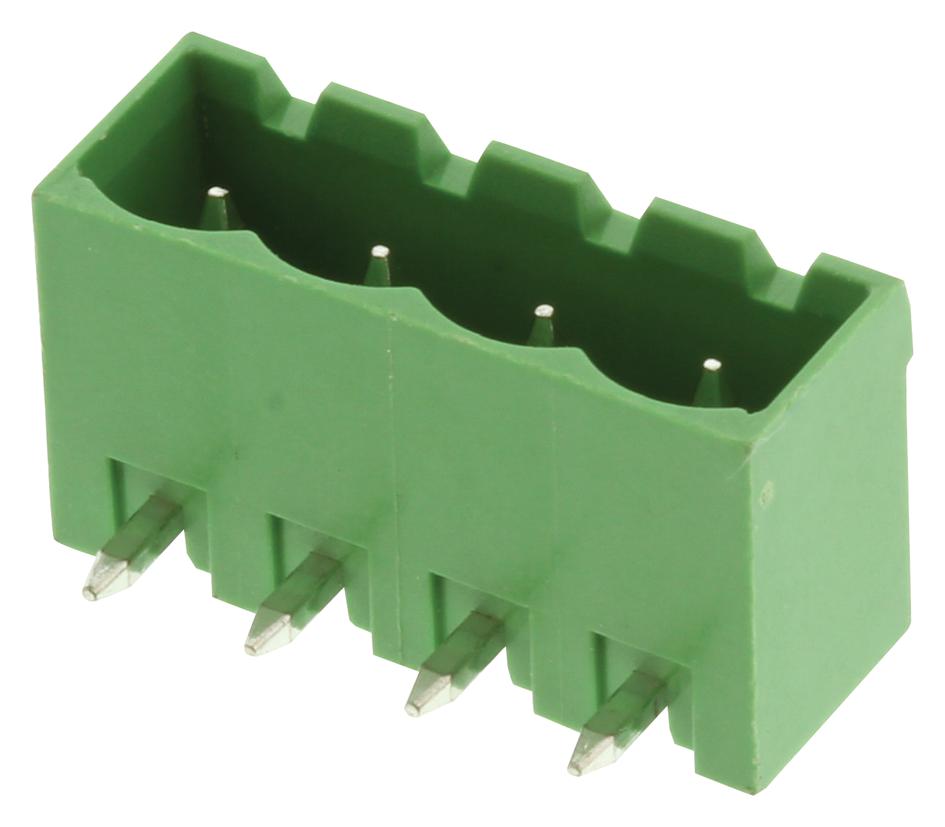

AMPHENOL ANYTEK 20020110G041A01LF Terminal Block
This terminal block series offers various configurations with 2 to 24 poles, featuring adjustable dimensions, corrosion-resistant copper alloy terminals, and thermalplastic housings. Designed for reliable electrical connections, these RoHS compatible terminal blocks support voltages up to 300 VAC and current ratings ranging from 10A to 25A. Suitable for automation, control systems, and PCB mounting, they are available in multiple colors like green, black, blue, and grey. Soldering is recommended at 250°C for 5 seconds, ensuring secure installation and durability in industrial environments.
AMPHENOL ANYTEK 20020110G041A01LF Terminal Block Specifications:
- Number of Poles: 2 to 24
- Pitch: 3.50 mm, 5.00 mm, 5.08 mm options available
- Voltage Rating: 300 VAC
- Current Rating: Up to 25A
- Operating Temperature: -40°C to +115°C
- Housing Material: Thermalplastic resin, UL 94V-0 rated
- Terminal Material: Copper alloy, tin-plated
- Soldering Temperature: 250°C for 5 seconds
- Dimensions: Variable depending on pole count (e.g., for 2 poles: A = (N-1)*3.5 mm + 4.9 mm)
- Color Availability: Green, Black (on request), Grey (on request), Blue (on request)
- Certifications: RoHS compliant, UL Listed
- Packaging: Boxed packaging, detailed packing specifications available
Buy the FCI Series Terminal Block: 06-500 5.00 mm: 20020110
Enhance your electrical assembly with the high-quality terminal block series. Featuring up to 24 poles, RoHS compliance, and durable copper and plastic housings, these terminal blocks support 300VAC and up to 25A current ratings. Ideal for PCB applications, they offer precise dimensions, reliable soldering at 250°C, and a variety of color options like green, black, grey, and blue. Easy to install, certified for safety, and packaged securely, these terminal blocks ensure consistent performance in industrial and automation environments. Purchase online now for fast delivery and trusted quality.
Buy FCI 20020110LF now and experience unmatched reliability and efficient electrical connections for industrial control and automation projects.
Frequently Asked Questions
Where can I buy AMPHENOL ANYTEK 20020110G041A01LF?
You can click on the BUY or RFQ button to purchase 20020110G041A01LF from an authorized AMPHENOL ANYTEK distributor.
How do I troubleshoot issues or seek technical support for part 20020110G041A01LF?
You can download the 20020110G041A01LF datasheet or visit the AMPHENOL ANYTEK website for support.
Who is the manufacturer of 20020110G041A01LF?
AMPHENOL ANYTEK
