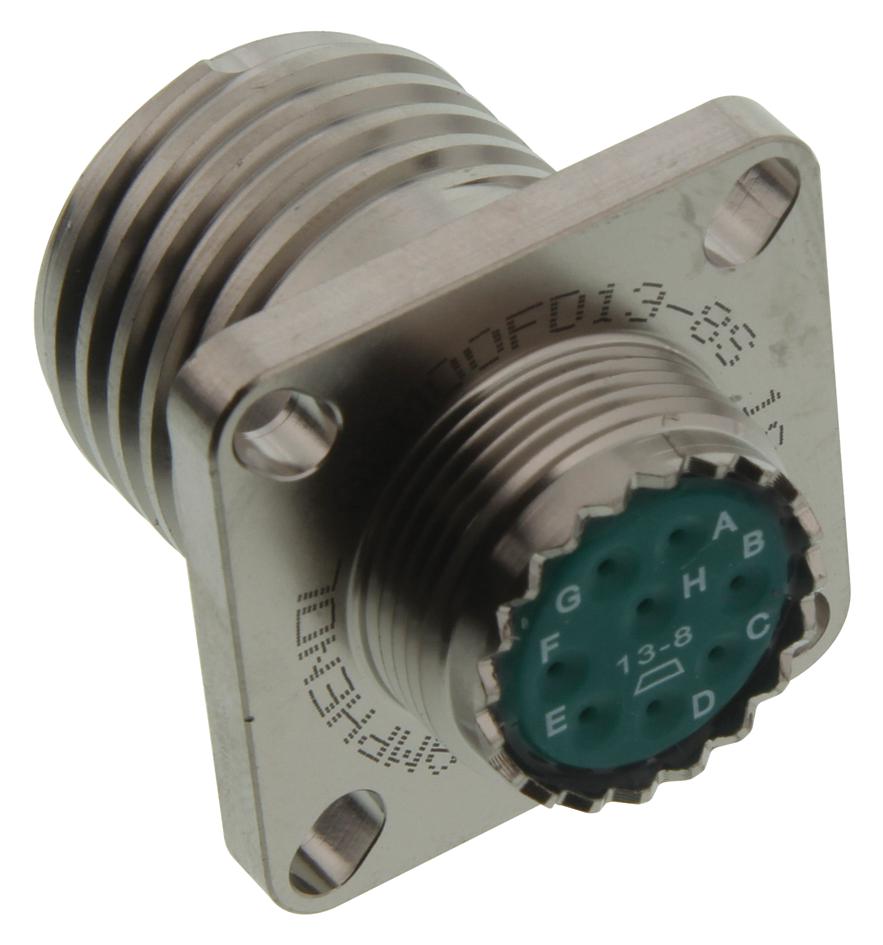

AMPHENOL INDUSTRIAL ALM00FD138S High-Performance Circular Connector
Amphenol's Amphe-Lite M3 is a high-performance circular connector designed for harsh environments, based on MIL-DTL-38999 Series III standards. It features silicone seals for fluid resistance, excellent EMI shielding via metal-to-metal bottoming, and Receptacle and Plug options with various shell sizes and keyway configurations. The connector's robust acme threads enable quick, durable coupling, and its scoop-proof design prevents contact damage during blind mating. Certified for salt spray resistance and RoHS compliant, it is suitable for control systems, aerospace, telecommunication, medical, and high-performance test applications, providing reliable, vibration-resistant connection in demanding settings.
AMPHENOL INDUSTRIAL ALM00FD138S High-Performance Circular Connector Specifications:
- Operating Temperature: -65°C to +125°C
- Mating Life: Minimum 500 cycles
- Insulation Resistance: >100 MΩ in humid conditions
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- EMI Shielding: Minimum 50dB attenuation from 100MHz to 10GHz
- Vibration Resistance: Sine: 10-2000Hz, 294m/s^2; Random: 100-1000Hz, 1g^2/Hz
- Shock Resistance: Peak acceleration of 300g for 3ms
- Contact Sizes: 12 to 22D with respective diameters 0.76mm to 2.40mm
- Flammability: UL94 V-0
- Chemical Resistance: MIL-STD-1344A 1016 F Class
- Electrical: Max voltage 600V, Current ratings vary by contact size
- Material: Anodized aluminum shell, silicone seals, stainless steel contacts
- Connectors are rated IP67 in mated condition, suitable for harsh environments
- Mating cycles: 500 minimum
Buy the Amphenol Series M3 High Performance Circular Connector: ALM00FD138S
Enhance your industrial, aerospace, or telecommunication systems with the reliable Amphenol Series M3 high-performance connector. Designed to withstand harsh environments, it features silicone seals for fluid resistance, EMI shielding, scoop-proof shell design, and quick-mate acme threads for easy installation. Certified for salt spray resistance and RoHS compliant, this connector offers robust performance, high vibration and shock resistance, and IP67 rating when mated. Order online now to secure this durable, vibration-resistant interconnect for critical applications.
Order your Amphenol Series M3 ALM00FD138S high-performance connector today and ensure reliable, durable connections in demanding industrial and aerospace projects.
