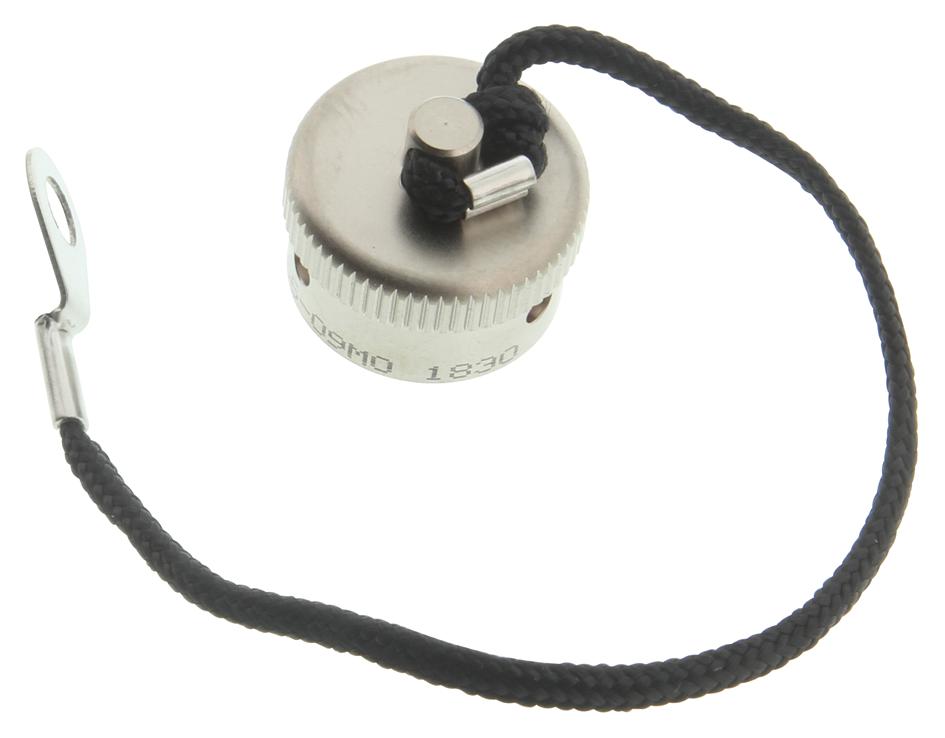

AMPHENOL INDUSTRIAL C1073866609M0 Micro-B Connector
Amphenol's Micro-B Series Connectors are compact, lightweight, and highly reliable industrial connectors designed for demanding environments. Made from durable aluminum with a robust triple bayonet coupling for quick, secure mating, they support high-density insert patterns and multiple mounting options. Features include stamped and formed contacts, high shock and vibration resistance, and IP67 protection when mated with cables and backshells. Suitable for automotive, robotics, telecommunications, industrial instrumentation, security, and test equipment, these connectors meet RoHS and salt spray resistance standards for long-term durability.
AMPHENOL INDUSTRIAL C1073866609M0 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless Steel
- Wave Ring: Stainless Steel
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Test Current: 3A for #22D contact
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: 22 mΩ max
- Mating Cycles: 500
- Vibration: Complies with IEC ElA-364-28D
- Salt Spray Resistance: 500 hours with Gray ZnNi plating
- Certifications: RoHS compliant
Buy the Amphenol Series Micro-B Connector: C1073866609M0
Upgrade your industrial and automation systems with the high-performance Micro-B Connector by Amphenol. Designed for durability, featuring a quick bayonet coupling for fast mating, high-density configurations, and IP67 protection against harsh environmental conditions. Made from lightweight aluminum with corrosion-resistant plating, these connectors support high shock and vibration resistance, ideal for automotive, robotics, telecommunications, and instrumentation markets. Easy to install with multiple mounting options, they meet stringent RoHS standards and ensure long-term reliable electrical connections in demanding environments. Purchase online today for premium quality and performance.
Order your Amphenol Series Micro-B Connector now and ensure reliable, high-performance connections in demanding industrial applications.
