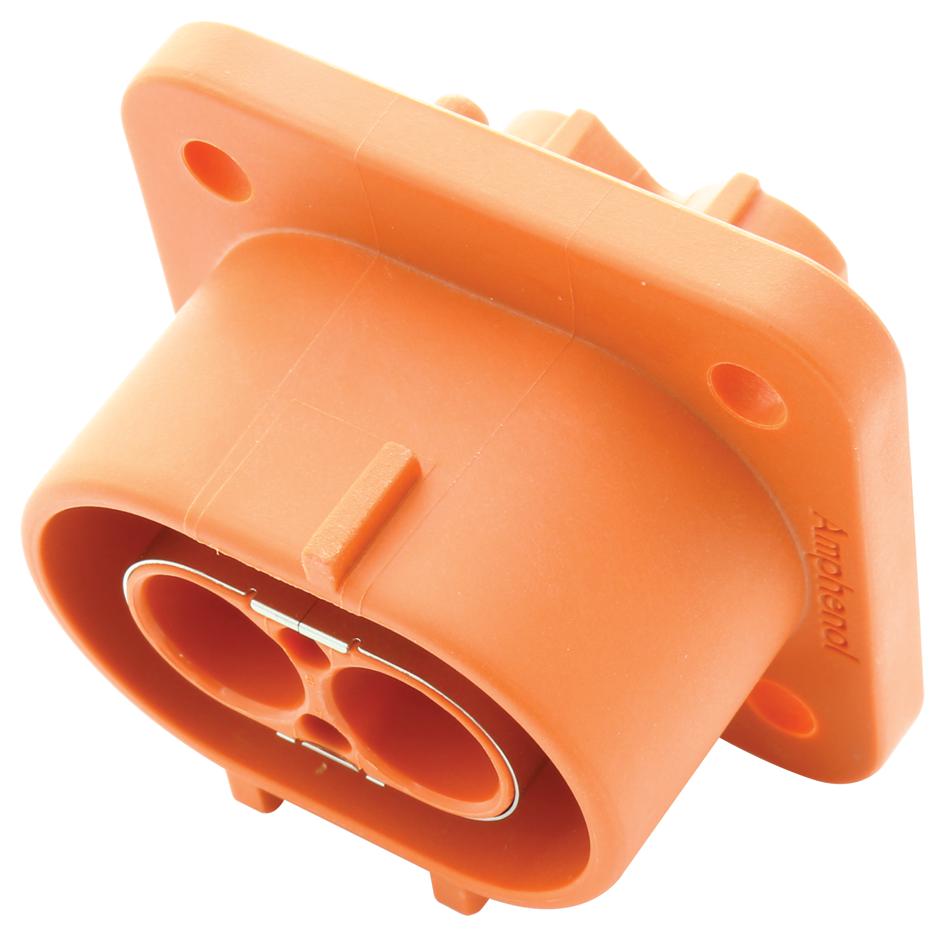

AMPHENOL INDUSTRIAL ELR2Y2 High-Current Power Connector
The ePower-Lite is a lightweight plastic power connector series designed for hybrid and electric vehicle applications. It features 2, 3, and 4-pole options with a robust shell that can withstand temperatures up to 125°C. With patented RADSOK® technology, it offers higher amperage, lower voltage drop, and reduced T-rise, ensuring efficient power transmission. The connector has a compact design, water resistance rated IP67, and durability for at least 100 mating cycles, making it ideal for space-constrained electric vehicle systems requiring reliable, high-performance connections.
AMPHENOL INDUSTRIAL ELR2Y2 High-Current Power Connector Specifications:
- Number of Poles: 2, 3, 4
- Amperage: 70 Amps (2-Pole, 3-Pole, 4-Pole)
- Test Voltage: 3000 VAC RMS at sea level
- Operating Temperature: -40°C to 125°C
- Operating Voltage: 800V VAC
- Waterproof Rating: IP67 (mated)
- Durability: Minimum 100 mating cycles
- Contact Size: 3.6mm/#20, 3.6mm/#16
- Mating/Un-mating Force: Low
- Shell: Plastic, water-proof, shielded options
- Flammability: UL 94V-0
- Certifications: IEC 60529, IP67
- Mounting Torque: M4: 4-6 N·m
- Connection Type: Electrical receptacle and plug with HVIL options
- Voltage Rating: 800V VAC
Buy the Amphenol Series ePower-Lite Power Connector: ELR2Y2
Order the Amphenol ePower-Lite power connector today through our online store and ensure your electric vehicle's power system is connected with a high-quality, durable, and waterproof solution. Designed for rugged EV applications, this connector offers high amperage capacity, low mating force, and reliable performance even in extreme temperatures up to 125°C. Its compact design saves space, while IP67 waterproofing guarantees safe operation in challenging environments. Perfect for hybrid and electric vehicle manufacturing, this connector combines performance, durability, and ease of installation for seamless integration.
Buy Amphenol ELR2Y2 power connector now and experience unmatched reliability, high current capacity, and IP67 waterproof protection for electric vehicle systems.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL ELR2Y2?
You can click on the BUY or RFQ button to purchase ELR2Y2 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part ELR2Y2?
You can download the ELR2Y2 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of ELR2Y2?
AMPHENOL INDUSTRIAL
