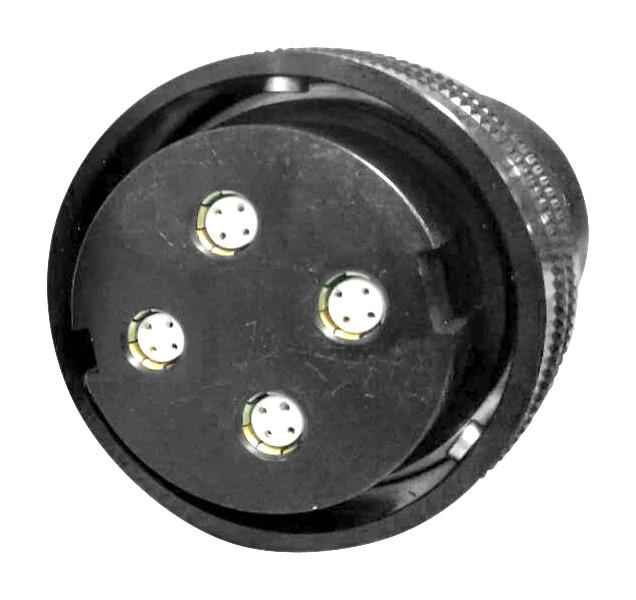

AMPHENOL INDUSTRIAL QX420S100 Industrial Cable Assembly
This industrial cable assembly features a reliable GT Quadrax connection system designed for high-performance and durability in demanding environments. It includes plug, receptacle, socket, and pin components assembled with precise crimping and installation instructions. The assembly utilizes robust grommets, ferrules, and shells for secure connections, ensuring consistent electrical contact and mechanical stability. Ideal for industrial applications requiring secure, high-quality signal and power transmission, this assembly complies with industry standards and provides easy assembly and maintenance for complex systems.
AMPHENOL INDUSTRIAL QX420S100 Industrial Cable Assembly Specifications:
- Plug and receptacle shells made of durable metal alloy
- Crimp contacts with visual seating inspection holes
- Grommets and ferrules for secure wire termination
- Wire insulation stripped by 17.5mm
- Individual wire stripped by 4mm
- Assembly utilizes keyway alignments for correct installation
- Retainer and screws for secure assembly
- Grommet mounted into receptacle with specified torque: 39.5-53.6 Nm depending on part number
- Includes detailed instructions for wire preparation, contact crimping, and assembly
- Compatible with crimp tools or equivalent for secure connection
- Dimensions and specifications calibrated for industrial use
- High-quality materials with UL and industry certifications
- Suitable for signal and power transmission in manufacturing and automation systems
Buy the Amphenol QX420S100 – Reliable GT Quadrax for Industrial Applications
Purchase the Amphenol QX420S100 industrial cable assembly online today and benefit from quick delivery and expert support. Designed for industrial environments, this high-performance connector system ensures dependable signal and power transmission with secure crimped contacts, robust grommets, and compliant certifications. Easy to assemble using standard crimp tools, it features detailed instructions for wire preparation, contact crimping, and final assembly. Maximize your system reliability by choosing this durable, industry-standard cable connection solution for manufacturing, automation, and control applications.
Buy Amphenol QX420S100 now and experience unmatched reliability and performance with high-quality industrial cable assemblies.
