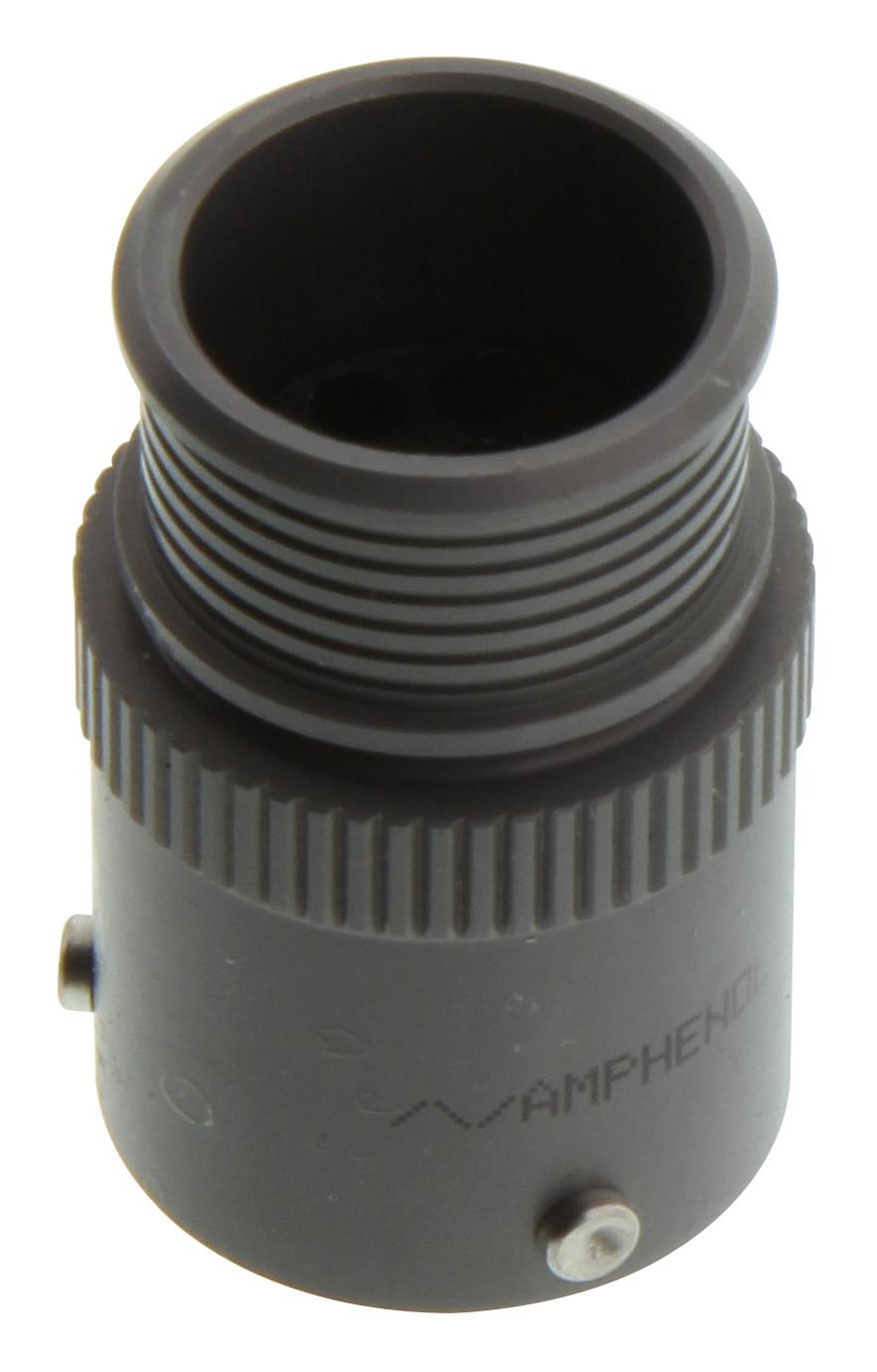

AMPHENOL INDUSTRIAL MB01HE0910SN072 Micro-B Connector
Amphenol's Micro-B Series Connectors are compact, lightweight circular connectors designed for industrial applications requiring high performance and durability. Featuring an aluminum shell with a robust triple bayonet coupling for quick engagement, they support high-density insert patterns and multiple mounting options including in-line and flange mount configurations. With IP67 protection when mated with a backshell or cable gland, these connectors withstand harsh environments and high vibration. They incorporate stamped and formed contacts, an internal EMI grounding spring for superior shell-to-shell conductivity, and are suitable for automotive, automation, instrumentation, robotics, security, and telecommunications markets. Their RoHS compliance and salt spray resistance ensure long-lasting reliability in demanding conditions.
AMPHENOL INDUSTRIAL MB01HE0910SN072 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 with Cable Gland or Backshell, IP54 with heat shrink
- Test Current: 3A (for #22D contacts)
- Voltage Rating: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: 22 mΩ max
- Mating Cycles: 500
- Vibration Resistance: In accordance with IEC-364-28D
- Salt Spray Resistance: 500 hours with Gray ZnNi finish
- Operational Temperature: -40°C to 125°C
Buy the Amphenol Series Micro-B Connectors: MB01HE0910SN072
Discover the durability and efficiency of Amphenol Micro-B connectors, ideal for industrial, automotive, and robotics applications. Featuring a lightweight aluminum shell, quick bayonet coupling, and IP67 protection, these connectors provide high density, EMI shielding, and long-term reliability even in harsh environments. With easy crimp contacts, multiple mounting options, and RoHS compliance, they are perfect for modern electrical systems requiring seamless, secure connections. Purchase online now for fast delivery and trusted performance in your critical projects.
Order your Amphenol Series Micro-B high-performance connectors today and ensure reliable, easy-to-mate connections for demanding industrial environments.
