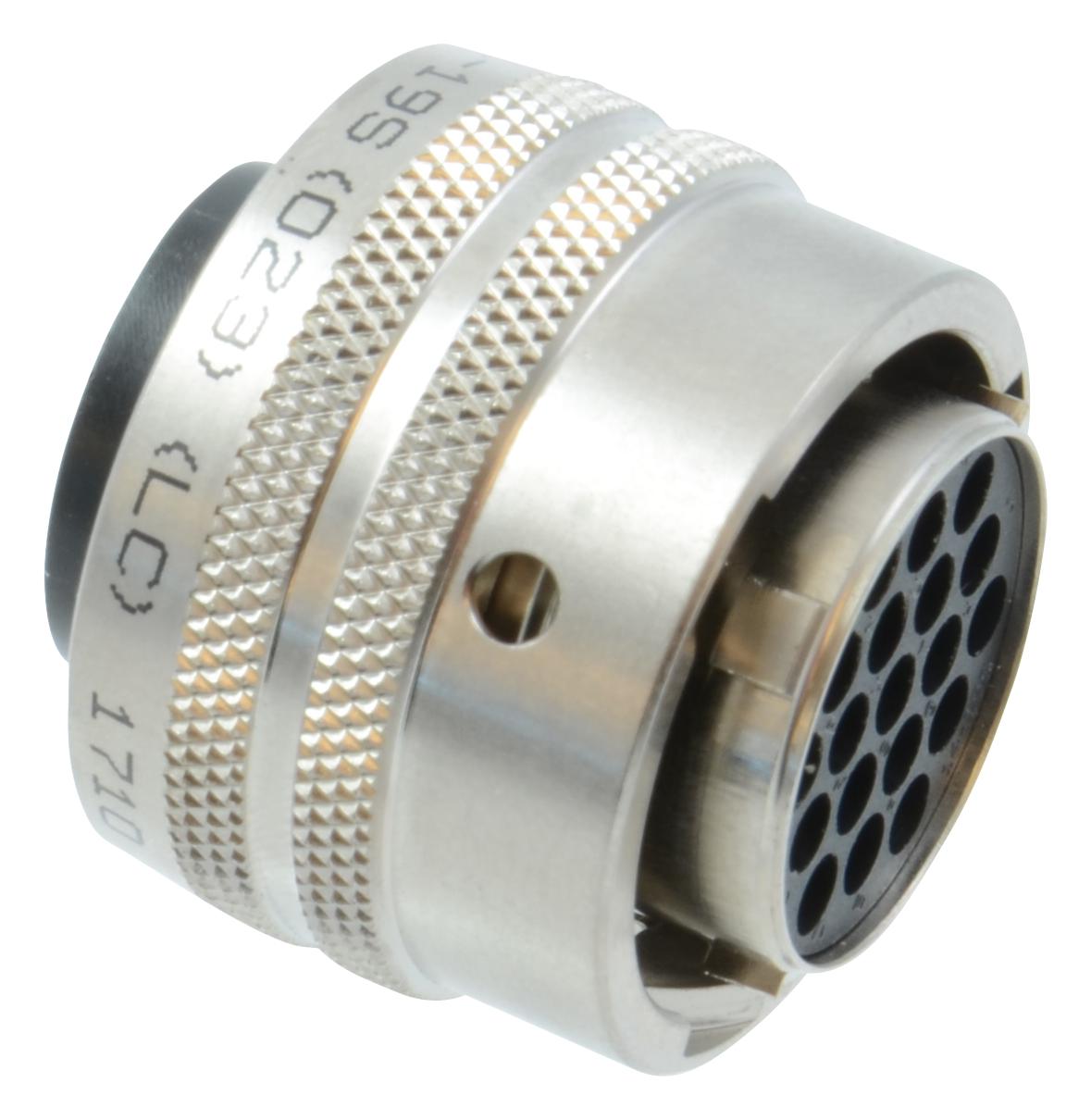

AMPHENOL INDUSTRIAL LPT06SE2041S072LC LPT Series Industrial Connector
The Amphenol Industrial LPT Series connector is a lightweight, aluminum-shell connector based on the MIL-C-26482 Series I standard and the original PT series. It features a standard PT shell with a coupling nut, making it intermateable with PT series connectors. The connector includes three retention tines with stamped and formed crimp contacts, facilitating easy insertion and secure retention. It supports wire gauges from 22 AWG (0.34 mm²) to 12 AWG (3.5 mm²). Designed for quick, positive coupling with a 5-key/keyway mating system, it helps prevent misconnection. The series is available in five shell styles, including box mounting, jam nut, straight plug, wall mounting, and cable connecting configurations. Suitable for applications in automation, process control, commercial vehicles, energy, industrial automation, instrumentation, and power management.
AMPHENOL INDUSTRIAL LPT06SE2041S072LC LPT Series Industrial Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold plated
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Rating: 7.5A (20# contact), 13A (16# contact), 23A/35A with RADSOK® (12# contact)
- Operating Voltage: 500V (T# 250V), 1500V (T# 500V), 2300V (Test Voltage AC)
- Mating Cycles: 500
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting
- Keying System: 5 key/keyway configurations
- Operating Temperature: -40°C to 125°C
- Protection Class: Up to IP67 and IP69K when mated
- Certifications: In process for UL/TUV
Buy the Amphenol Series LPT: Connector: LPT06SE2041S072LC
Purchase the Amphenol LPT Series connector online today to benefit from high-performance, lightweight aluminum construction, versatile shell styles, and secure, quick coupling. Engineered for demanding industrial, automation, and energy applications, it supports wire sizes from 22 AWG to 12 AWG, with insulation and IP67/IP69K protection. Easy to install and highly durable, this connector ensures reliable performance in harsh environments, offering peace of mind for power, instrumentation, and process control systems. Buy now for fast, secure delivery and expert support.
Order your Amphenol Series LPT06SE2041S072LC connector today and ensure reliable connections in harsh environments with quick and secure coupling.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL LPT06SE2041S072LC?
You can click on the BUY or RFQ button to purchase LPT06SE2041S072LC from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part LPT06SE2041S072LC?
You can download the LPT06SE2041S072LC datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of LPT06SE2041S072LC?
AMPHENOL INDUSTRIAL
