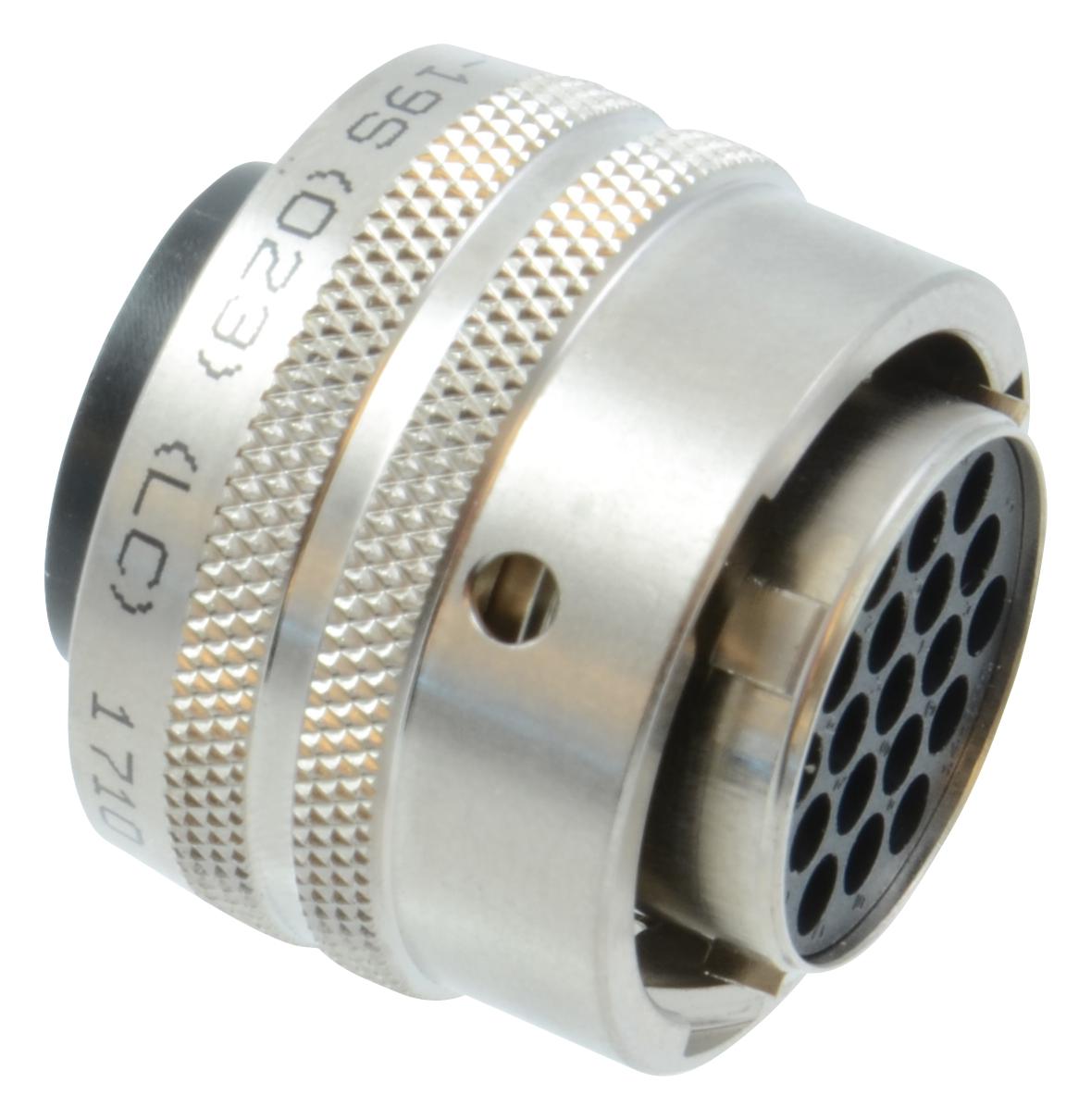

AMPHENOL INDUSTRIAL LPT06SE185S023LC Industrial Connector
Amphenol Industrial's LPT Series is a lightweight, aluminum-shell connector based on MIL-C-26482 Series I and the original PT series. It features a standard PT shell with a coupling nut, making it compatible with PT series connectors. The connector includes three retention tines with stamped and formed crimp contacts, allowing for easy insertion and secure retention. It accepts wire gauges from 22 AWG (0.34mm²) to 12 AWG (3.5mm²) and offers quick, positive coupling with a 5-key/keyway design to prevent mismating. Available in five shell styles, including box mounting, jam nut, straight plug, wall mounting, and cable connecting receptacles. Suitable for applications in automation, process control, industrial, energy, instrumentation, power management, and automotive sectors.
AMPHENOL INDUSTRIAL LPT06SE185S023LC Industrial Connector Specifications:
- Shell Material: Aluminum
- Insert Material: Plastic
- Contact Plating: Tin/Nickel/Gold plated
- Temperature Range: -40°C to +125°C
- Ingress Protection: IP67 & IP69K in mated condition
- Current Rating: 7.5A (20# contact), 13A (16# contact), 23A/35A with RADSOK®
- Operating Voltage: 500V (VDC), 1500V (impulse)
- Test Voltage (AC): 2300V
- Mating Cycles: 500
- Shell Styles: Box mounting, jam nut, straight plug, wall mounting, cable connecting receptacles
- Shell Plating Options: ROHS compliant black zinc, nickel, gray zinc nickel
- Operating Temperature: -40°C to 125°C
Buy the Amphenol LPT06 – Reliable Industrial Connectors for Automation and Power Applications
Enhance your projects with the dependable Amphenol LPT Series connectors. These lightweight aluminum-shell connectors are designed for harsh environments and demanding industrial applications. Featuring corrosion-resistant plating options and IP67/IP69K ingress protection, they ensure reliable operation in extreme conditions. Compatible with a wide range of wire gauges from 22 to 12 AWG, they provide quick, secure bayonet coupling and are ideal for automation, energy storage, and process control systems. Order online now for fast delivery and quality assurance.
Order your Amphenol Series LPT06 connector today and ensure robust, reliable connections for industrial automation, energy, and automotive needs.
