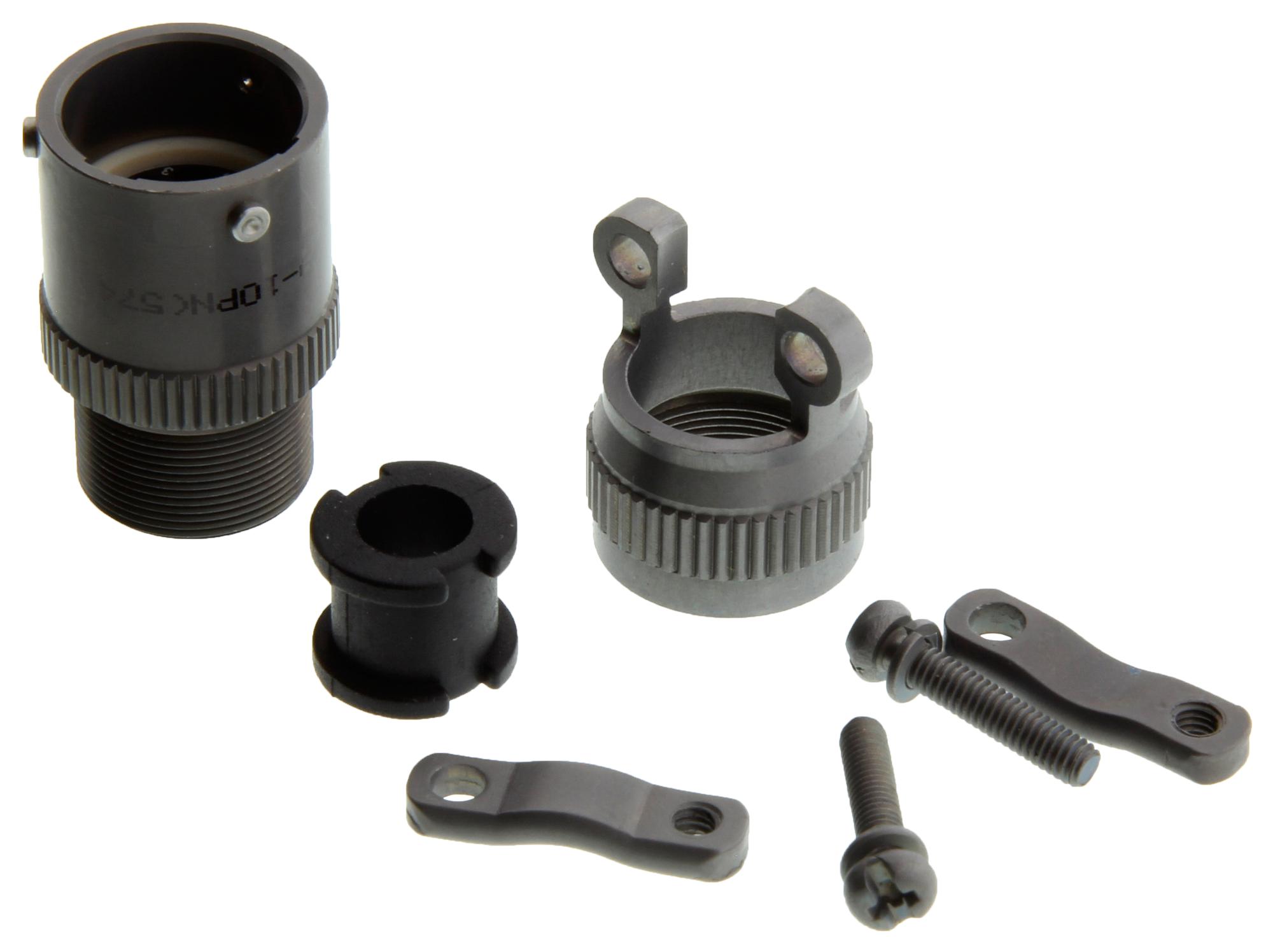

AMPHENOL INDUSTRIAL MB01TA0910PN574 Industrial Connector
The Amphenol Micro-B Series Connectors and Contacts are designed for high-performance electrical applications requiring a compact, lightweight, and reliable solution. Featuring high-density insert patterns and exceptional EMI shielding through shell-to-shell electrical bonding, these connectors are suitable for industrial environments demanding durability and repeatable mating cycles. Constructed with an aluminum shell and utilizing a robust triple bayonet coupling mechanism with a 1/4 turn to mate, they also incorporate stamped and formed contacts and an internal EMI grounding spring for enhanced conductivity. Multiple mounting options, including in-line and 2-hole flange mounts, provide versatile installation suitable for automotive systems, factory automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL MB01TA0910PN574 Industrial Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Material: Copper Alloy
- Contact Plating: Tin/Gold Plated
- Termination: Crimp
- Operating Temperature Range: -40°C to +125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Test Current: 3A for #22D Contact
- Operating Voltage: AC 250V RMS
- Test Voltage: AC 500V RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22 mΩ
- Mating Cycles: 500
- Vibration Resistance: According to ElA-364-28D
- Thermal Shock: According to ElA-364-32D
- Salt Spray Resistance: 500H with Gray ZnNi plating
- RoHS Compliant
Buy the Amphenol MB01TA0910PN574 – Reliable Industrial Connectors for Harsh Environments
Discover the reliable and versatile Micro-B industrial connector from Amphenol, ideal for demanding environments where durability, compactness, and high electrical performance are essential. Featuring an aluminum shell with a triple bayonet coupling mechanism for quick mating and high vibration resistance, the connector supports multiple mounting options including inline and flange mount configurations. Its high-density insert pattern, EMI shielding, and corrosion-resistant plating ensure long-term durability across applications such as automation, automotive, robotics, and telecommunications. Affordable yet rugged, this connector is perfect for modern industrial needs.
Buy Amphenol MB01TA0910PN574 now and experience unmatched reliability and performance in demanding industrial applications.
