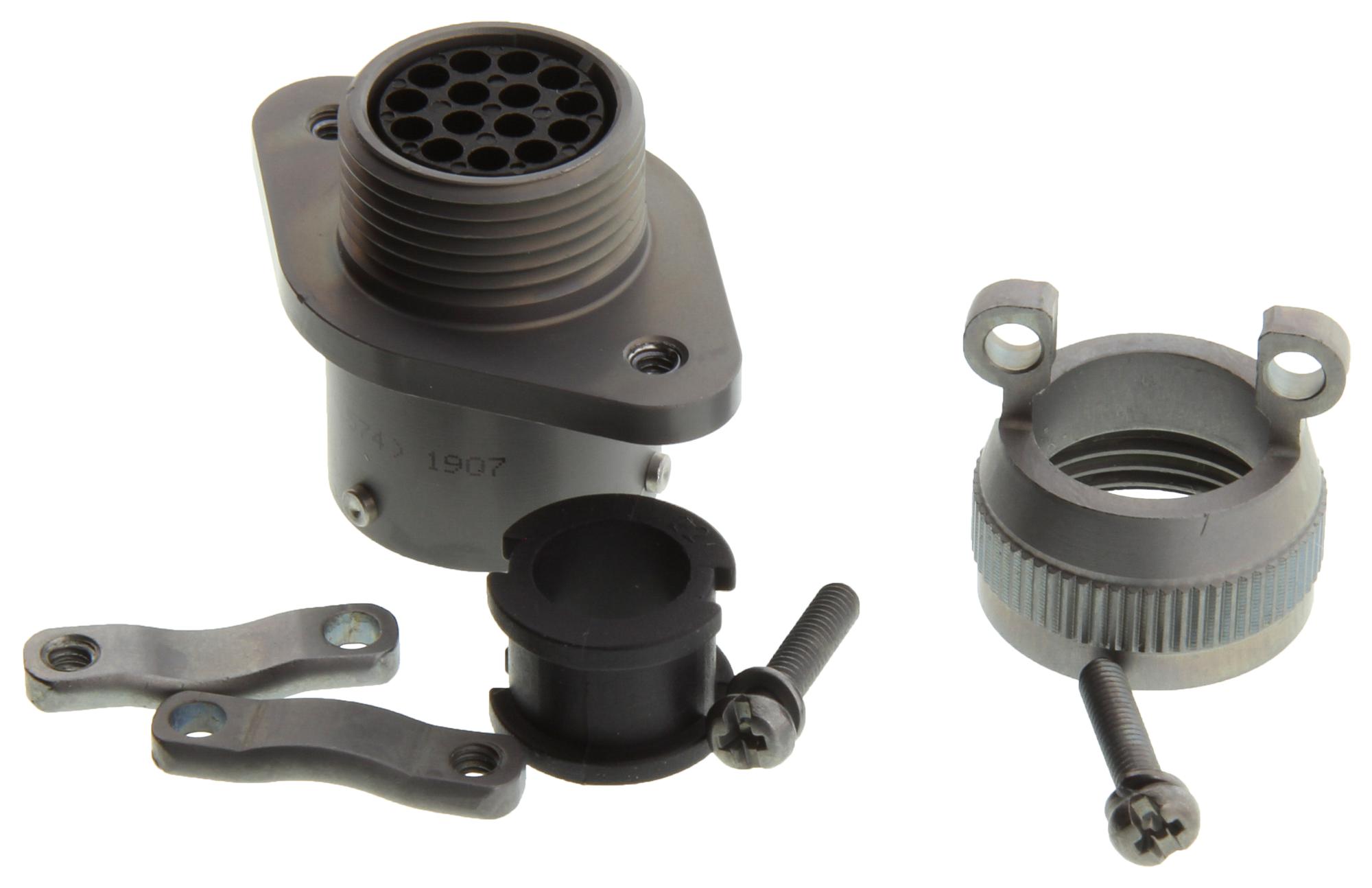

AMPHENOL INDUSTRIAL MB03TA1015PN574 Micro-B Connector
Amphenol's Micro-B Series Connectors and Contacts are designed for industrial applications requiring a compact, lightweight, and high-density connector solution. These rugged connectors feature an aluminum shell with a durable triple bayonet coupling mechanism (1/4 turn) for secure mating and high durability. They offer excellent shell-to-shell electrical shielding for EMI protection, high mating cycle endurance, and various mounting options including in-line and flange configurations. The internal EMI grounding spring ensures optimal shell-to-shell conductivity, making them suitable for automotive, factory automation, industrial, instrumentation, robotics, security, telecommunications, and test & measurement applications.
AMPHENOL INDUSTRIAL MB03TA1015PN574 Micro-B Connector Specifications:
- Shell Material: Aluminum
- EMI-Ring: Copper Alloy
- Retaining Ring: Stainless steel
- Wave Ring: Stainless steel
- Insert Material: Plastic (PA66)
- Contact Plating: Tin/Gold Plated
- Operating Temperature Range: -40°C to 125°C
- Ingress Protection: IP54 with heat shrink, IP67 with cable gland backshell
- Test Current: 3A for #22D contact
- Operating Voltage: 250V AC RMS
- Test Voltage: 500V AC RMS
- Insulation Resistance: 1000 MΩ at 500V
- Contact Resistance: Max 22 mΩ
- Mating Cycles: 500
- Vibration Resistance: Complies with IEC-364-28D
- Salt Spray Resistance: 500 hours (Gray ZnNi) or 48 hours (Nickel)
- Protection Level: Up to IP67 when mated with cable gland
- Mounting Options: In-line, flange
Buy the Amphenol Series Micro-B High-Density Connector: MB03TA1015PN574
Explore the high-performance Micro-B connector series from Amphenol, engineered for industrial applications requiring durability, compact size, and high-density connections. Featuring an aluminum shell with triple bayonet coupling, these connectors ensure quick mating with secure locking, excellent EMI shielding, and high vibration and shock resistance. Suitable for automation, telecommunications, and automotive markets, they can operate at temperatures from -40°C to 125°C, with IP67 ingress protection when used with cable glands. Get your reliable, rugged connector today and enhance your industrial connectivity solutions.
Buy Amphenol Micro-B connector MB03TA1015PN574 now and experience unmatched reliability, high shock and vibration resistance, and versatile mounting options.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MB03TA1015PN574?
You can click on the BUY or RFQ button to purchase MB03TA1015PN574 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MB03TA1015PN574?
You can download the MB03TA1015PN574 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MB03TA1015PN574?
AMPHENOL INDUSTRIAL
