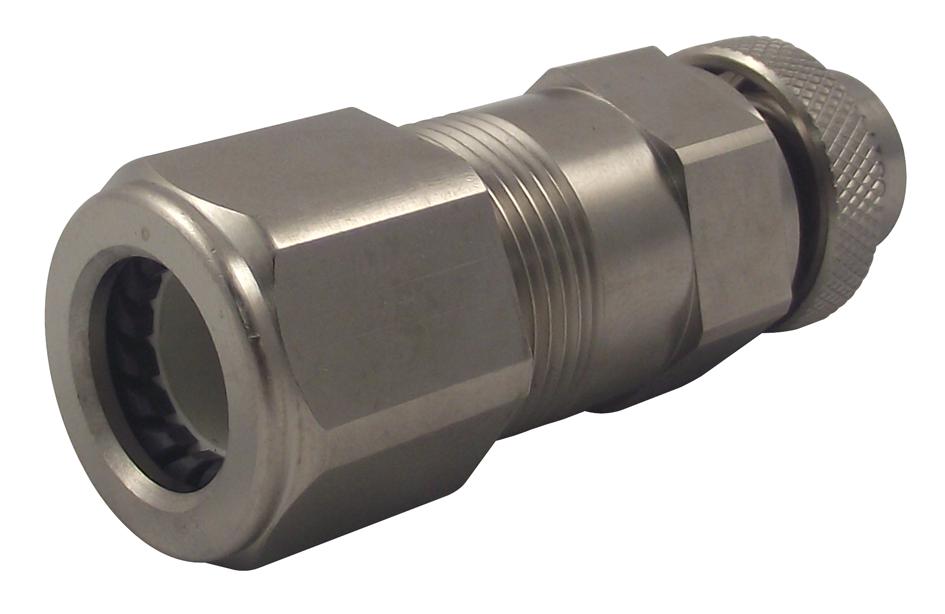

AMPHENOL INDUSTRIAL HDM12PF05B1STM High-Speed Data Connector
The Max-M12 series high-speed data connector is engineered for demanding environments like heavy equipment, rail, and transit systems. It meets IEC 61076-2-101 and SAE J 2839 standards, providing a rugged, shielded connection. Available in plastic or metal, with straight or 90° right-angle options, and circuit patterns of 3, 4, or 5 ways. Features include solder or pin connections for PCB, stand-alone or cable assembly options, and resistance to extreme conditions like high-pressure washdowns. Key specs include a max current of 4A, dielectric withstand voltage of 1000V, insulation resistance over 20 MΩ, and IP67+ rating, suitable for automation, building automation, and logistics.
AMPHENOL INDUSTRIAL HDM12PF05B1STM High-Speed Data Connector Specifications:
- Operating Voltage: Not specified
- Current Rating: Max 4A
- Temperature Rating: Not specified
- Dielectric Withstand Voltage: 1000V
- Insulation Resistance: >20 MΩ
- Contact Resistance: Not specified
- Vibration, Sine & Shock: Not specified
- Durability: Suitable for harsh conditions
- Protection Class: IP67 or higher
- Wire Gauge: Compatible with specified cable sizes
- Cable OD.: Not specified
- Recommended Torque: Not specified
- Connector Retention: Not specified
- Contact Retention: Not specified
- Shell Plating: Not specified
- Dimensions: Not specified
- Material: Plastic or metal (shielded)
- Configuration: Straight or 90° right-angle
- Number of Circuits: 3, 4, or 5-way options
- Standards: IEC 61076-2-101, SAE J 2839
- Approvals: Ruggedized for industrial use
- Application Examples: Automation, building systems, logistics
Buy the Amphenol HDM12PF05B1STM – Reliable High-Speed Data Connectors for Industrial Applications
Order the high-speed data connector today to ensure reliable, rugged connections in heavy equipment, rail, and transit systems. Designed for demanding environments, these connectors feature corrosion-resistant materials, multiple configurations including straight and right-angle options, and circuit patterns of 3, 4, and 5 ways. They support high dielectric withstand voltage up to 1000V, insulation resistance exceeding 20 MΩ, and protection ratings of IP67 or more. Perfect for automation, building automation, and logistics applications, ensuring long-lasting, high-performance data transmission in critical industrial settings.
Get Amphenol HDM12PF05B1STM today—built for precision, durability, and demanding industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL HDM12PF05B1STM?
You can click on the BUY or RFQ button to purchase HDM12PF05B1STM from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part HDM12PF05B1STM?
You can download the HDM12PF05B1STM datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of HDM12PF05B1STM?
AMPHENOL INDUSTRIAL
