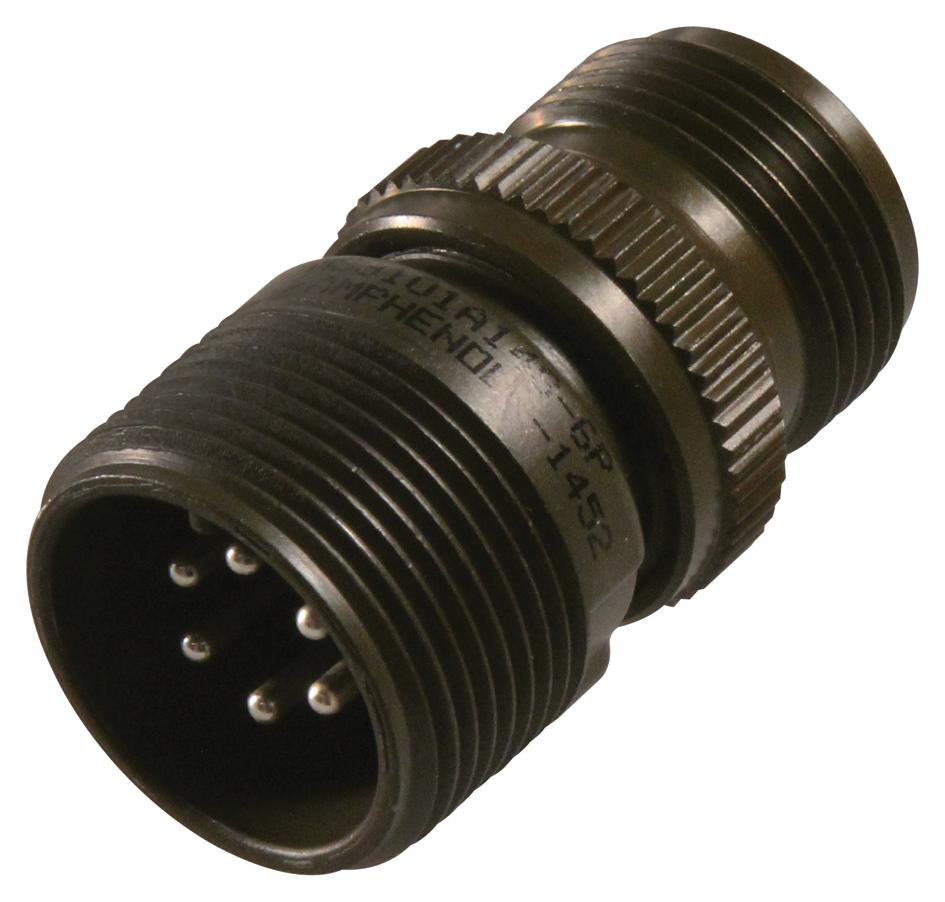

AMPHENOL INDUSTRIAL MS3101A1611S MIL-STD Cylindrical Connector
These are MIL-DTL-5015 standard cylindrical connectors designed for industrial and military applications, offering environmental resistance, various shell sizes, and contact configurations including crimp and solder types. They feature threaded couplings, resilient neoprene inserts for moisture sealing, and single key/keyway shell polarization for easy assembly. Suitable for equipment with stringent durability, high voltage capability up to 3000 VAC, and optional configurations including hermetic, PCB, and high amperage RADSOK® contacts for power applications. Available in multiple classes for general, pressurized, environmental, or lightweight applications, ensuring versatile usage across demanding environments.
AMPHENOL INDUSTRIAL MS3101A1611S MIL-STD Cylindrical Connector Specifications:
- Shell Material: High-grade aluminum alloy
- Plating: Electrically conductive cadmium, olive drab chrome optional
- Contacts: Silver plated copper alloy, crimp or solder, sizes 16-0
- Operating Voltage: Up to 3000 VAC (RMS) at sea level
- Contact Resistance: Low millivolt drop, high current capacity
- Inserts: Resilient neoprene for moisture and vibration resistance
- Thread Sizes: Varieties from 8-28UNEF to 2.2500-16UN
- Shell Sizes: 5 classes, 1 to 104 circuits, with multiple configurations
- Environmental Resistance: Class R, F, E/F for harsh conditions
- Interlock & Seal: Interlock systems, contact seals, gasket shell-to-shell seals
- Power Options: RADSOK high amperage contacts for sizes 0, 4, 8
- Insert Rotations: Normal and alternate positions (W, X, Y, Z)
- Standards: Fully compliant with MIL-DTL-5015, UL recognized
- Additional Features: Hermetic variants, PCB mounting, custom shell styles
Buy the Amphenol Series MS3101A Solder Connector: MS3101A1611S
Purchase your Amphenol Series MS3101A1611S connectors online now to ensure your equipment maintains top-notch durability, environmental resistance, and electrical integrity. These MIL-DTL-5015 compliant connectors offer threaded coupling, resilient neoprene inserts for moisture sealing, and versatile configurations including power, PCB, and hermetic options. With sizes from 8-28 UNF and shell styles suited for military, aerospace, and industrial applications, enjoy fast shipping and trusted quality for your critical projects. Secure your connectors today for long-lasting, high-performance connections that meet stringent specifications.
Order your Amphenol Series MS3101A1611S connectors today and enjoy reliable performance in demanding environments.
