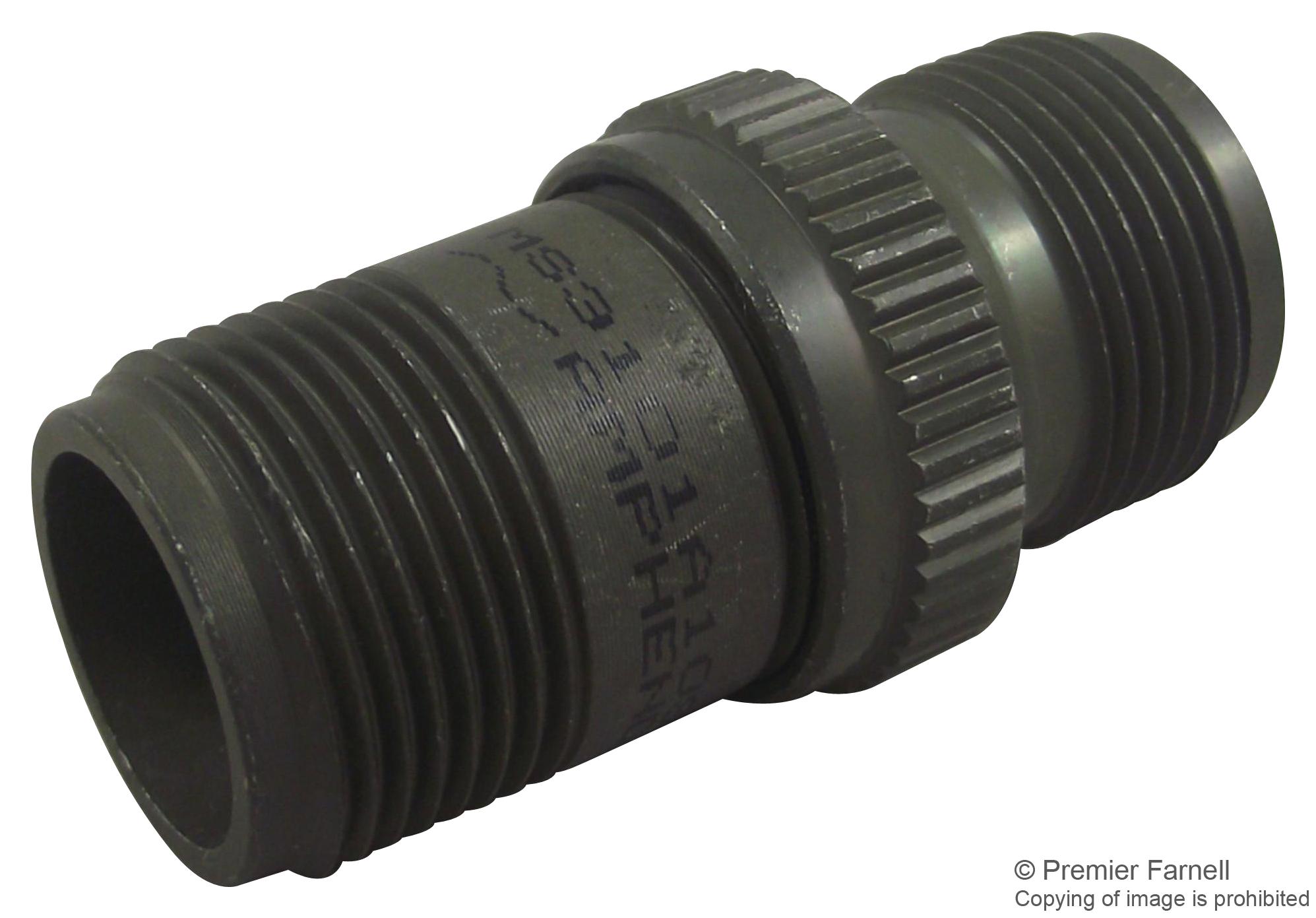

AMPHENOL INDUSTRIAL MS3101A16S1P Cylindrical Connector
The MS3101A16S1P is a durable and environmentally resistant cylindrical connector featuring a solid shell design suitable for general applications. It includes a resilient neoprene insert providing excellent moisture sealing and vibration resistance, ideal for military or industrial environments. The connector supports solder and crimp contact options in size 16, capable of handling up to 35 amps. Threaded coupling with shell polarization ensures secure mating, and multiple insert arrangements accommodate various circuit needs. Its corrosion-resistant finish and robust construction make it suitable for demanding conditions.
AMPHENOL INDUSTRIAL MS3101A16S1P Cylindrical Connector Specifications:
- Shell Size: 16
- Shell Style: box mounting receptacle
- Shell Material: aluminum alloy with cadmium plating
- Contact Size: 16
- Contact Type: solder or crimp
- Current Rating: up to 35 Amps
- Operating Voltage: to 3000 VAC (RMS) at sea level
- Thread: 0.6250-24NEF, class 2A
- Insert Material: resilient neoprene for moisture and vibration resistance
- Coupling: threaded with key/keyway polarization
- Finish: cadmium plated corrosion-resistant
- Temperature Range: -55°C to +105°C
- Insert Arrangements: multiple patterns available (see pages 22-24)
- Sealing: moisture and environmental resistant
- Application: military, industrial, equipment support
Buy the Amphenol Series MS3101 A16S1P: Connector with Neoprene Insert
Order the Amphenol MS3101A16S1P online today to ensure your equipment benefits from high durability, proven environmental sealing, and versatile contact options designed for demanding military and industrial environments. With easy online purchasing, you can quickly secure this reliable connector featuring a corrosion-resistant aluminum alloy shell, neoprene moisture barrier, and threaded coupling for secure, vibration-resistant connections. Ideal for various applications requiring robust performance under extreme conditions, this connector ensures operational integrity and peace of mind in critical systems.
Buy Amphenol MS3101A16S1P now and experience unmatched reliability and robust environmental resistance for your critical applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3101A16S1P?
You can click on the BUY or RFQ button to purchase MS3101A16S1P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3101A16S1P?
You can download the MS3101A16S1P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3101A16S1P?
AMPHENOL INDUSTRIAL
