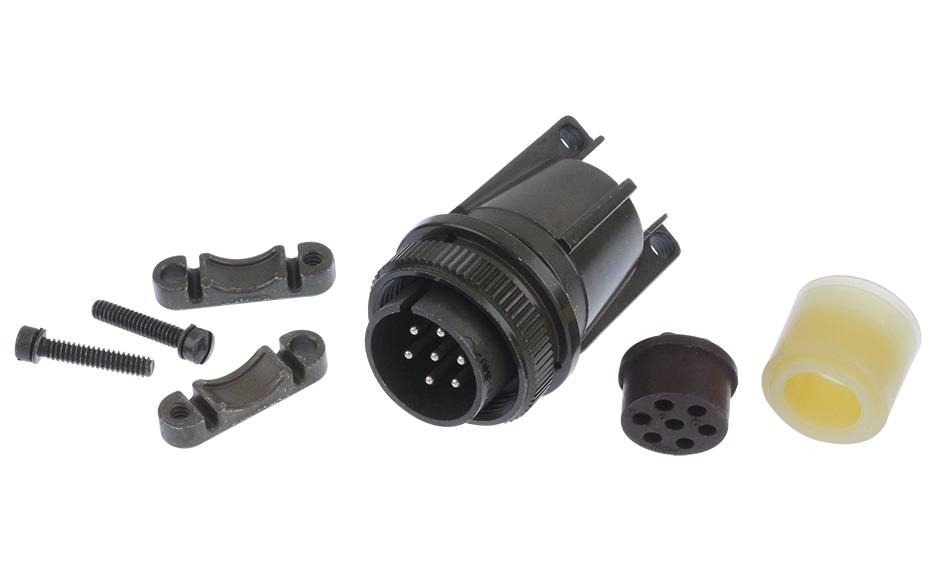

AMPHENOL INDUSTRIAL MS3106E16S1P Military Electrical Connector
The MS3106E16S-1P is a durable, military-grade straight electrical connector with a 16S-1 insert arrangement. Made from high-quality aluminum alloy, it features a cadmium-plated and olive drab chromate coating for corrosion protection. The connector has pin-type, silver-plated copper contacts, offering high electrical performance and robustness. Resilient neoprene inserts ensure moisture sealing, vibration resistance, and high dielectric strength. Designed for demanding environments, it supports applications requiring vibration resistance, environmental protection, and high voltage capability up to 3000VAC at sea level, making it ideal for defense, aerospace, and military use.
AMPHENOL INDUSTRIAL MS3106E16S1P Military Electrical Connector Specifications:
- Shell Material: Aluminium alloy
- Shell Coating: Olive drab chromate over cadmium plating
- Insulator Material: Neoprene
- Contact Material: Copper alloy
- Contact Plating: Silver
- Number of Positions: 7
- Insert Arrangement: 16S-1
- Contact Type: Solder Cup
- Contact Resistance: Aan
- Operating Voltage: Up to 3000VAC at sea level
- Insulator Resistance: > 1000 MΩ according to VG95319 and VG95210 standards
- Test Voltage: 1600 Vrms
- Air and Creepage Paths (Min): 1.4mm
- Ambient Temperature Range: -55°C to +125°C
- Ingress Protection: IP65 according to DIN 40 050
- Salt Spray Resistance: 500 hours
- Mating Cycles: 500
- Coupling Torque - Closing: 5.5 Nm max
- Separation Force per Contact: see catalog
- Wire Stripping Length: 6.2 mm
Buy the Cannon Series MIL-C-5015 Electrical Connector: MS3106E16S1P
Purchase the Cannon MS3106E16S1P online to ensure reliable, high-performance electrical connections in demanding environments. This military-grade connector features corrosion-resistant aluminum alloy shells with olive drab chromate finish. It offers moisture sealing with neoprene inserts, high dielectric strength, and vibration resistance, making it suitable for aerospace, defense, and industrial applications. Supports up to 3000VAC, withstands 500 mating cycles, and provides IP65 sealing for outdoor use. Buy now for durable, safe, and high-quality electrical connections you can trust in extreme conditions.
Get Cannon MS3106E16S1P today—built for environmental resistance, high-voltage performance, and durability in demanding military and aerospace applications.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3106E16S1P?
You can click on the BUY or RFQ button to purchase MS3106E16S1P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3106E16S1P?
You can download the MS3106E16S1P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3106E16S1P?
AMPHENOL INDUSTRIAL
