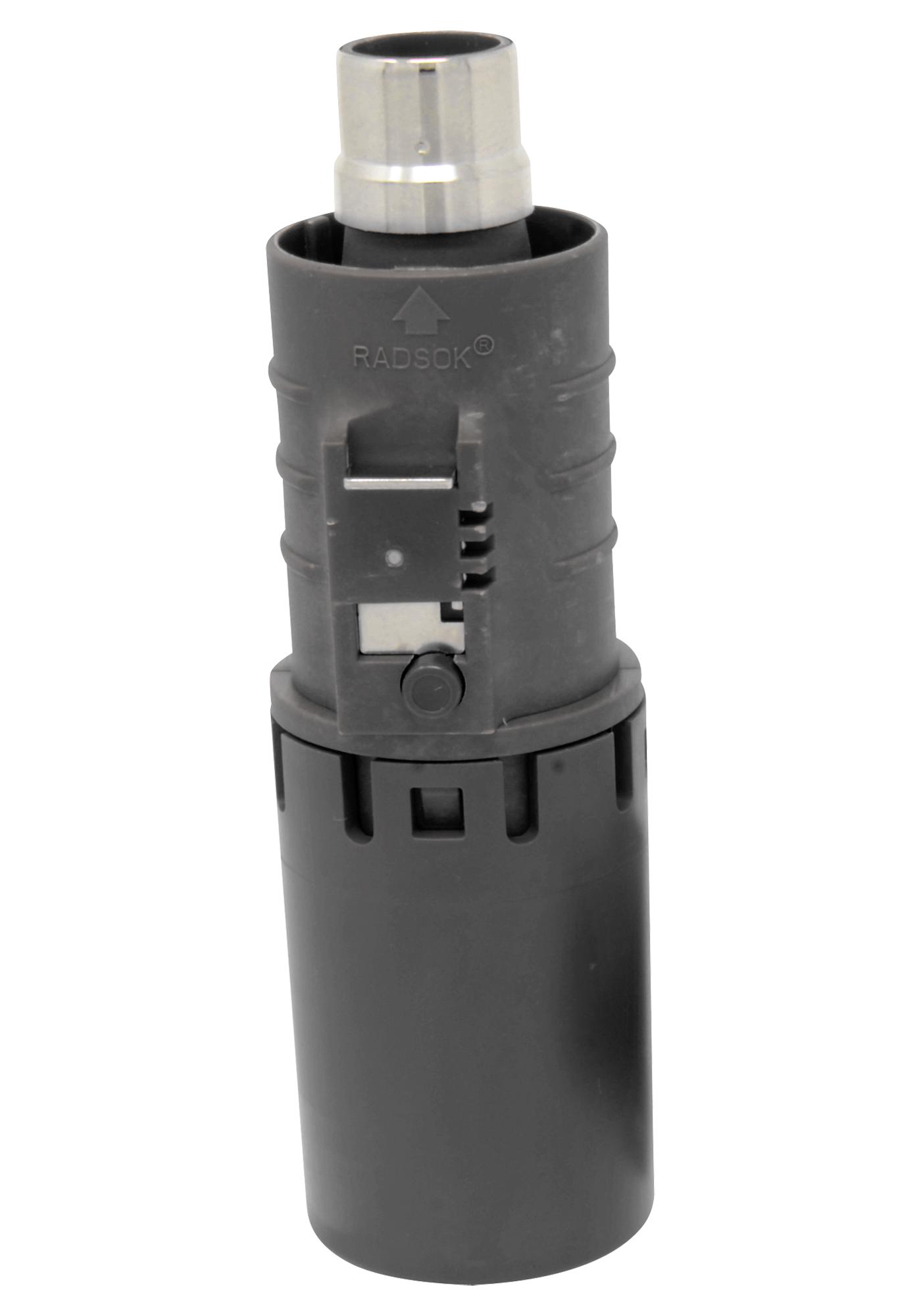

AMPHENOL INDUSTRIAL SLPIPB35BSB2EH Sealed Power Connectors
The SurLok Plus™ compression lugs from Amphenol Industrial are highly reliable, environmentally sealed, and field-installable connectors. They feature a secondary locking system, quick lock, and press-to-release design, enabling easy and secure connections. These compact lugs incorporate the latest R4 RADSOK® technology, ensuring quick mating and robustness. They support industry-standard crimp, screw, and busbar termination options, eliminating the need for specialized torque tools. Suitable for applications including electric vehicles, energy storage, railway systems, automation, medical equipment, and heavy machinery, available in various shell types, colors, and contact sizes, with sealed and EMI options, operating from -40°C to 125°C.
AMPHENOL INDUSTRIAL SLPIPB35BSB2EH Sealed Power Connectors Specifications:
- Flammability: UL 94 V-0
- Current Rating: Up to 400A
- Voltage Rating: Up to 1000VAC/DC
- Contact Sizes: 5.7mm (120A), 8mm (200A), 10.3mm (350A)
- Temperature Range: -40°C to 125°C
- Protection: Sealed IP67, option for non-sealed
- Material: High tensile strength, press-to-release design
- Connections: Crimp, screw, busbar
- Color Options: Orange, Black, Red
- Connector Types: Right-angle plugs, straight plugs, straight receptacles
- Keyway: 60°, 90°, 120°, 150°, 180°, 270°
- Shielding: EMI shielding options available
- HVIL: Optional high-voltage interlock loop
- Operating Environment: Industrial, automotive, automation
- Compliance: UL94 V-0 flammability
- Operating Temperature: -40°C to 125°C
- Backshell Options: With or without backshells
Buy the Amphenol SLPIPB35BSB2EH – Reliable Sealed Connectors for Industrial Applications
Purchase Amphenol SurLok Plus™ compression lug connectors online for reliable, environmentally sealed, and easy-to-install industrial power connections. These connectors feature a quick lock and press-to-release design, supporting up to 400A current and 1000VAC/DC voltage ratings. Suitable for electric vehicles, energy storage, heavy machinery, and automation, they come in various sizes, colors, and configurations, including EMI shielding and HVIL options. Operable from -40°C to 125°C, ensuring durability and performance in demanding industrial environments. Order now for fast delivery and secure, dependable connections.
Get Amphenol SurLok Plus™ connectors today—built for reliable, sealed, high-current industrial connections with easy field installation.
