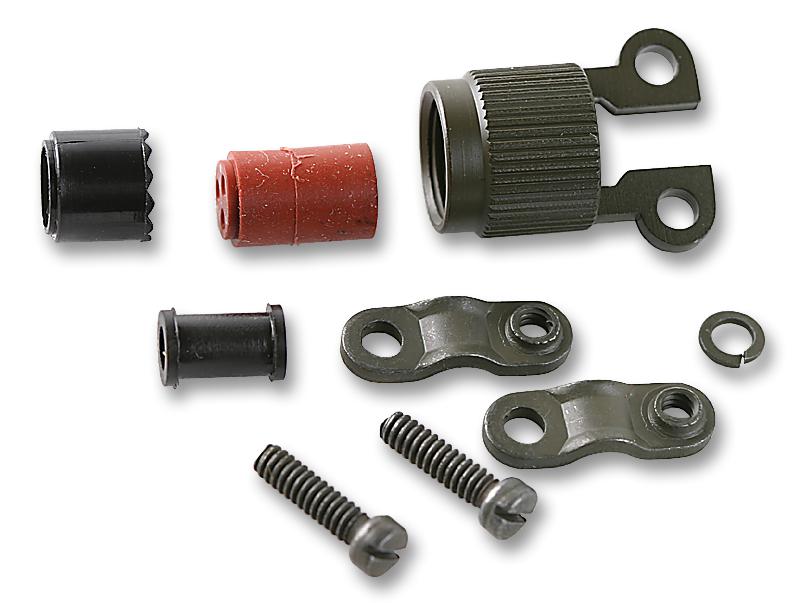

AMPHENOL LTD 62GB5851210S Bayonet Lock Connector
The 62GB Series connectors are miniature bayonet lock connectors compliant with MIL-C-26482E, designed for robust military and industrial applications. Made from brass or stainless steel with corrosion-resistant finishes, these connectors are ideal for environments requiring reliable electrical connections. They feature gold-plated contacts for soldered connections, options for hermetic sealing with glass dielectric, and various shell and insert configurations to meet specific needs. The connectors provide high current ratings up to 45 A, and voltage ratings up to 1500 V, with excellent durability, high temperature tolerance from -55°C to 125°C, and multiple mounting styles including box, flange, and single hole mounting. They are extensively used in military, aerospace, and control systems worldwide.
AMPHENOL LTD 62GB5851210S Bayonet Lock Connector Specifications:
- Material: Brass, stainless steel, nickel iron (hermetic)
- Finishes: Zinc cobalt olive drab, cadmium plating available on request
- Temperature Range: -55°C to +125°C
- Current Ratings: Contact size 12: 23 A, size 8: 45 A (max.), per contact in isolation
- Voltage Ratings: Up to 1500 V (nominal), with altitude derating; 700V at sea level (Rating 1), 1200V (Rating 2)
- Durability: Impact tested, vibration resistant, hermetic and non-hermetic options
- Sealing: Gasket, grommet, and hermetic glass sealed dielectric options
- Connectors compliance: MIL-C-26482E, approved under certificate No. 1713
- Configuration: Multiple insert arrangements, key/keyway polarity, optional rotated inserts
- Mounting Styles: Box, flange, cable, single hole, hermetic, and potting configurations
- Contacts: Gold-plated, suitable for soldering, sizes ranging from 8 to 24
- Physical Dimensions: Shell sizes from 8 to 24, with detailed dimensional specifications provided
- Certifications: Mil Spec, UL listed, corrosion resistance, blast, vibration, shock tested
Buy the Buy Amphenol Bayonet Lock Connector Part Number 62GB5851210S Online
Secure your projects with the high-quality Amphenol 62GB Series connectors, engineered to meet MIL-C-26482 standards. These connectors offer exceptional durability, corrosion resistance, and high current handling up to 45 A. Available in brass and stainless steel, they feature gold-plated solder contacts, versatile mounting options, and hermetic sealing for critical environments. Designed for temperature ranges from -55°C to +125°C, they are perfect for military, aerospace, and industrial applications worldwide. Order online now for fast delivery, proven reliability, and superior performance in demanding conditions.
Order your Amphenol Series62GB 62GB5851210S high-reliability connector today and ensure your military and aerospace applications have the dependable connection they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL LTD 62GB5851210S?
You can click on the BUY or RFQ button to purchase 62GB5851210S from an authorized AMPHENOL LTD distributor.
How do I troubleshoot issues or seek technical support for part 62GB5851210S?
You can download the 62GB5851210S datasheet or visit the AMPHENOL LTD website for support.
Who is the manufacturer of 62GB5851210S?
AMPHENOL LTD
