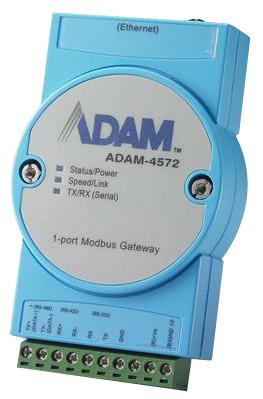

Advantech Automation ADAM4572CE Ethernet Modbus Gateway
The ADAM-4572-CE is a versatile 1-port Modbus gateway designed to connect serial Modbus devices to Ethernet networks seamlessly. Fully compliant with Modbus/TCP standards, it enables efficient integration of serial devices using Modbus/ASCII or RTU protocols with Ethernet-based control systems. Supporting 10/100 Mbps speeds, it allows up to eight clients to access field data simultaneously and can support up to 31 RS-485 serial ports when configured accordingly. Features include surge protection, auto-searching device ID utility, automatic RS-485 data flow control, and easy mounting on DIN rails or panels, making it ideal for industrial automation and process control applications.
Advantech Automation ADAM4572CE Ethernet Modbus Gateway Specifications:
- Compatibility: IEEE 802.3, IEEE 802.3u
- Speed: 10/100 Mbps
- LED Indicators: Power, System Status, Speed, Link/Active, Tx, Rx
- Serial Port Type: RS-232/422/485
- Number of Serial Ports: 1
- Power Input: 10-30 VDC, Plug-in terminal block
- Power Consumption: 2.5 W
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Odd, Even, Mark, Space
- Baud Rate: 50 bps to 921.6 kbps
- Protection: 15 KV ESD protection for all signals
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storing Temperature: -20°C to 80°C (-4°F to 176°F)
- Operating Humidity: 5% to 95% RH
- Dimensions: 70 x 130 x 30 mm
- Panel Cut-out: 70 x 102 x 25 mm
- Enclosure: ABS+PC, wall or DIN-rail mounting
- Certifications: CE, FCC Part 15 Subpart B (Class A)
- Support: Windows XP/Vista/7/8, Windows Server 2003/2008/2012, Windows CE 5.0, Linux
- Includes: Advantech EKI Device Configuration Utility
- Operation Mode: Modbus/RTU slave/master, Modbus/ASCII slave/master
Buy the Advantech ADAM-4572-CE – Reliable Ethernet Modbus Gateway for Industrial Applications
Enhance your industrial automation setup with the Advantech ADAM-4572-CE Ethernet Modbus Gateway. Designed to connect serial Modbus devices seamlessly to Ethernet networks, it supports multiple protocols, up to 8 simultaneous clients, and features surge protection and easy DIN-rail or panel mounting. Ideal for expanding control system capabilities, this gateway ensures reliable data exchange across industrial environments. Easy to configure and built for durability, it offers a cost-effective solution for modern automation and process control needs, ensuring seamless integration of serial devices into Ethernet-based systems.
Buy Advantech ADAM-4572-CE now and experience unmatched reliability and performance in industrial serial-to-Ethernet communication.
